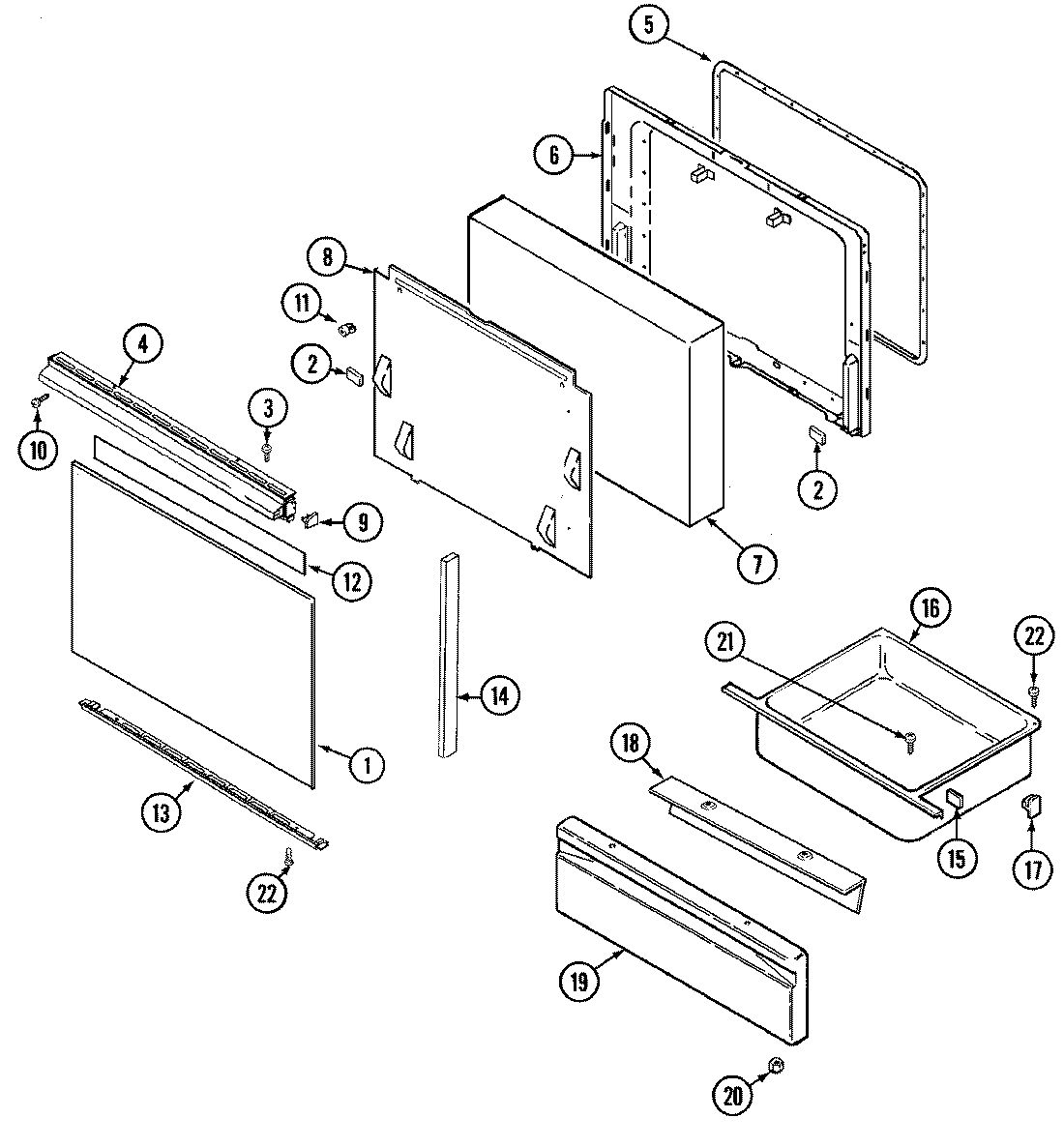

CG3438SRW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 7701P103-60
4	MAY 74003429
4	MAY 7701P144-60
5	GASKT-DOOR OVEN
6	MAY 74003245
6	MAY 2402W210-19
7	MAY 4804F051-60
8	MAY 3601F218-51
9	MAY 7744P075-60
9	MAY 74002540
9	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	MAY 7744P076-60
9	MAY 74002539
10	WP3387230 Whirlpool Screw
11	MAY 7103P045-60
12	MAY 8270P078-60
13	MAY 7744P105-60
13	MAY 74003432
14	MAY 74003430
14	MAY 74002084
14	MAY 7744P055-60
15	MAY 7208P011-60
16	MAY 3405F018-80
17	WP8004P026-60 Whirlpool Support
17	WP488130 Whirlpool Air Conditioner Nut
17	MAY 74003566
18	LINING, DRAWER PANEL
19	MAY 2416F038-62
19	PANEL, DRAWER (WHT)
20	WPW10131078 Whirlpool Nut Assembly
21	WP7101P072-60 Whirlpool Screw
22	SCREW
