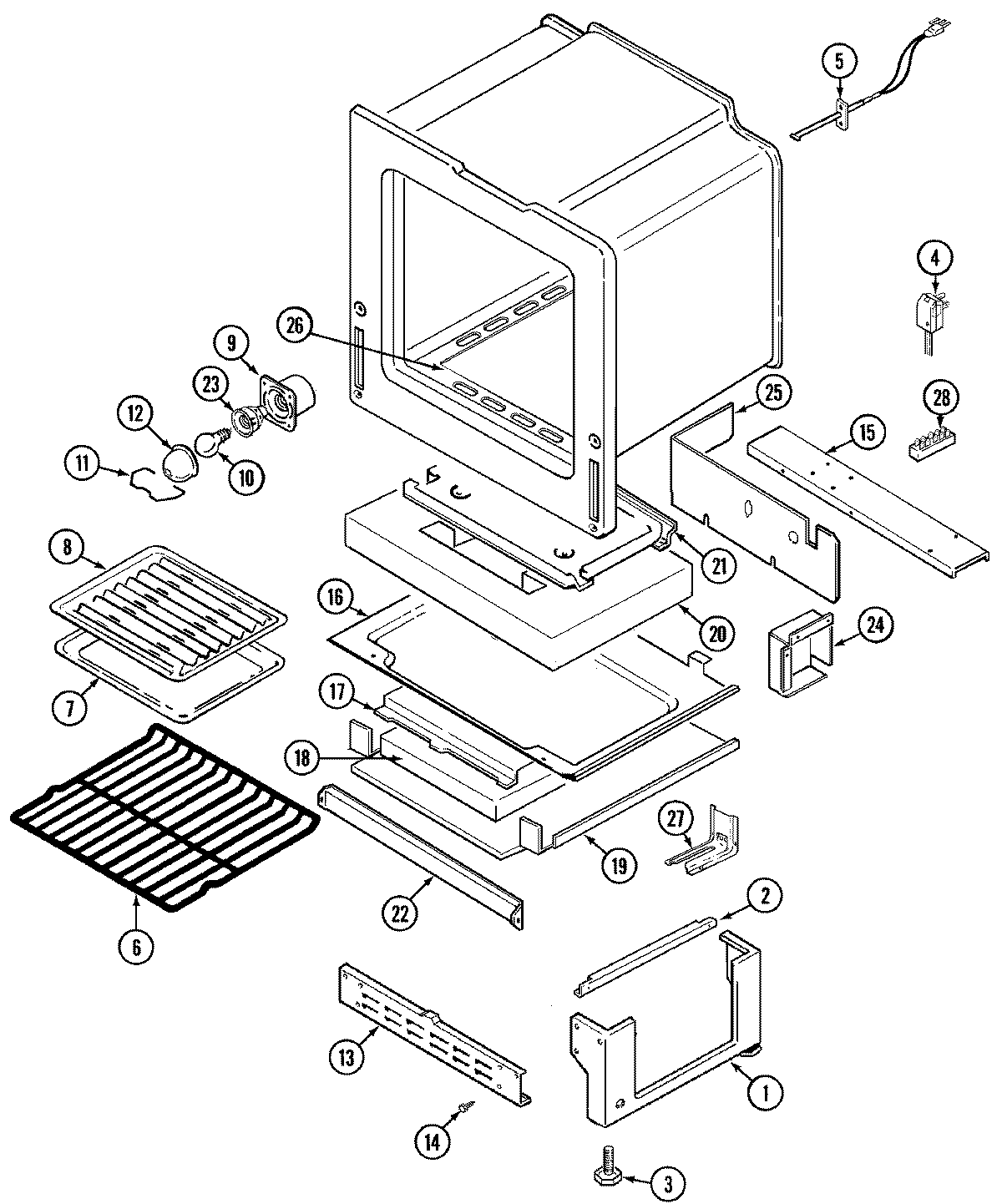

CG34700ADQ 05 – OVEN/BASE – Aparts

CG34700ADQ 05 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 7402P043-60
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
9	MAY 74003388
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74003391
12	MAY 74003389
13	MAY 4020F001-80
14	MAY 7101P290-60
15	MAY 74004167
16	MAY 74004296
17	MAY 3604F204-51
18	INSULATION, DRAWER & SHIELD
19	MAY 3604F205-51
20	MAY 74003503
21	PAN, BAKE BURNER
22	BAFFLE, OVEN FRONT
23	MAY 74003387
23	SCREW
24	MAY 74004499
25	MAY 74003329
26	MAY 5504M004-19
27	MAY 74002311
27	MAY 7101P344-60
28	MAY 7401P037-60
