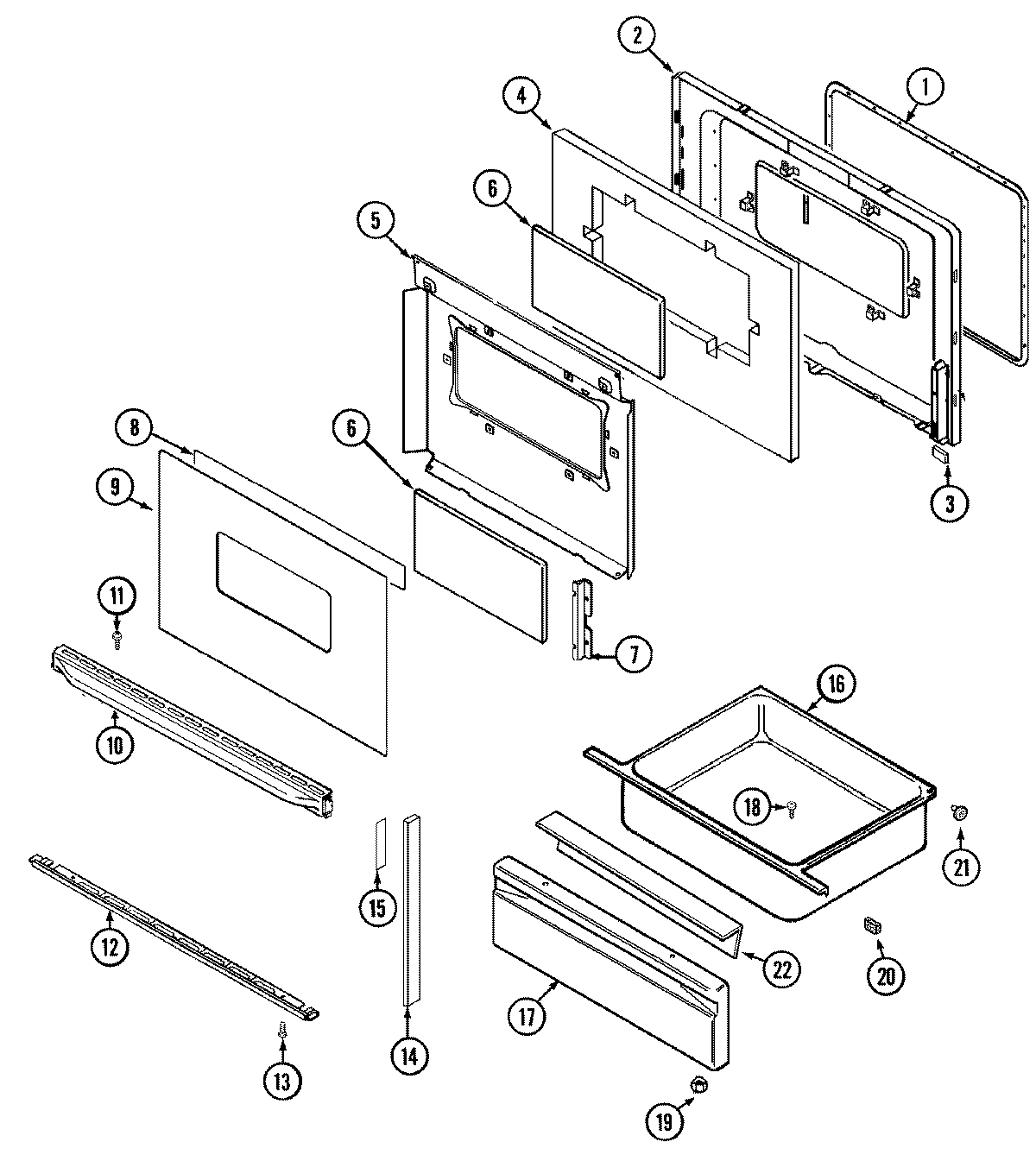

CG34700ADV 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 74003395
10	MAY 74003396
11	WP98008544 Whirlpool Screw Assembly
12	MAY 74003397
13	SCREW
14	MAY 74003398
15	MAY 8270P093-60
16	MAY 74003433
17	PANEL, DRAWER (WHT)
18	MAY 7101P037-60
19	WPW10131078 Whirlpool Nut Assembly
20	WP854334 Whirlpool Air Conditioner Sealing Strip
21	WP488130 Whirlpool Air Conditioner Nut
21	MAY 74003462
22	LINING, DRAWER PANEL
