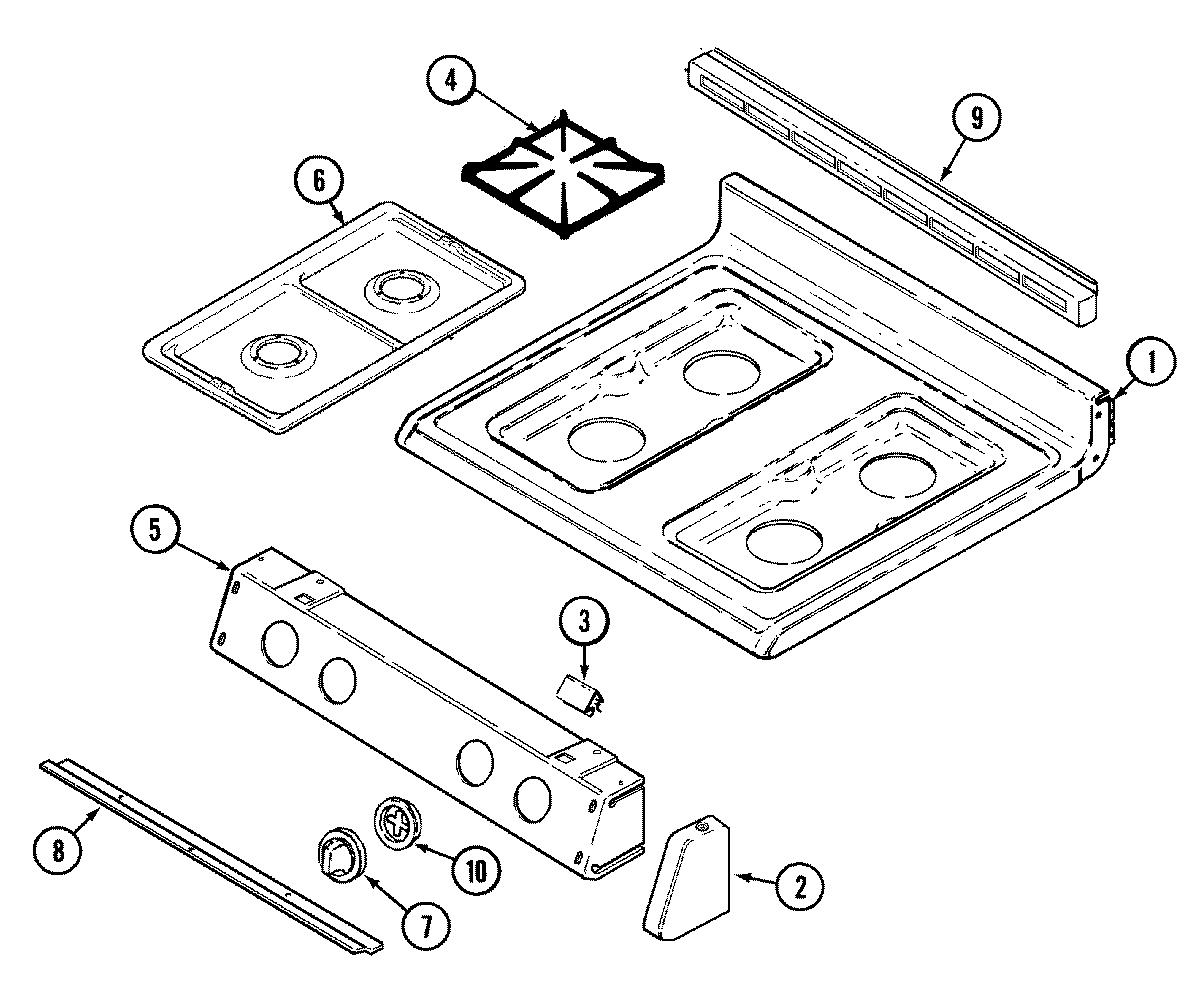

CG34700BDQ 06 – TOP ASSEMBLY

CG34700BDQ 06 – TOP ASSEMBLY

Written by

in

CG34700BDQ 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74004964
1MAY 74001428
2MAY 74003860
2MAY 74004968
2MAY 74004967
3MAY 74004827
4MAY 74003514
5MAY 7101P074-60
5MAY 74006506
5SCREW (8BX3/8-NI)
6MAY 5401A452-60
7MAY 74005685
7MAY 74005040
8MAY 74002447
8SCREW
9MAY 74003520
9SCREW (10ABX1/4P TR ZN)
10MAY 74005039
10MAY 74005435
