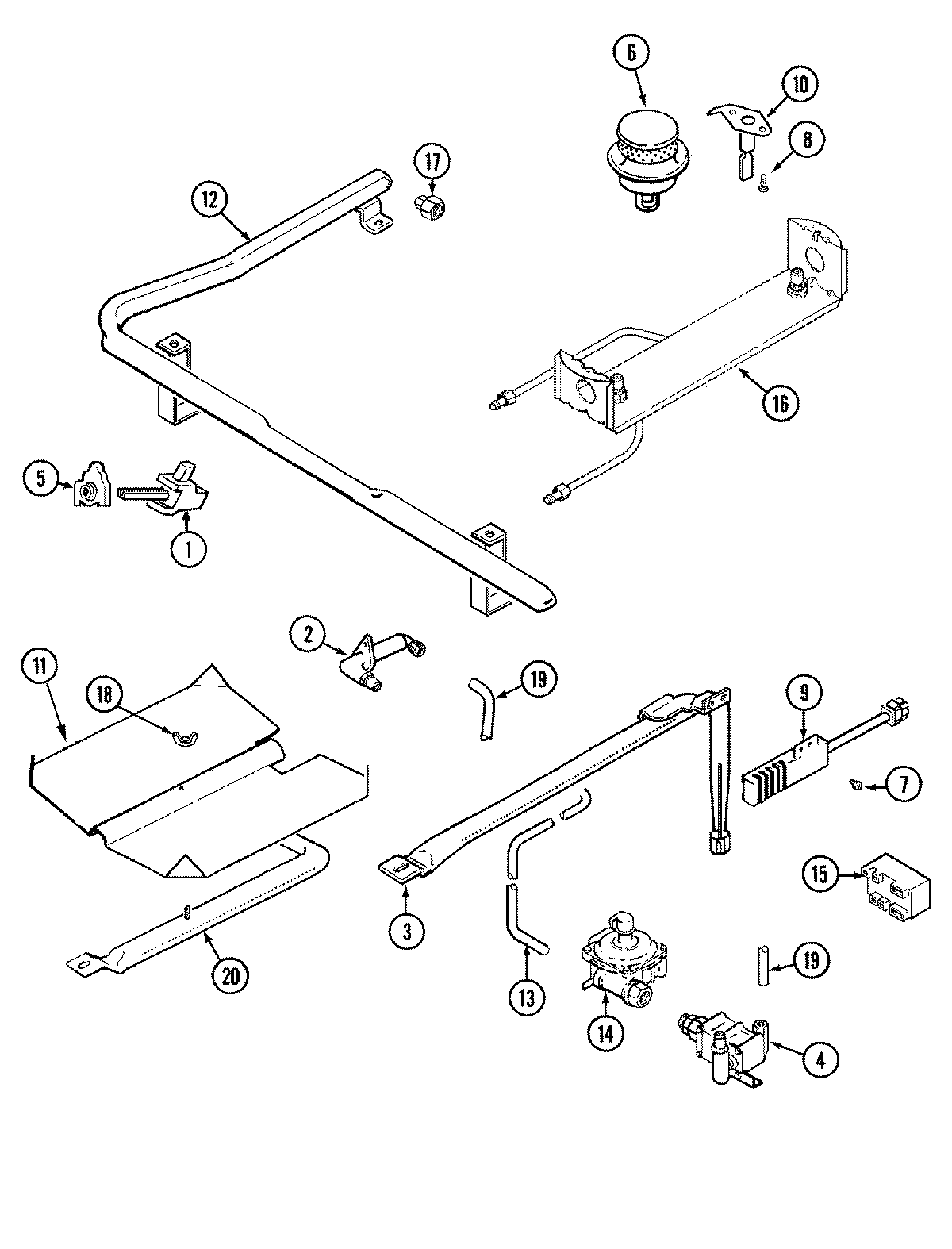

CG34700BDV 04 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
NI	MAY 74006516
NI	MAY 12001323
1	MAY 74004303
1	MAY 74003924
1	MAY 71003231
1	WP8273096 Whirlpool Screw
2	MAY 74006421
2	MAY 74004307
3	MAY 74003960
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
4	COVER, VALVE/REGULATOR
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74002533
6	WP3412D024-26 Whirlpool Oven Surface Burner Head
7	SCREW (10-24X5/16-NI)
8	MAY Y707113
9	MAY 4005F421-45
9	MAY 7432P075-60
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 3601F217-47
11	MAY 74009231
12	MAY 74006422
13	MAY 74006428
14	WP74006429 Whirlpool Regulator
15	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
15	MAY 74005266
16	WP5787M052-60 Whirlpool Fitting
16	MAY 74003528
17	MAY 7103P130-60
18	NUT, WING
19	MAY 74006430
19	MAY 1555258K
20	MAY 74004076
