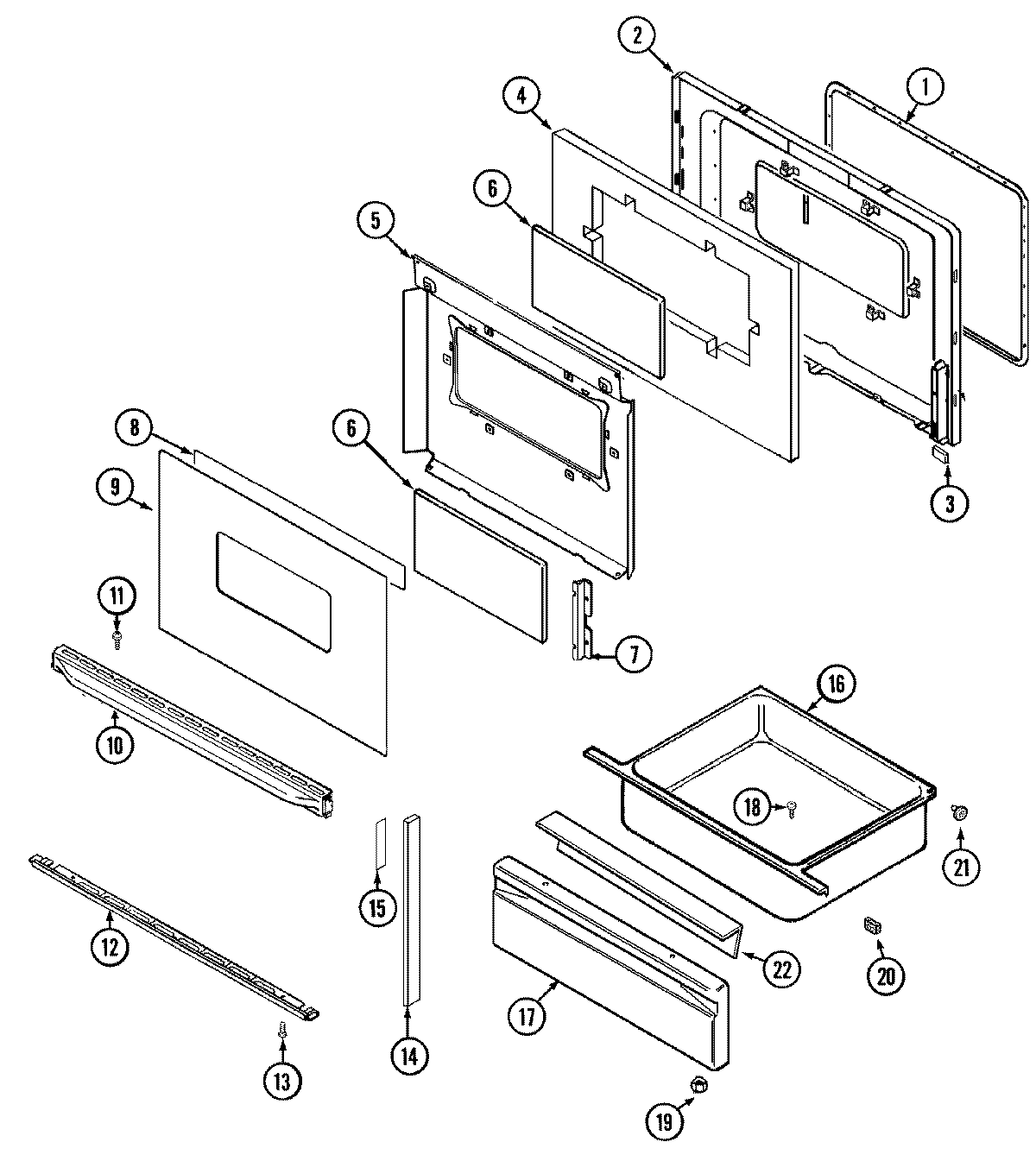

CG34700BDW 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	LINING, OVEN DOOR
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 74003431
10	MAY 74003429
11	SCREW (8ABX1/2``-BLK)
12	MAY 74003432
13	SCREW
14	MAY 74003430
15	MAY 74004075
16	MAY 71003042
17	PANEL, DRAWER (WHT)
19	WPW10131078 Whirlpool Nut Assembly
20	WP74005546 Whirlpool RU Spacer
21	WP74004078 Whirlpool Door Roller
21	SHAFT, STORAGE DRAWER ROLLER
21	WP488130 Whirlpool Air Conditioner Nut
22	LINING, DRAWER PANEL
