CG34700BDW 06 – TOP ASSEMBLY – Aparts

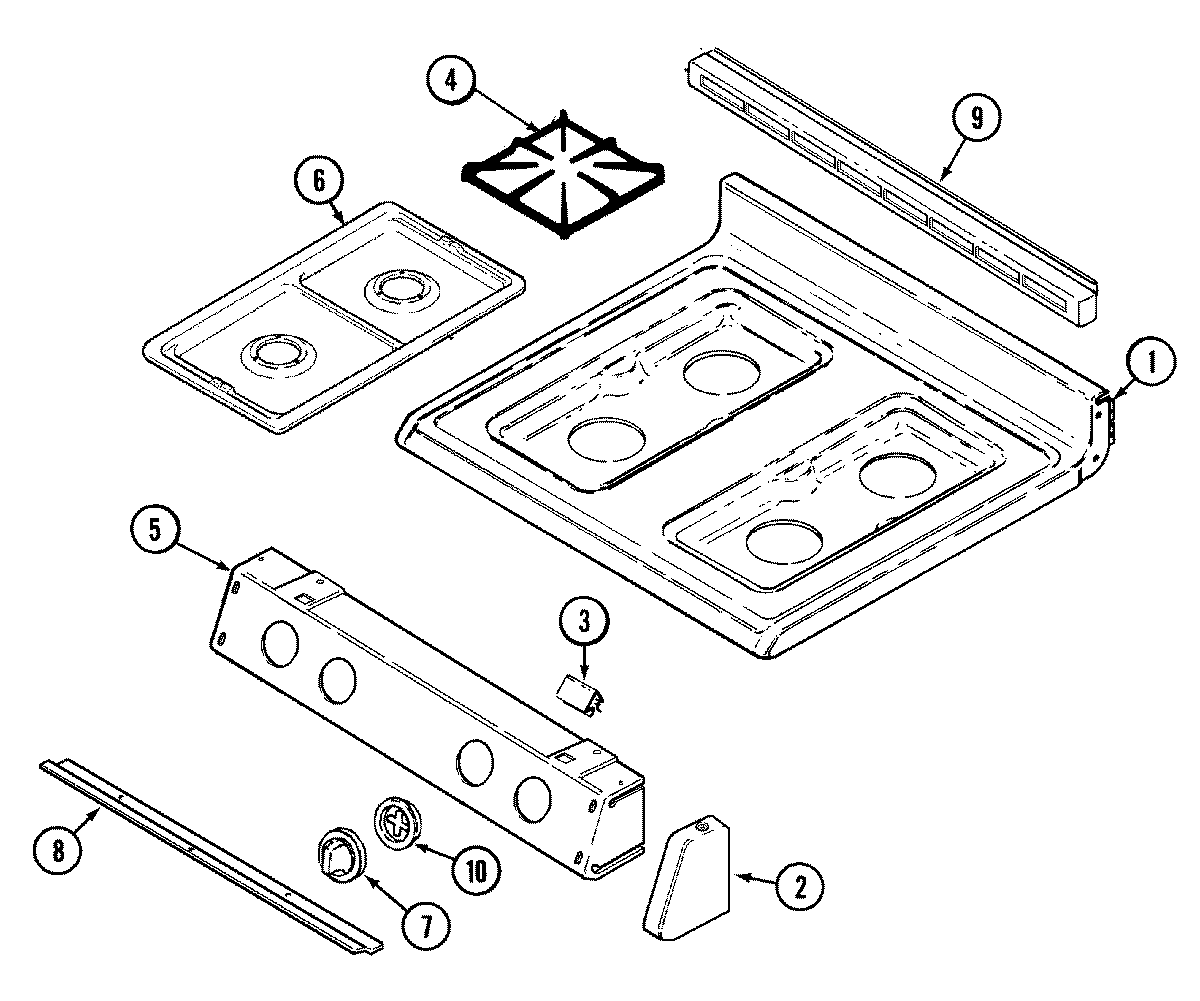

CG34700BDW 06 – TOP ASSEMBLY

Products

Position	Product
1	MAY 74001428
1	MAY 74003512
2	MAY 74003860
2	MAY 74003498
2	MAY 74003497
3	MAY 74004827
4	WP7518P464-60 Whirlpool Burner Grate
5	MAY 7101P074-60
5	MAY 74003527
5	SCREW (8BX3/8-NI)
6	MAY 5401A452-60
7	WP74003781 Whirlpool Valve Knob
7	MAY 74005684
8	MAY 74002447
8	SCREW
9	MAY 74003501
9	SCREW (10ABX1/4P TR ZN)
10	WP7740P058-60 Whirlpool Knob Bezel
10	MAY 74005683
