CG3478VVD 01 – BODY
Written by
in

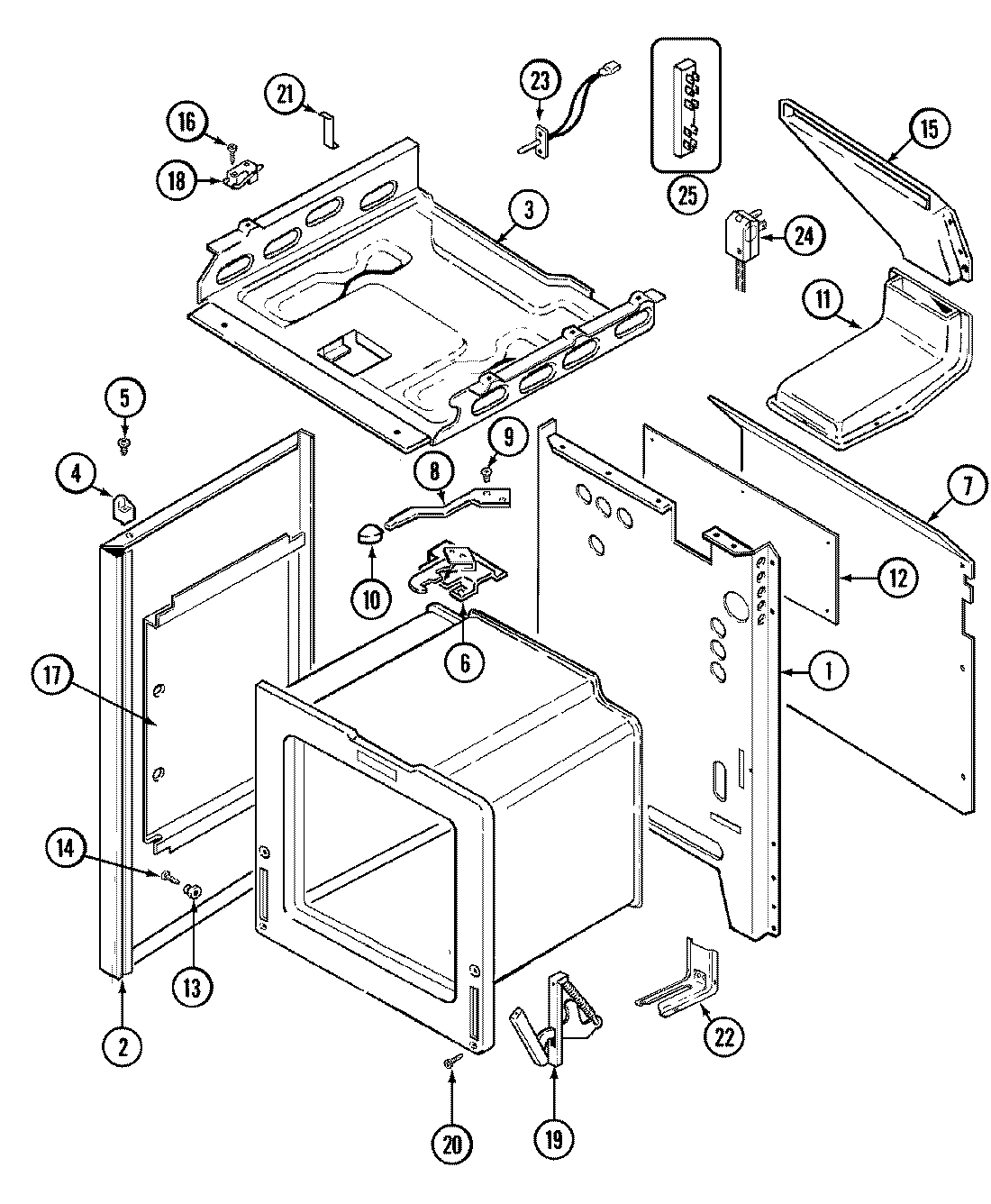

CG3478VVD 01 – BODY
Products
Position
Product
1
MAY 8008P021-60
1
MAY 4002F199-80
2
MAY 74003237
3
MAY 4011F231-80
3
MAY 4011F250-80
4
SPACER, MAIN TOP (RT)
4
SPACER, MAIN TOP (LT)
5
MAY 7101P313-60
6
MAY 4804F028-60
6
MAY 74001069
6
MAY 74001084
6
MAY 8002P024-60
7
MAY 4005F331-51
8
MAY 74001057
8
MAY 8009P023-60
8
MAY 8009P029-60
9
SCREW, LEVER
10
MAY 7701P151-60
10
MAY 7112P003-60
10
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11
MAY 4006W113-45
12
MAY 3604F165-51
13
MAY 8004P024-60
14
SCREW
15
MAY 4022W007-19
16
MAY 7101P130-60
16
MAY 7101P330-60
17
MAY 3804F103-51
18
MAY 7003P063-60
18
MAY 3801F267-45
18
MAY 7403P228-60
18
MAY 7403P361-60
19
MAY 7106P056-60
19
WP74011140 Whirlpool Oven Hinge
20
WP4159193 Whirlpool Screw
21
MAY 3807F431-45
22
MAY 3801F218-51
23
MAY 7430P009-60
24
MAY 7402P043-60
25
MAY 7401P037-60
←
