CG3478VVV 03 – DOOR/DRAWER (SER. PRE. 15)

CG3478VVV 03 – DOOR/DRAWER (SER. PRE. 15)

Written by

in

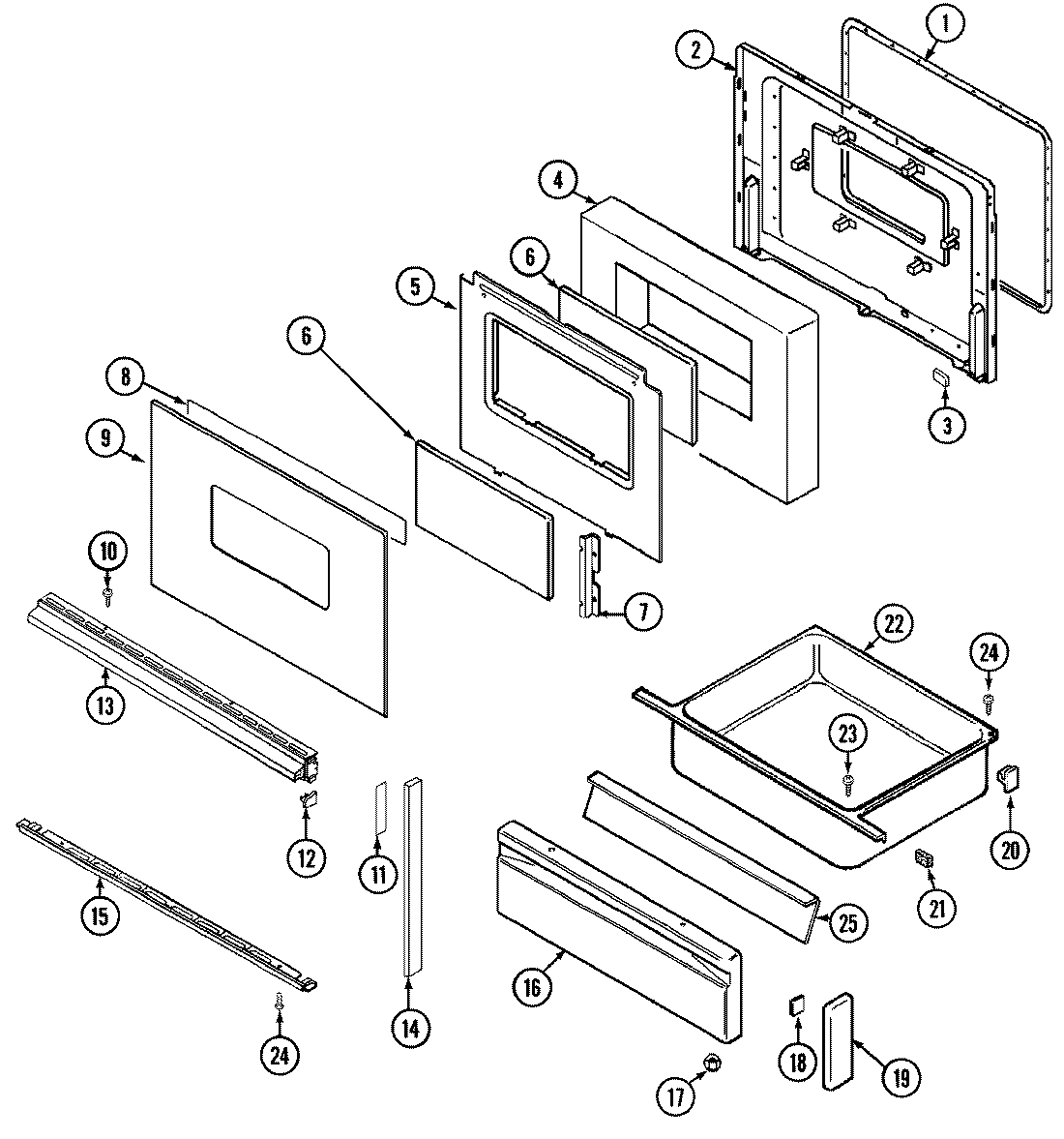

CG3478VVV 03 – DOOR/DRAWER (SER. PRE. 15)

Products

PositionProduct
1GASKT-DOOR OVEN
2MAY 74001058
2MAY 74003244
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6MAY 74001841
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74003395
9MAY 7902P328-60
10WP98008544 Whirlpool Screw Assembly
11MAY 8270P048-60
12MAY 74002738
12MAY 7744P076-60
12MAY 7744P075-60
12MAY 74002739
12NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13MAY 7701P145-60
13MAY 74003396
13MAY 7701P105-60
14MAY 74002342
14MAY 74003398
14MAY 7744P065-60
15MAY 74003397
15MAY 7744P103-60
16MAY 2416F038-62
17WPW10131078 Whirlpool Nut Assembly
18TAPE
19MAY 74002740
19MAY 7744P067-60
20WP8004P026-60 Whirlpool Support
21MAY 7208P002-60
22MAY 3405F018-80
23WP7101P072-60 Whirlpool Screw
24SCREW
25LINING, DRAWER PANEL
