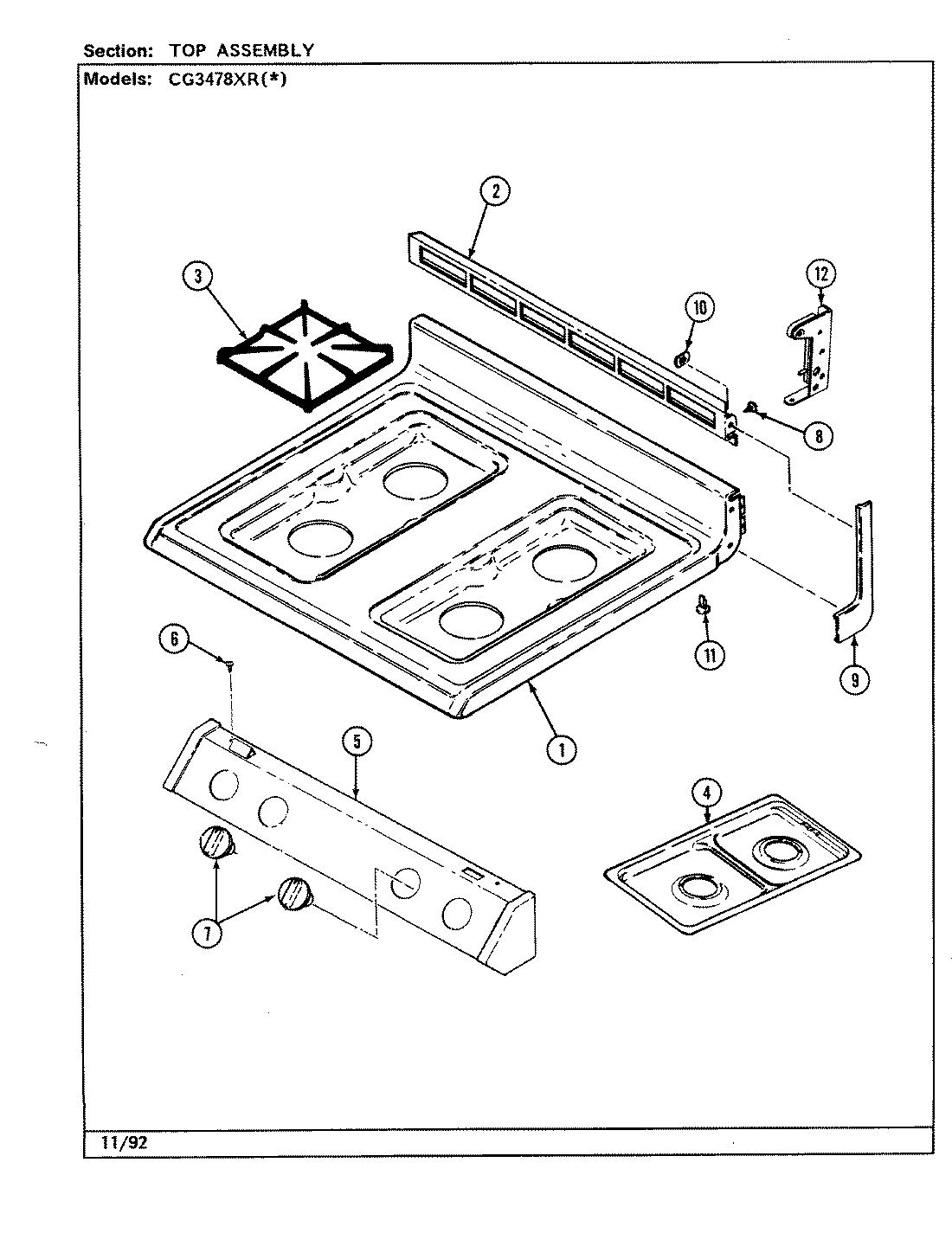

CG3478XRW 06 – TOP ASSEMBLY

CG3478XRW 06 – TOP ASSEMBLY

Written by

in

CG3478XRW 06 – TOP ASSEMBLY

Products

PositionProduct
1MAY 2001W082-81
2MAY 3608F042-09
3MAY 2003W023-00
3MAY 2003W027-00
4MAY 5401A452-60
5MAY 7712P190-60
6MAY 7118P015-60
7WP7733P508-60 Whirlpool Knob
8SCREW (10ABX1/4P TR ZN)
9MAY 8114P348-60
9MAY 7746P030-60
9MAY 7746P031-60
10MAY 8270P095-60
10MAY 7112P087-60
11MAY 8016P013-60
12MAY 3807F423-51
12MAY 3807F424-51
