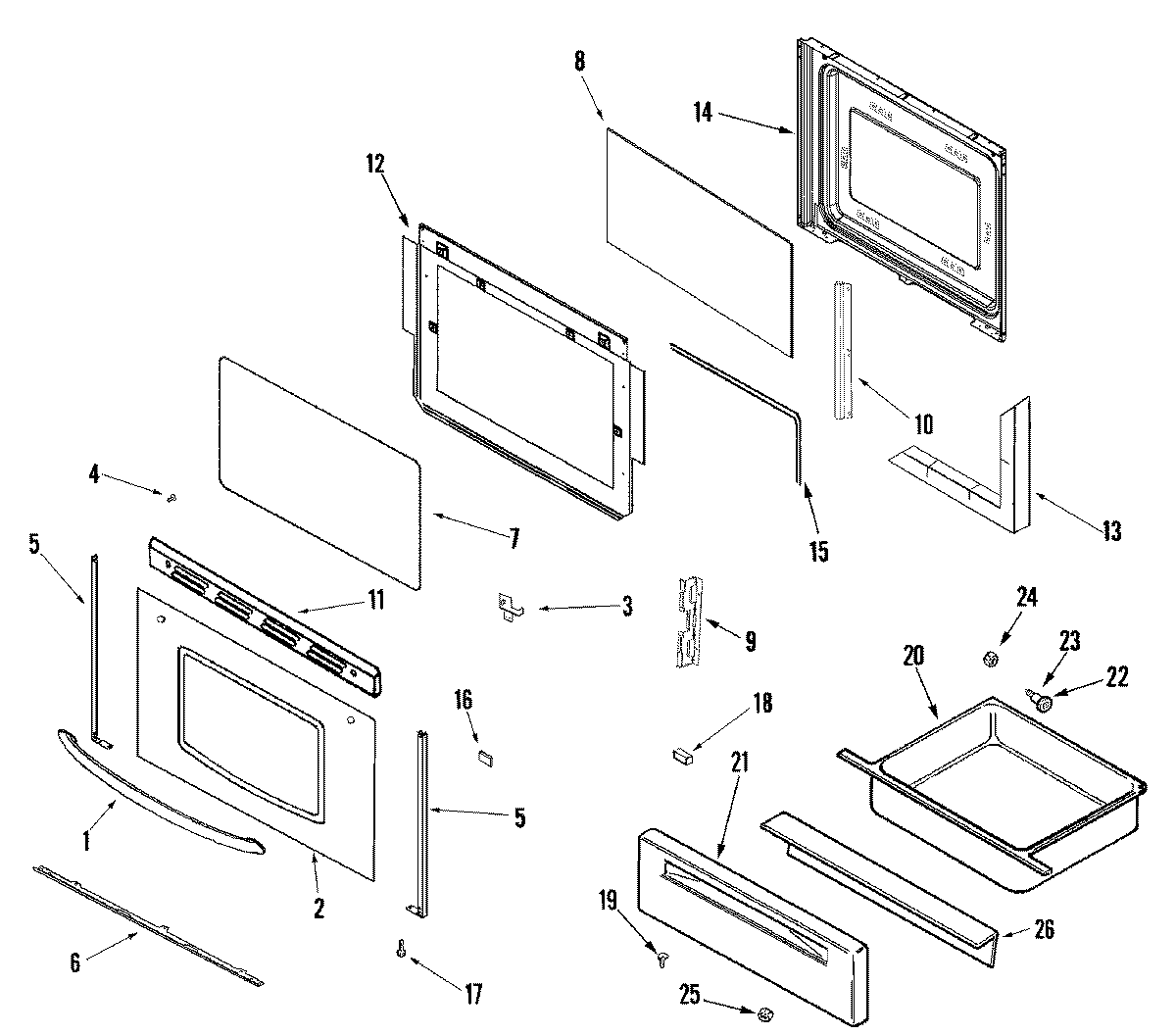

CG34800ADQ 04 – DOOR/DRAWER (SERIES 16)

CG34800ADQ 04 – DOOR/DRAWER (SERIES 16)

Written by

in

CG34800ADQ 04 – DOOR/DRAWER (SERIES 16)

Products

PositionProduct
1MAY 74010336
2MAY 74010364
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
5WP74004224 Whirlpool Tape
5TRIM, DOOR (BSQ-RT)
5TRIM, DOOR (BSQ-LT)
6SUPPORT, GLASS (BSQ)
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9MAY 74003650
103801F886-51 Whirlpool Mounting Bracket
11MAY 74010237
11MAY 7101P356-60
12SCREW
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
15GASKT-DOOR OVEN
16SPACER, RUBBER (BLK-SQUARE)
17WP74009541 Whirlpool Screw Assembly
20MAY 74008337
21PANEL, DRAWER (BSQ)
21WP74005546 Whirlpool RU Spacer
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
