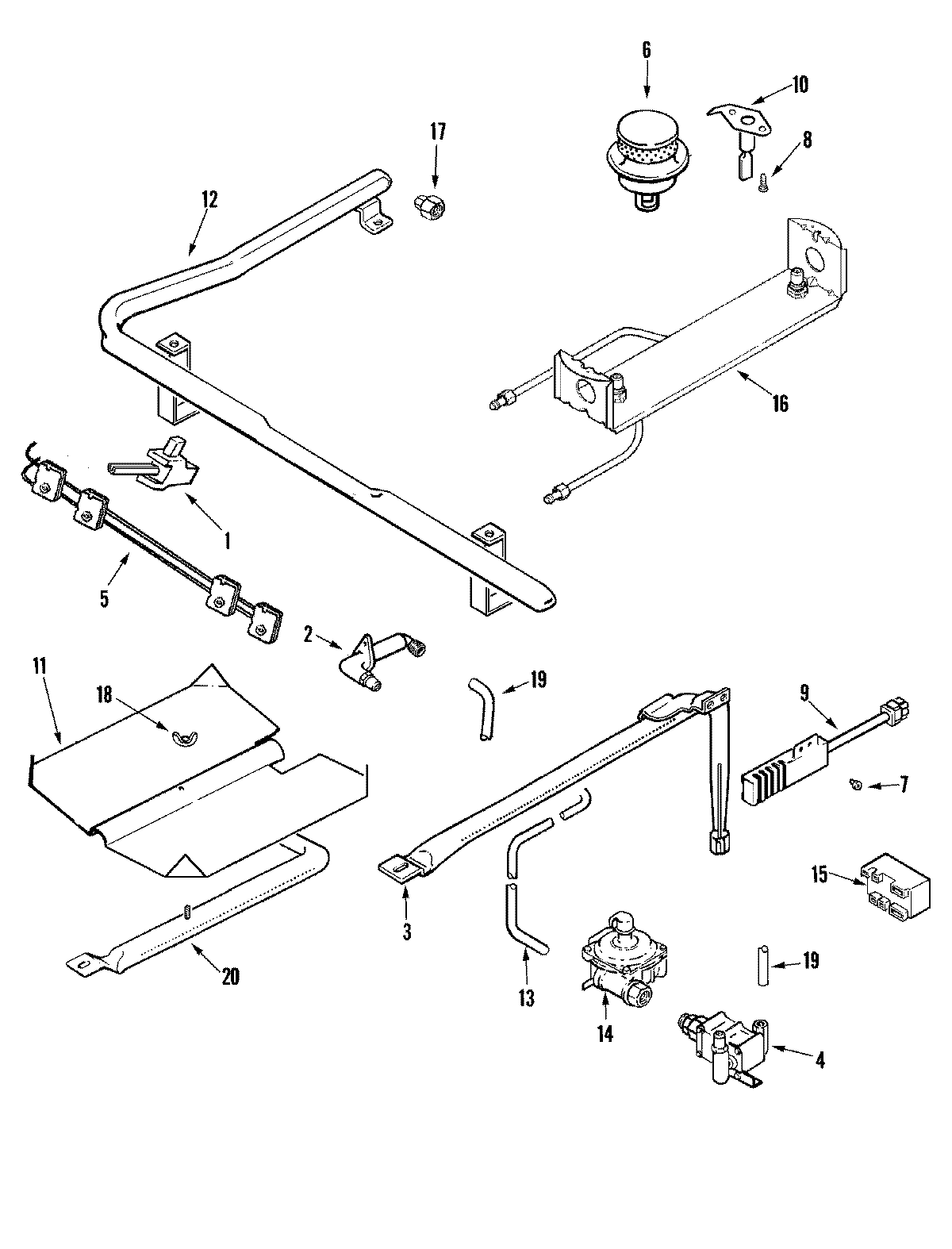

CG34800ADQ 05 – GAS CONTROLS

Products

Position	Product
1	MAY 74009770
1	MAY 74009462
2	MAY 74009765
2	MAY 74004307
2	WP3387230 Whirlpool Screw
3	MAY 74003960
3	MAY 3807F446-45
4	MAY 74007621
5	MAY 74009769
5	MAY 74009416
6	WP3412D021-09 Whirlpool Burner Assembly
6	MAY 74003966
7	SCREW (10-24X5/16-NI)
8	MAY Y707113
9	MAY 4005F421-45
9	74007498 Whirlpool Range Flat Igniter
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74009231
12	MAY 74010271
13	MAY 74009766
14	MAY 74007780
15	74008821 Whirlpool Spark Module
16	WP5787D105-60 Whirlpool Orifice
16	MAY 74009832
17	MAY 7103P130-60
18	NUT, WING
19	MAY 74006430
20	MAY 74004076
