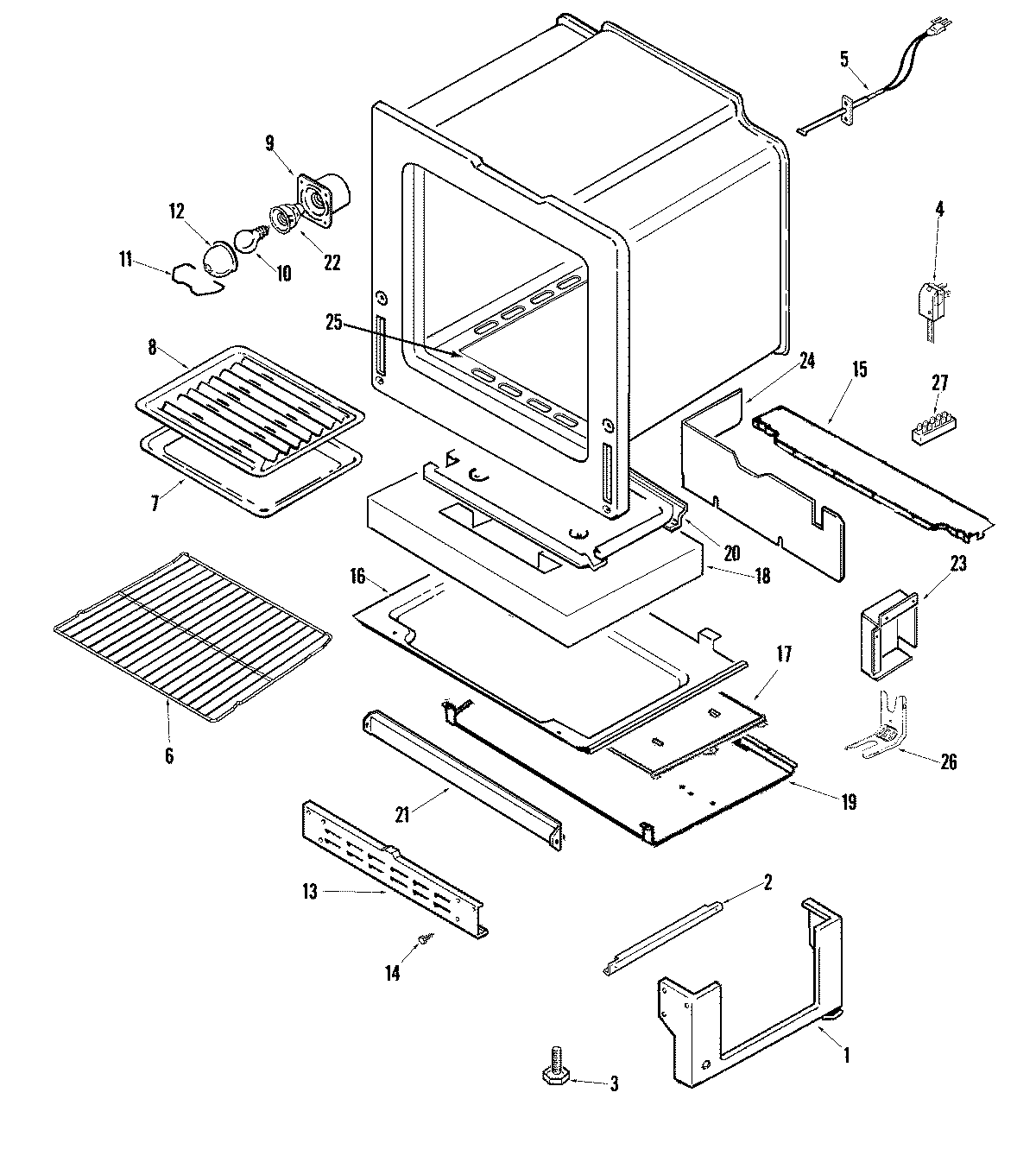

CG34800ADQ 06 – OVEN/BASE

Products

Position	Product
1	MAY 74005772
2	74005230 Whirlpool Oven Lock Nut (8-32)
2	WP74004078 Whirlpool Door Roller
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74007556
5	12001655 Whirlpool Oven Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY Y3401F02019
8	MAY Y3413F01619
8	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9	MAY 74003388
10	RANGE ONLY 40W 120V APPL BULB
11	MAY 74003391
12	MAY 74003389
13	MAY 4020F001-80
15	SUPPORT, VALVE REGULATOR
16	RETAINER, BOTTOM INSULATION
17	MAY 74006574
18	MAY 74003503
18	INSULATION, DRAWER & SHIELD
19	MAY 74006591
20	PAN, BAKE BURNER
21	BAFFLE, OVEN FRONT
22	MAY 74003387
23	MAY 71001394
23	MAY 74009583
24	COVER, VALVE/REGULATOR
25	MAY 74002376
25	MAY 74002377
25	SCREW
25	MAY 74011347
25	BAFFLE, OVEN BOTTOM
26	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26	WP7101P485-60 Whirlpool Anchor Tip
27	MAY 7401P037-60
