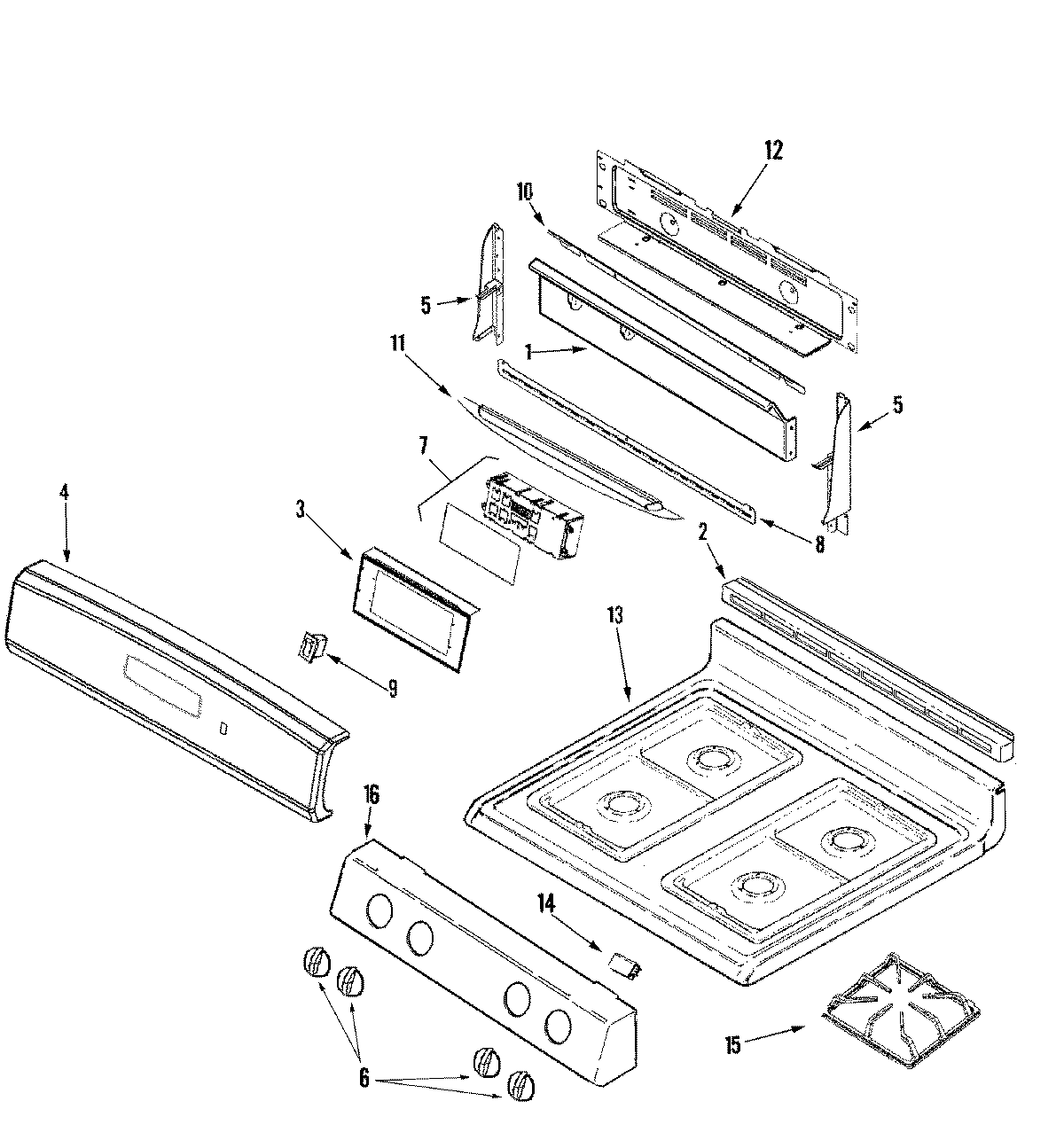

CG34800ADS 02 – CONTROL PANEL/TOP ASSEMBLY – Aparts

CG34800ADS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	SCREW (8BX3/8-NI)
1	MAY 74009779
2	MAY 74009797
2	SCREW (10ABX1/4P TR ZN)
3	MAY 74008716
4	MAY 74008836
4	MAY 74010421
5	WP98008545 Whirlpool Screw
5	MAY 74010201
5	MAY 74010202
6	MAY 74009846
7	MAY 74010325
7	WP74003976 Whirlpool Screw
8	MAY 74009780
9	SWITCH, ROCKER (BLK)
10	SCREW
10	MAY 74009978
11	MAY 74009800
11	MAY 74009801
12	MAY 71001394
12	WP90767 Whirlpool Screw
12	MAY 74006536
12	MAY 74009943
13	WP74005546 Whirlpool RU Spacer
13	MAY 71003047
14	MAY 74004827
15	WP7518P464-60 Whirlpool Burner Grate
16	MAY 74010459
