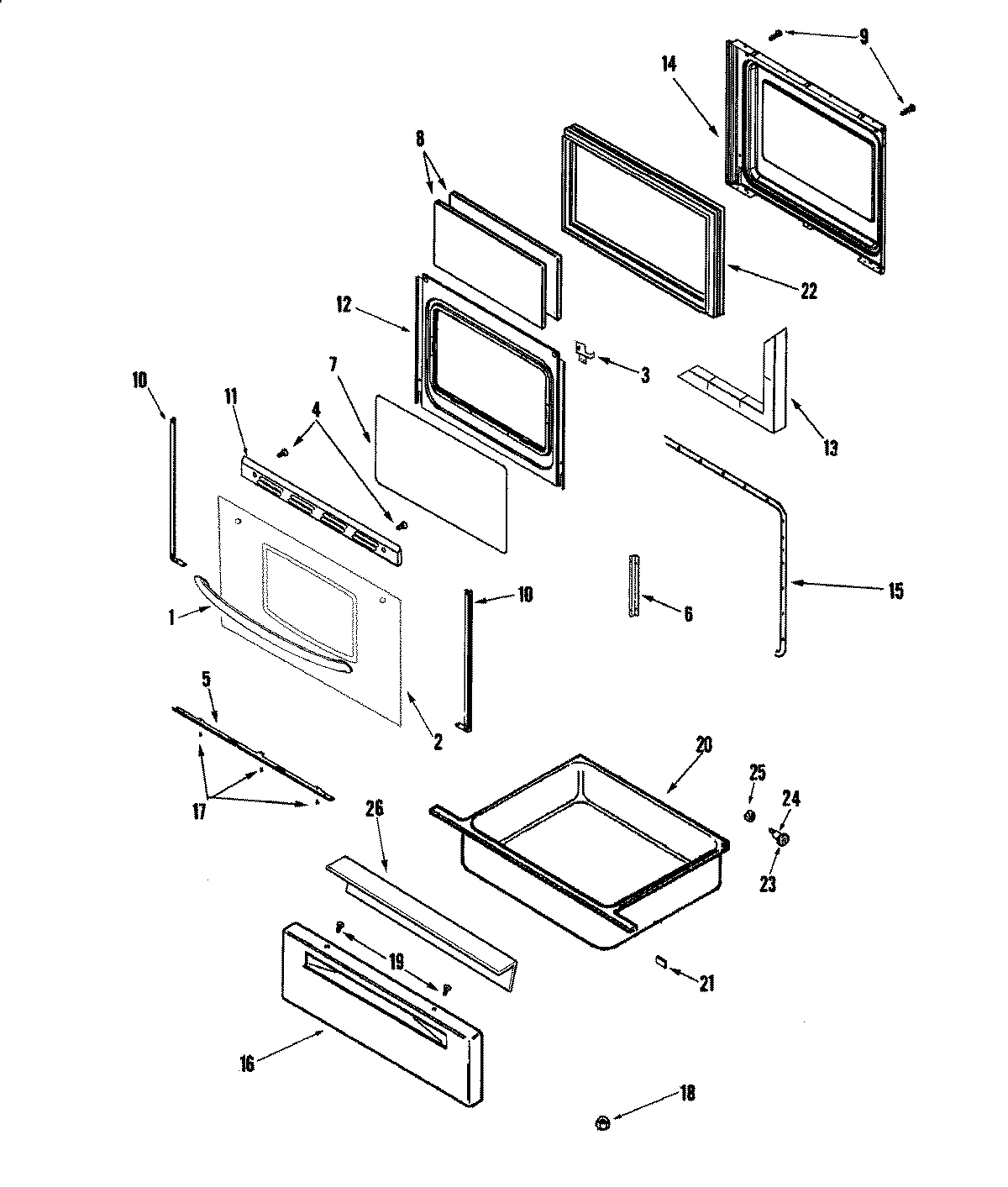

CG34800ADT 03 – DOOR/DRAWER

CG34800ADT 03 – DOOR/DRAWER

Written by

in

CG34800ADT 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010338
1MAY 7701P539-60
2MAY 74010362
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4MAY 74001521
4WP74006515 Whirlpool Washer Screw
5SUPPORT, GLASS (BLK)
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10WP3608F116-70 Whirlpool Door Trim
10WP74004224 Whirlpool Tape
10WP3608F117-70 Whirlpool Door Trim
11MAY 74010239
11MAY 7101P356-60
12MAY 74009943
12MAY 74009502
13INSULATION, OVEN DOOR
13MAY 74004964
13WP74005546 Whirlpool RU Spacer
14MAY 74008926
14NUT, SNAP (ROUND-BLK)
14MAY 74004827
15GASKT-DOOR OVEN
15WP7518P464-60 Whirlpool Burner Grate
16PANEL, DRAWER (BSQ)
16MAY 74010459
17WP74009541 Whirlpool Screw Assembly
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
