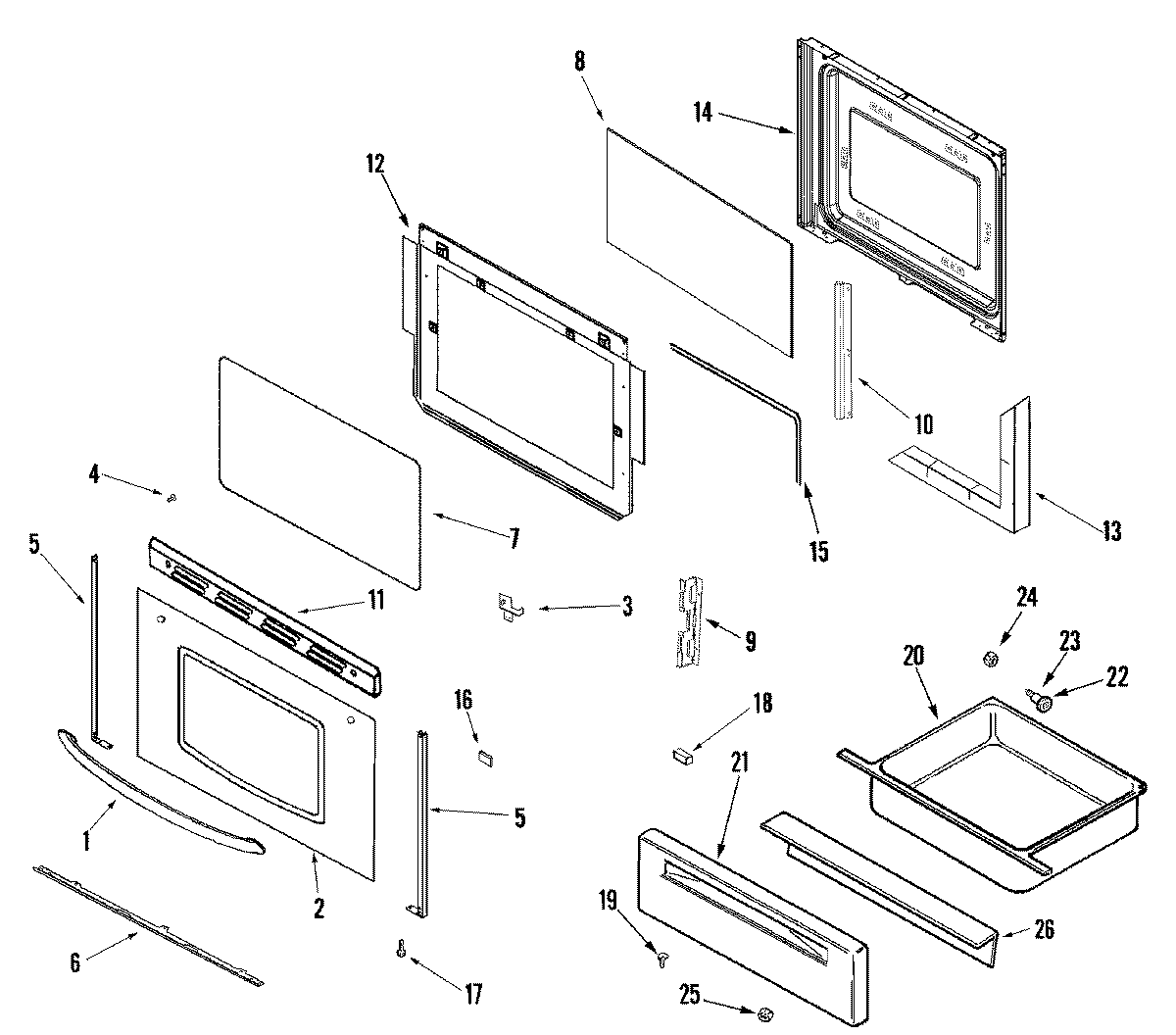

CG34800ADT 04 – DOOR/DRAWER (SERIES 16)

CG34800ADT 04 – DOOR/DRAWER (SERIES 16)

Written by

in

CG34800ADT 04 – DOOR/DRAWER (SERIES 16)

Products

PositionProduct
1MAY 74010338
2MAY 74010362
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
5WP3608F116-70 Whirlpool Door Trim
5WP3608F117-70 Whirlpool Door Trim
5WP74004224 Whirlpool Tape
6SUPPORT, GLASS (BLK)
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9MAY 74003650
103801F886-51 Whirlpool Mounting Bracket
11MAY 74010239
11MAY 7101P356-60
123601F373-51 Whirlpool Baffle
12SCREW
13INSULATION, OVEN DOOR
14LINING, DOOR
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16SPACER, RUBBER (BLK-SQUARE)
17WP98008545 Whirlpool Screw
17WP74009541 Whirlpool Screw Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
21PANEL, DRAWER (BSQ)
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
