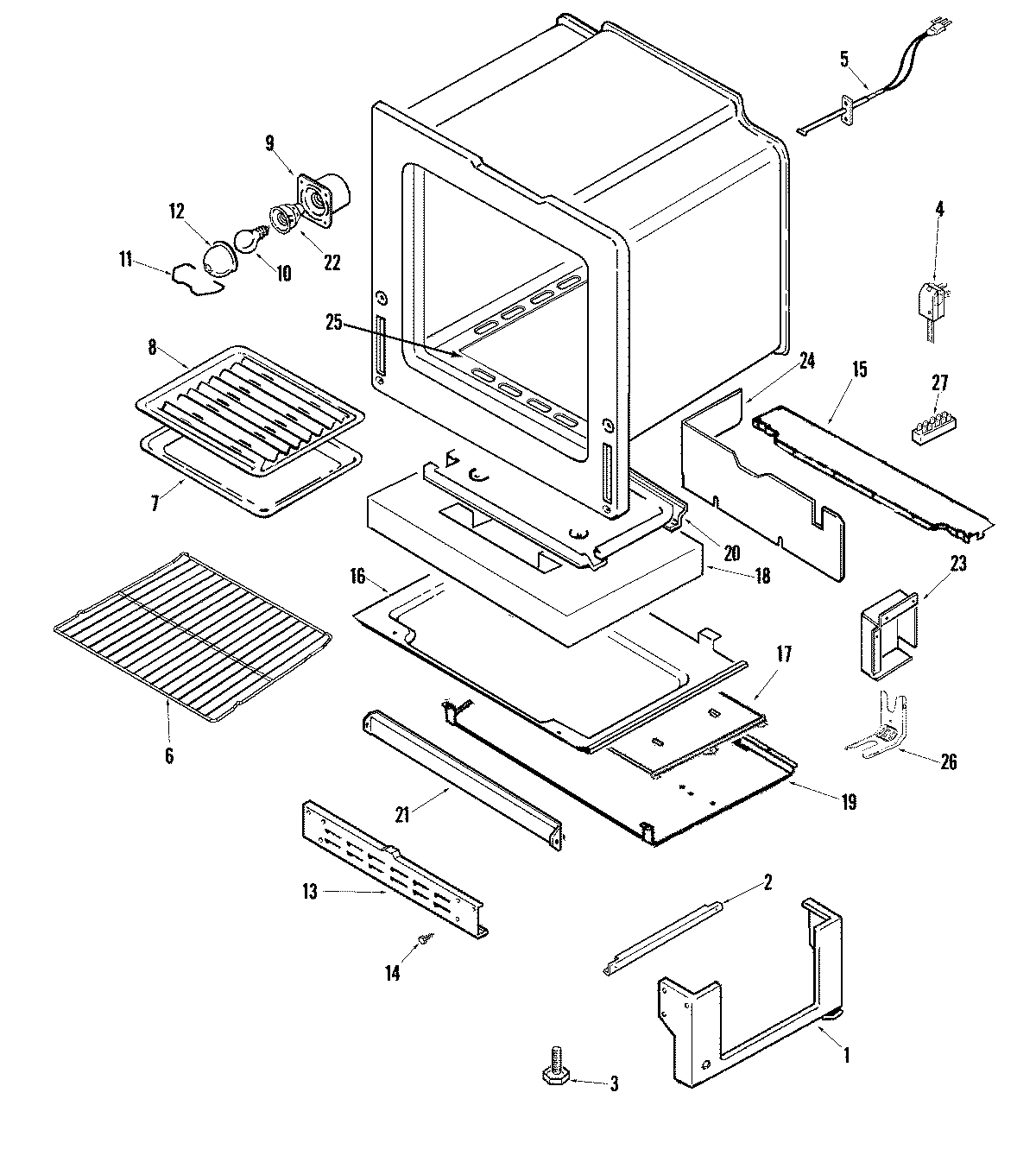

CG34800ADT 06 – OVEN/BASE

CG34800ADT 06 – OVEN/BASE

Written by

in

CG34800ADT 06 – OVEN/BASE

Products

PositionProduct
1MAY 74005772
274005230 Whirlpool Oven Lock Nut (8-32)
2WP74004078 Whirlpool Door Roller
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 74007556
512001655 Whirlpool Oven Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY Y3401F02019
8MAY Y3413F01619
8NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
11MAY 74003391
12MAY 74003389
13MAY 4020F001-80
15SUPPORT, VALVE REGULATOR
16RETAINER, BOTTOM INSULATION
17MAY 74006574
18MAY 74003503
18INSULATION, DRAWER & SHIELD
19MAY 74006591
20PAN, BAKE BURNER
21BAFFLE, OVEN FRONT
22MAY 74003387
23MAY 71001394
23MAY 74009583
24COVER, VALVE/REGULATOR
25MAY 74002376
25MAY 74002377
25SCREW
25MAY 74011347
25BAFFLE, OVEN BOTTOM
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WP7101P485-60 Whirlpool Anchor Tip
27MAY 7401P037-60
