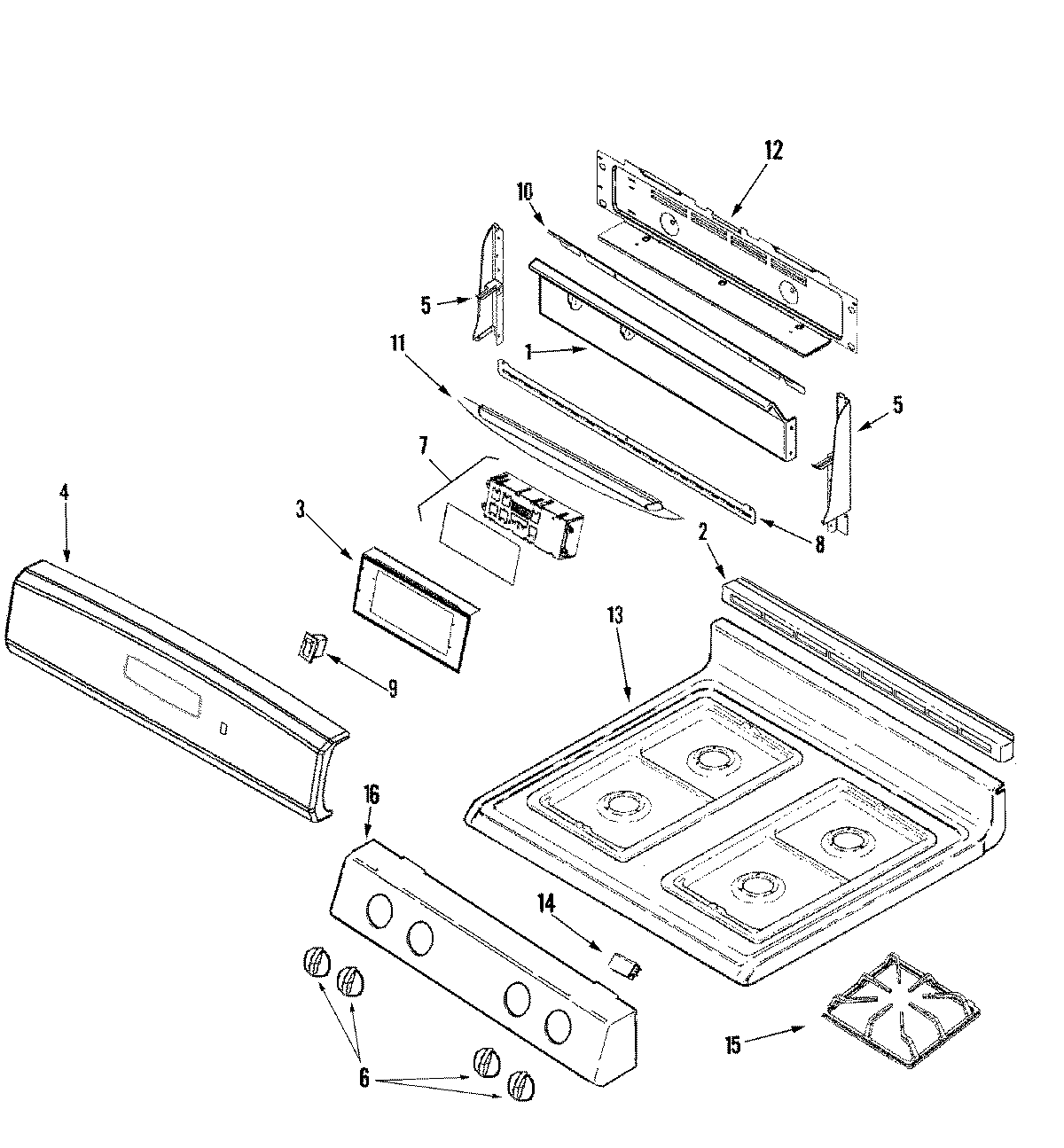

CG34800ADV 02 – CONTROL PANEL/TOP ASSEMBLY

CG34800ADV 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CG34800ADV 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74010457
4MAY 74008836
5WP98008544 Whirlpool Screw Assembly
5MAY 74010211
5MAY 74010212
6MAY 74009846
7MAY 74010321
7WP74003976 Whirlpool Screw
8MAY 74009780
974008717 Whirlpool White Rocker Switch
10SCREW
10MAY 74009978
11MAY 74009802
11MAY 74009799
12WP90767 Whirlpool Screw
12MAY 74006536
12MAY 71001394
12MAY 74009943
13MAY 74003512
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15MAY 74001061
16MAY 74010460
