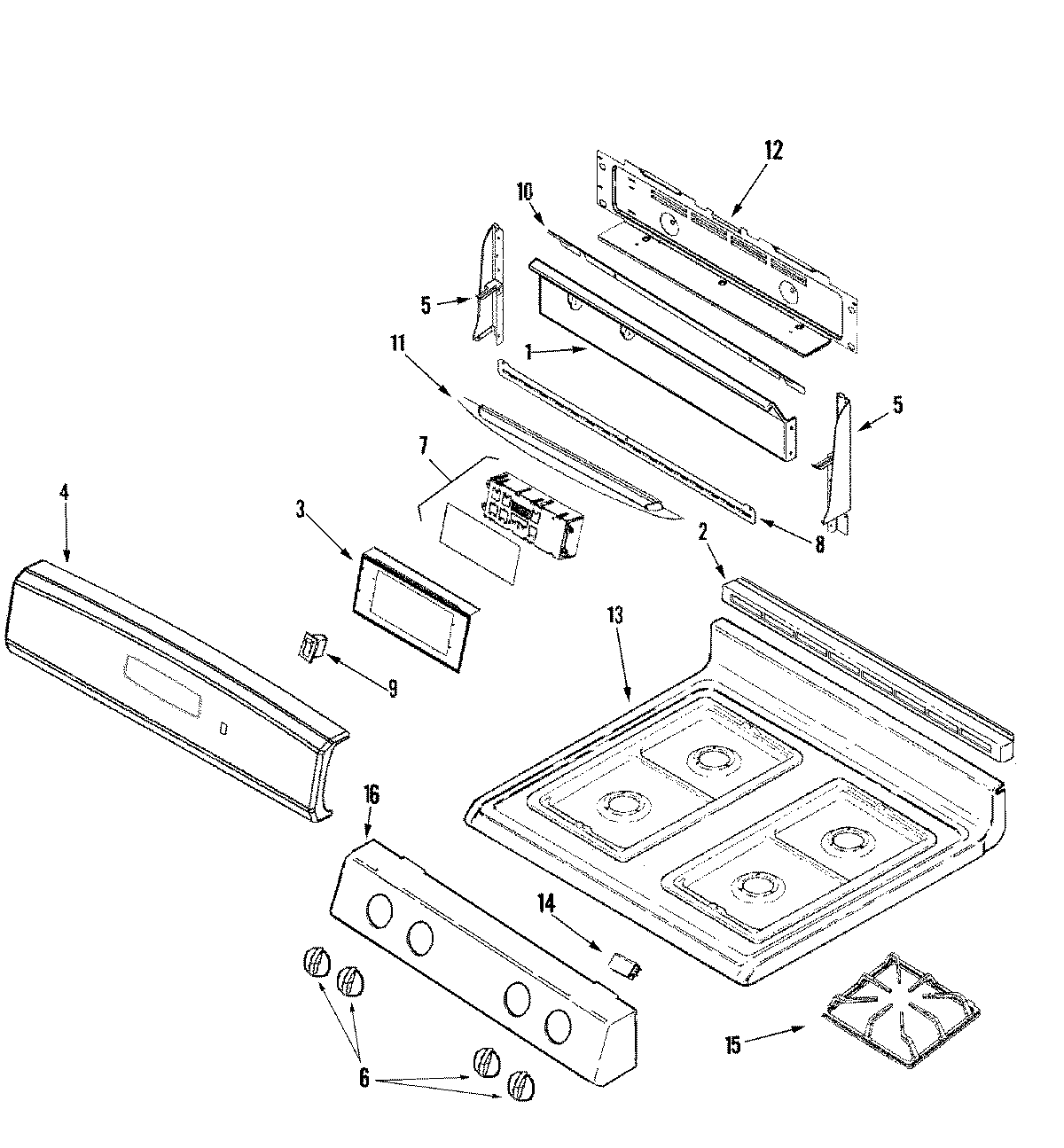

CG34800ADW 02 – CONTROL PANEL/TOP ASSEMBLY

CG34800ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CG34800ADW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2SCREW (10ABX1/4P TR ZN)
2MAY 74009797
3MAY 74008716
4MAY 74010456
4MAY 74008836
5WP98008545 Whirlpool Screw
5MAY 74010202
5MAY 74010201
6MAY 74009846
7MAY 74010325
7WP74003976 Whirlpool Screw
8MAY 74009780
9SWITCH, ROCKER (BLK)
10MAY 74009978
10SCREW
11MAY 74009800
11MAY 74009801
12WP90767 Whirlpool Screw
12MAY 71001394
12MAY 74009943
12MAY 74006536
13WP74005546 Whirlpool RU Spacer
13MAY 74003512
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010459
