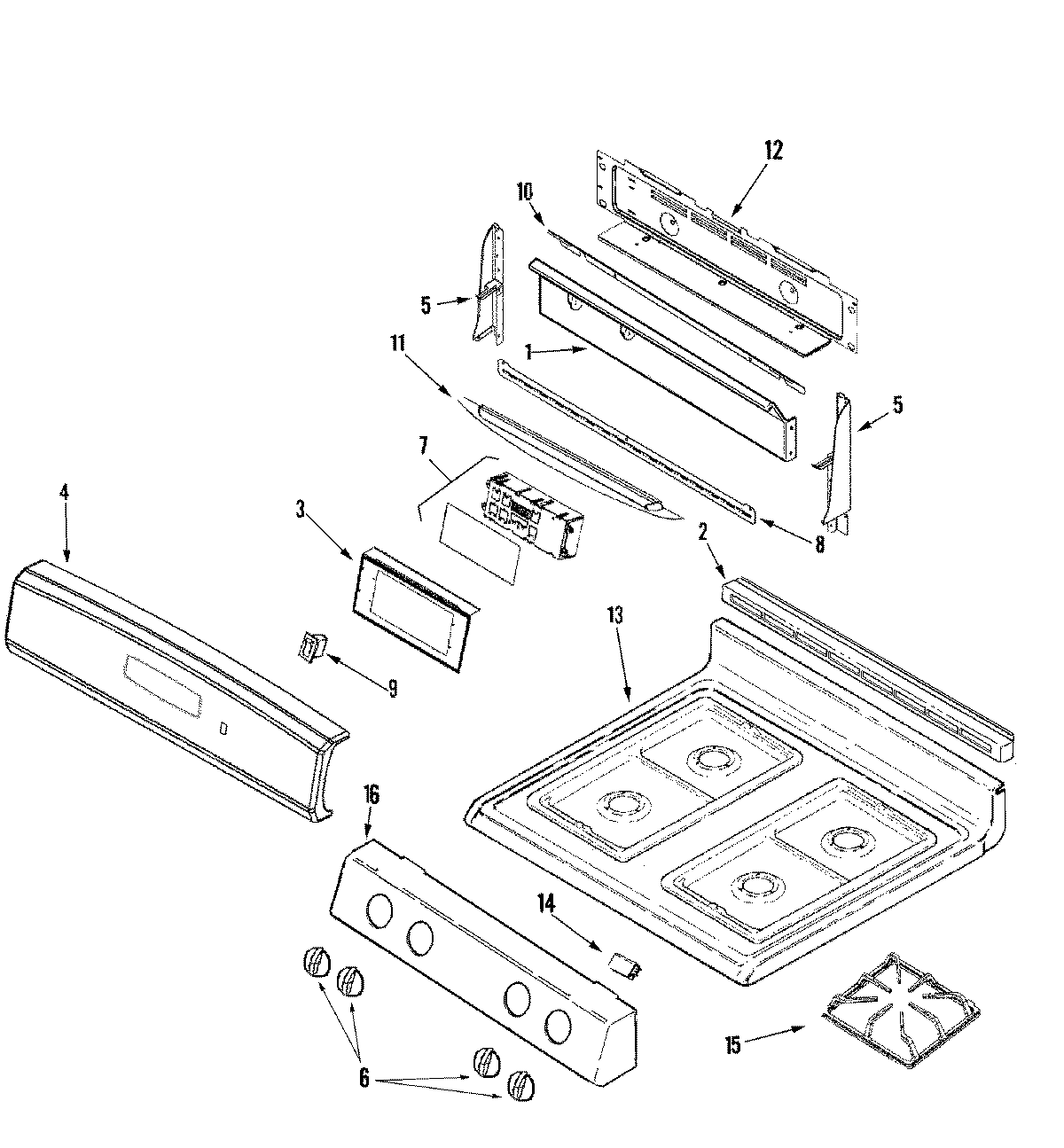

CG34800BDS 02 – CONTROL PANEL/TOP ASSEMBLY

CG34800BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CG34800BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3MAY 74008716
4MAY 74008836
4MAY 74010421
5WP98008545 Whirlpool Screw
5MAY 74010201
5MAY 74010202
6MAY 74009846
7MAY 74010325
7WP74003976 Whirlpool Screw
8MAY 74009780
9SWITCH, ROCKER (BLK)
10SCREW
10MAY 74009978
11MAY 74009800
11MAY 74009801
12MAY 71001394
12WP90767 Whirlpool Screw
12MAY 74006536
12MAY 74009943
13WP74005546 Whirlpool RU Spacer
13MAY 71003047
14MAY 74004827
15WP7518P464-60 Whirlpool Burner Grate
16MAY 74010459
