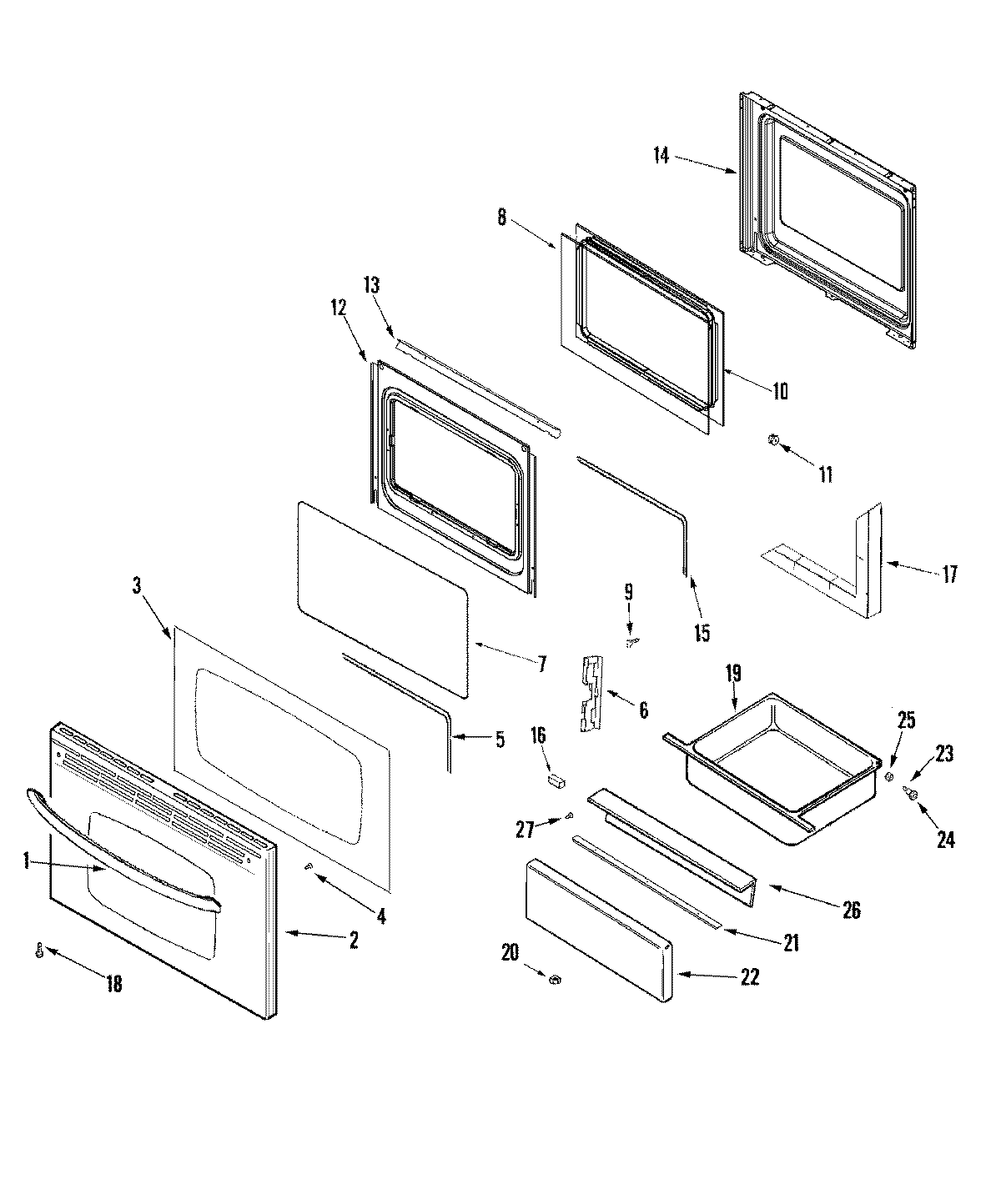

CG34800BDS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 7701P539-60
1MAY 74010338
2MAY 74010233
2MAY 74011478
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10FRAME, GLASS
11NUT, SNAP (ROUND-BLK)
12MAY 74011339
13MAY 74010040
14MAY 74003642
15GASKT-DOOR OVEN
16WP74005546 Whirlpool RU Spacer
17INSULATION, OVEN DOOR
19MAY 74008337
20WPW10131078 Whirlpool Nut Assembly
21HANDLE, DRAWER (STL)
22MAY 74009840
23SHAFT, STORAGE DRAWER ROLLER
24WP74004078 Whirlpool Door Roller
25WP488130 Whirlpool Air Conditioner Nut
26LINING, DRAWER PANEL
