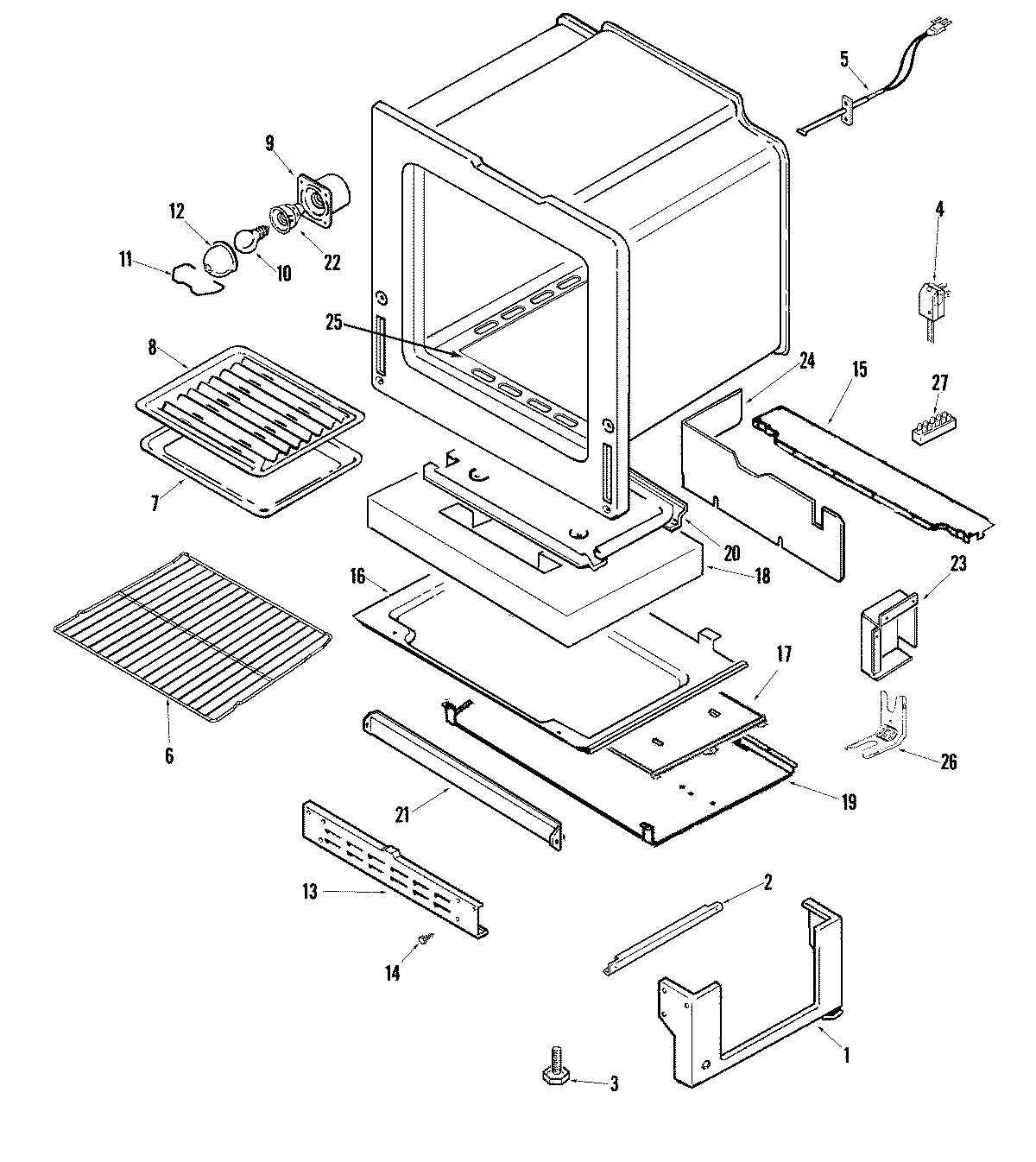

CG34800BDS 06 – OVEN/BASE

CG34800BDS 06 – OVEN/BASE

Written by

in

CG34800BDS 06 – OVEN/BASE

Products

PositionProduct
1MAY 74005772
274005230 Whirlpool Oven Lock Nut (8-32)
2WP74004078 Whirlpool Door Roller
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 74007556
512001655 Whirlpool Oven Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74011347
8MAY 7401P037-60
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
11MAY 74003391
12MAY 74003389
13MAY 4020F001-80
15SUPPORT, VALVE REGULATOR
16RETAINER, BOTTOM INSULATION
17MAY 74006574
18MAY 74003503
18INSULATION, DRAWER & SHIELD
19MAY 74006591
20PAN, BAKE BURNER
21BAFFLE, OVEN FRONT
22MAY 74003387
23MAY 71001394
23MAY 74009583
24COVER, VALVE/REGULATOR
24SCREW
25WP7101P485-60 Whirlpool Anchor Tip
25WP3801F656-51 Whirlpool Range Anti-Tip Bracket
