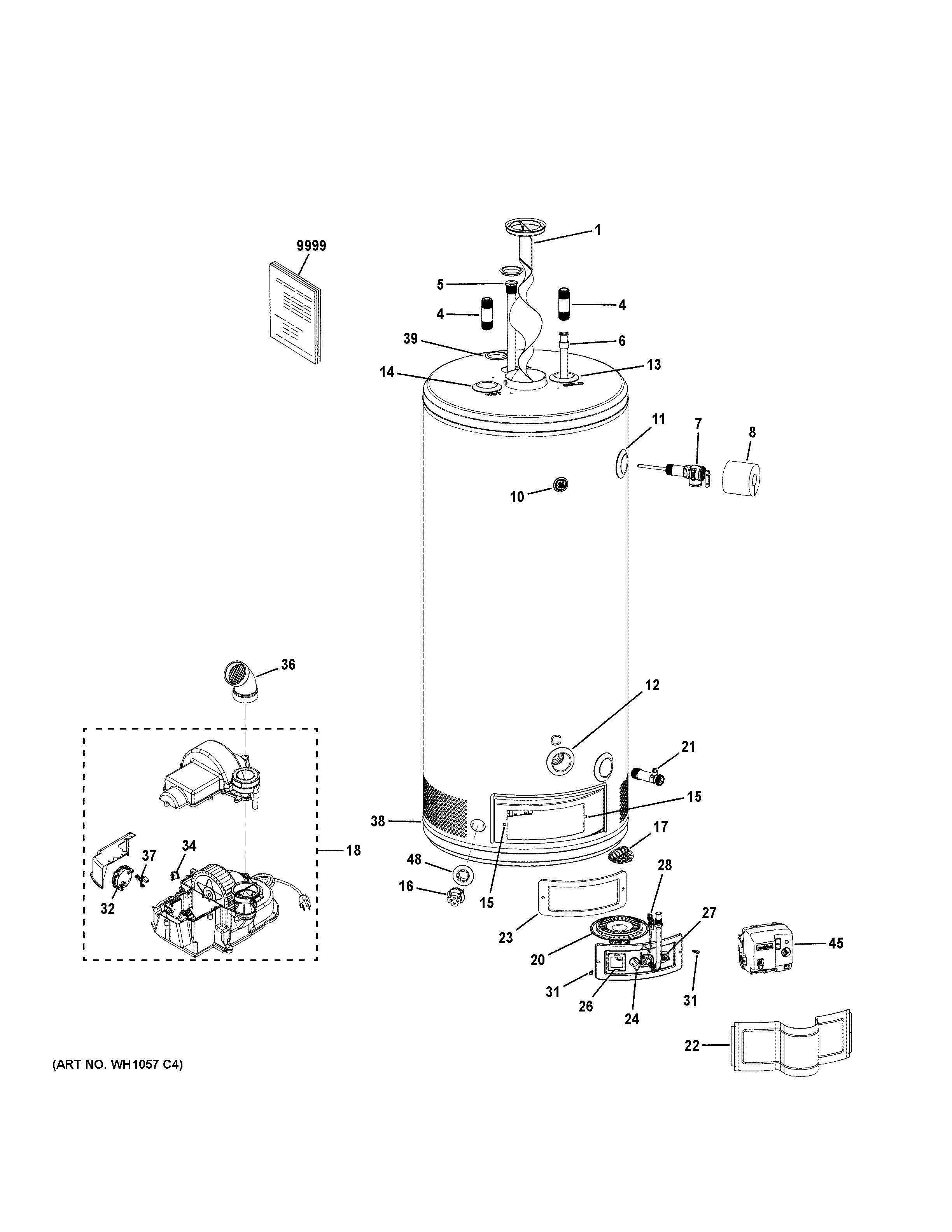

CG50S08AYV01 WATER HEATER ASSEMBLY

Products

Position	Product
1	BAFFLE COLLAR ASM 50S PV
4	INLET/OUTLET PIPE
5	ROD ANODE
6	DIP TUBE (18"L)
7	T-P VALVE
8	T-P VALVE INSULATION
10	WR04X10181 GE Refrigerator Dishwasher Nameplate Badge
11	FOAM DAM
12	GAS VALVE FOAM DAM
13	INLET FOAM DAM (BLUE)
14	OUTLET FOAM DAM (RED)
15	NUT-U
16	FV SENSOR
17	SPACER BOTTOM PV
18	BLOWER ASM - PV 40T LN
20	BURNER ASM 21.5 PV NG
21	VALVE DRAIN BRASS
22	WS02X22761 GE Outer Door
23	BURNER DOOR GASKET
24	PILOT ASM PV/PD NAT
26	SIGHT GLASS ASM
27	WS21X23195 GE Door Thermistor
28	HARNESS THERMISTOR
31	SCR 8-18 AB UIHWH 3/4 SEMS SMS
32	PRESSURE SWITCH (MPL -0.60)
34	HIGH AMBIENT 175F - TEMP. SWITCH
36	ELBOW ASM PVC 2 IN DIA
37	HARNESS FUSE-JUMPER
38	COVER BOTTOM
39	ANODE FILL PLUG
45	GAS CONTROL VALVE (PV 120V - NG)
48	FV SENSOR DAM
9999	PRINTED AND ONLINEOWNERS AND INSTALL
