CG6498VVV 04 – OVEN/BASE
Written by
in

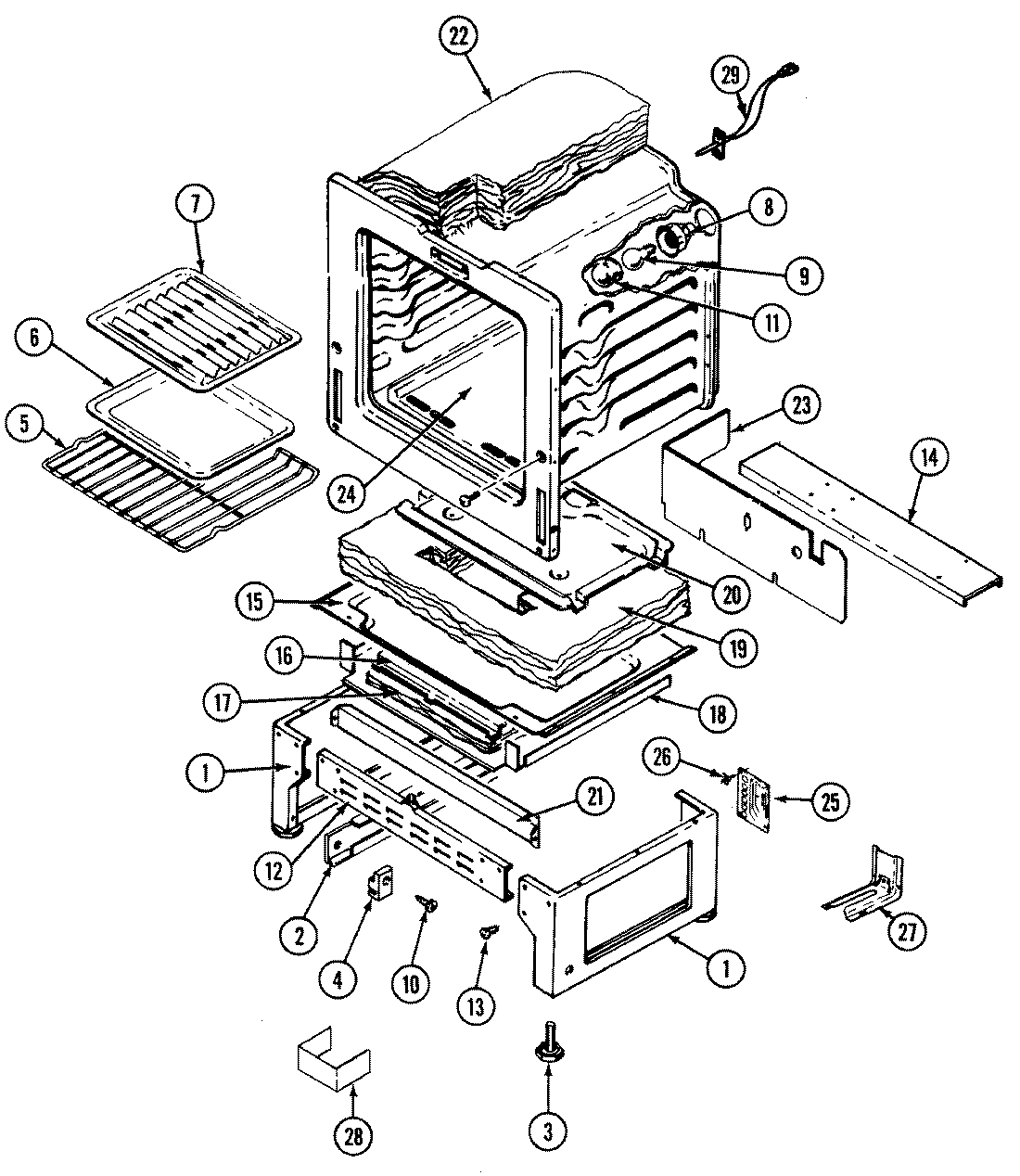

CG6498VVV 04 – OVEN/BASE
Products
Position
Product
NI
MAY 7401P037-60
NI
MAY 5185D274-60
1
MAY 74001705
2
MAY 3406F028-51
3
MAY 74001311
4
MAY 8004P033-60
5
WPW10282492 Whirlpool Oven Rack
6
MAY Y3401F02019
7
MAY Y3413F01619
8
WP7407P182-60 Whirlpool Lamp
9
RANGE ONLY 40W 120V APPL BULB
10
SCREW
11
WP9781049 Whirlpool Light Lens
12
MAY 4020F001-80
14
MAY 3807F476-51
15
MAY 7101P290-60
15
MAY 3804F112-51
16
MAY 3604F204-51
17
INSULATION, DRAWER & SHIELD
18
MAY 3604F205-51
19
MAY 4804F014-60
20
MAY 3401F024-45
21
MAY 3601F208-45
22
MAY 4804F036-60
22
MAY 7002P161-60
22
MAY 74001159
23
MAY 4005F429-51
24
MAY 5504M004-19
24
BAFFLE, OVEN BOTTOM
25
MAY 3807F439-51
25
MAY 7428P020-60
26
MAY 8004P020-60
27
MAY 3801F218-51
27
MAY 7101P289-60
28
MAY 4005F420-80
29
MAY 7430P009-60
←
