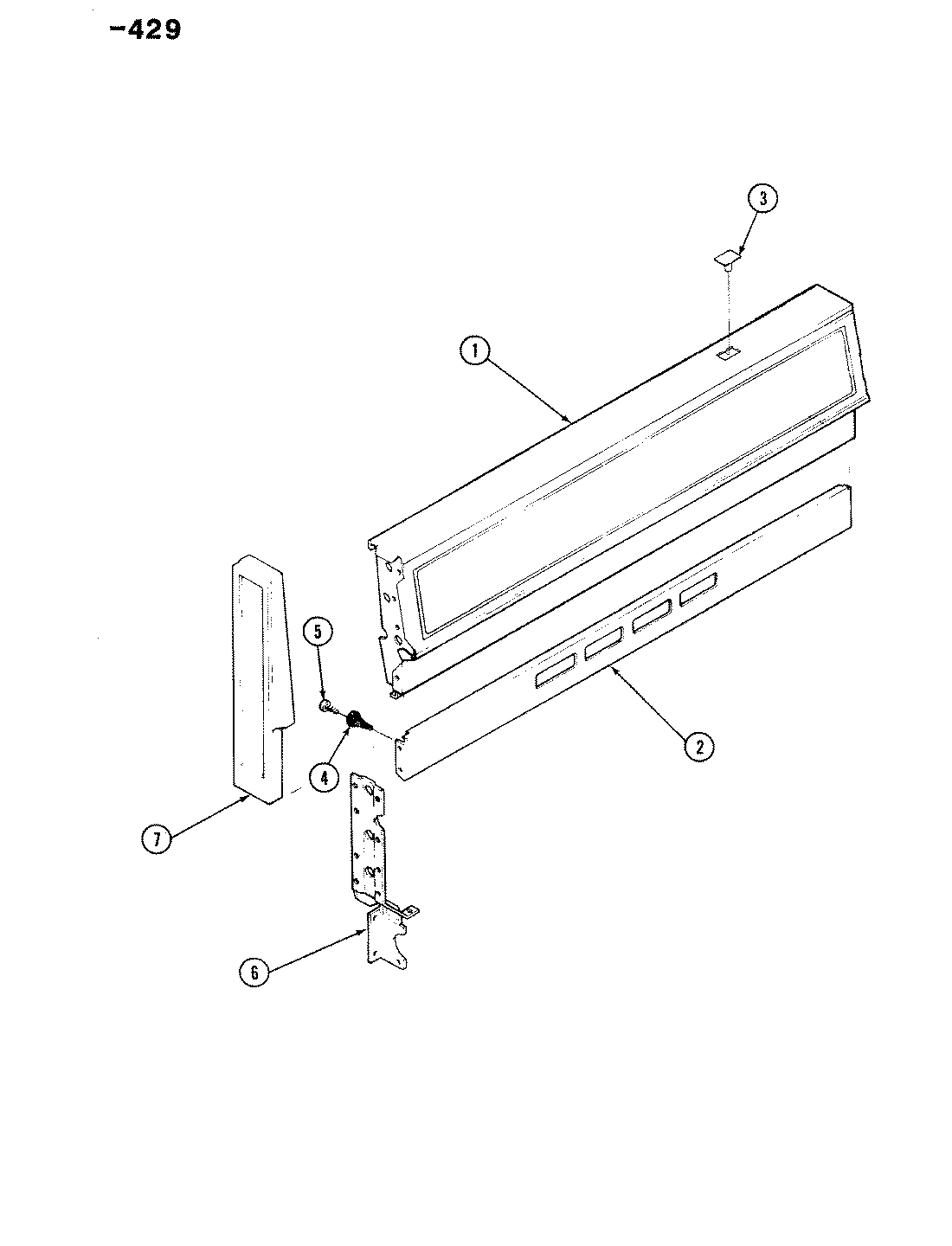

CG9616W429R 02 – CONTROL PANEL

Written by

Products

Position	Product
1	MAY 2601W289-81
1	MAY 2601W269-81
1	MAY 4005F071-80
1	MAY 4005F034-80
1	WP4159193 Whirlpool Screw
2	MAY 2620W018-00
2	MAY 7101P058-60
3	MAY 7718P009-60
3	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	MAY 7105P002-60
5	SCREW
6	MAY 3807W011-80
6	MAY 3807W010-80
7	MAY 7726P010-60
7	MAY 7726P021-60
