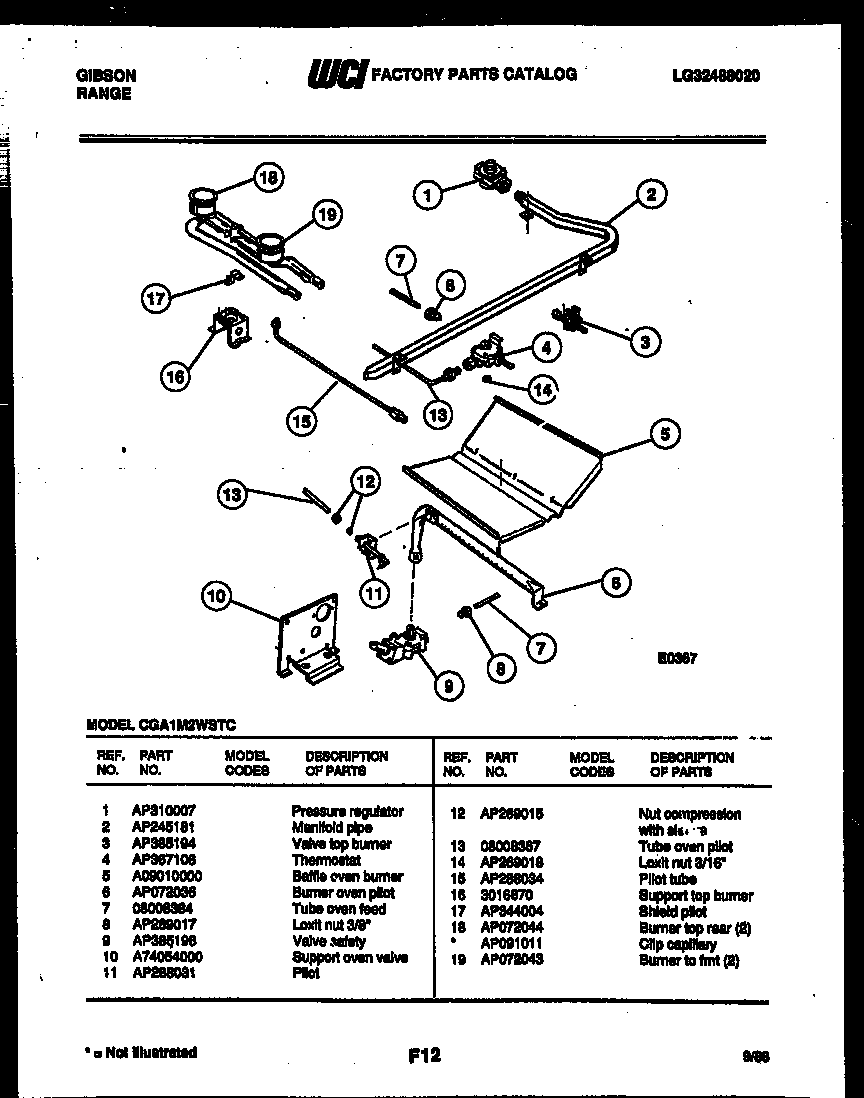

CGA1M2WSTC 05 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI AP245181
3	WCI AP385194
4	WCI AP367106
5	BAFFLE
6	BURNER OVEN
7	WCI 08008384
8	BUT – 3/8 LOXIT
9	VALVE SAFETY
10	SUPPORT
11	PILOT-OVEN
12	NUT COMPRESSION W/ SLEEVE
13	TUBE-PILOT FEED OVEN
14	NUT
15	PILOT TOP BURNER (2)
16	SUPPORT – TOP BURNER
17	WCI AP344004
18	BURNER-REAR TOP
18A	CLIP, CAP. TUBE
19	BURNER-FRONT TOP
