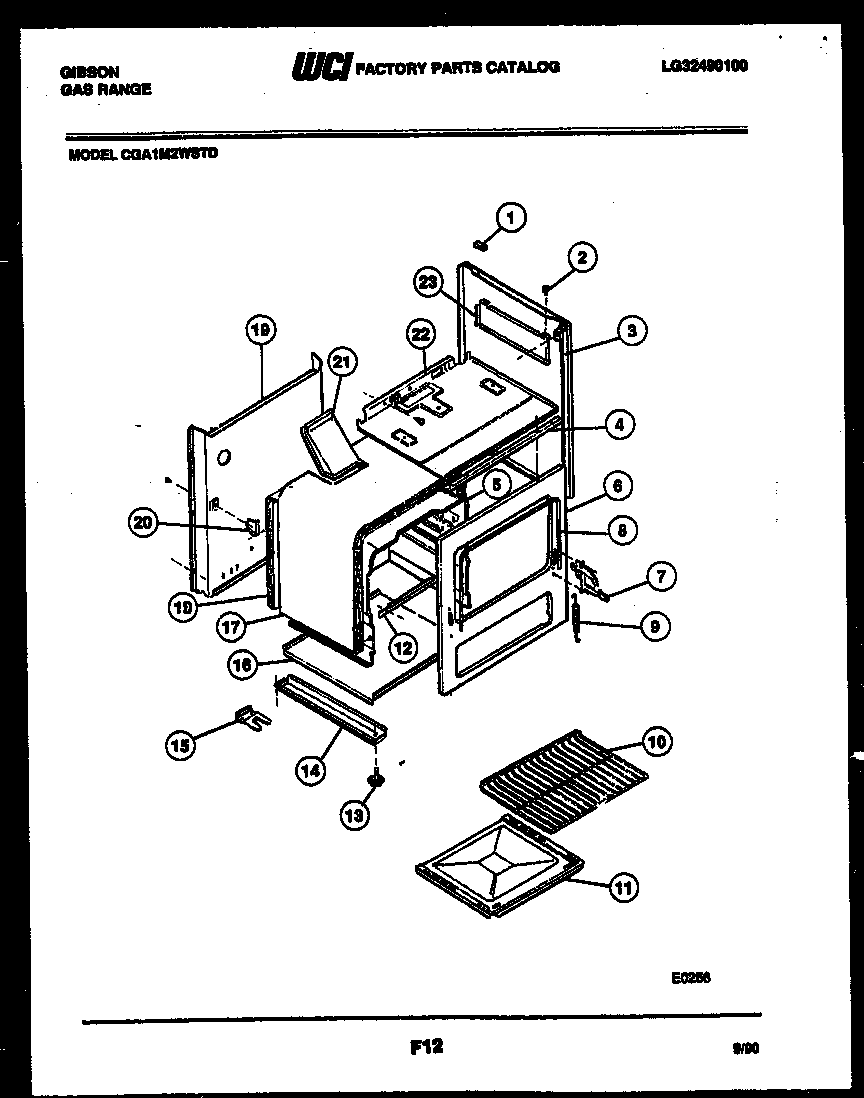

CGA1M2WSTD 06 – BODY PARTS

Products

Position	Product
*33570	CLIP,BODYSIDE
1	GROMMET-MAINTOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	SUPPORT-CONTROL PNL
5C	OVEN LINER-BACK
5B	OVEN LINER-TOP
5	OVEN LINER-SIDE RH
5A	OVEN LINER-SIDE LH
6	FRAME-FRONT
7A	HINGE ASSY-RH
7	318348801 Frigidaire Oven Left Side Door Hinge
8	SEAL OVEN DOOR
9	SPRING-OVEN DOOR
10	WCI 3016158
11	OVEN-BOTTOM
12	SUPPORT-OVEN BOTTOM
14	Rail,base ,RH
14A	RAIL-BASE, LH
15	BRACKET-INSTALLATION (2)
16	MAIN BOTTOM
17	INSULATION WRAPPER
18	WCI 3131044
19	WCI 3131045
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	BURNER BOX
23	SHIELD-BURNER BOX RH
23A	SHIELD-BURNER BOX LH
