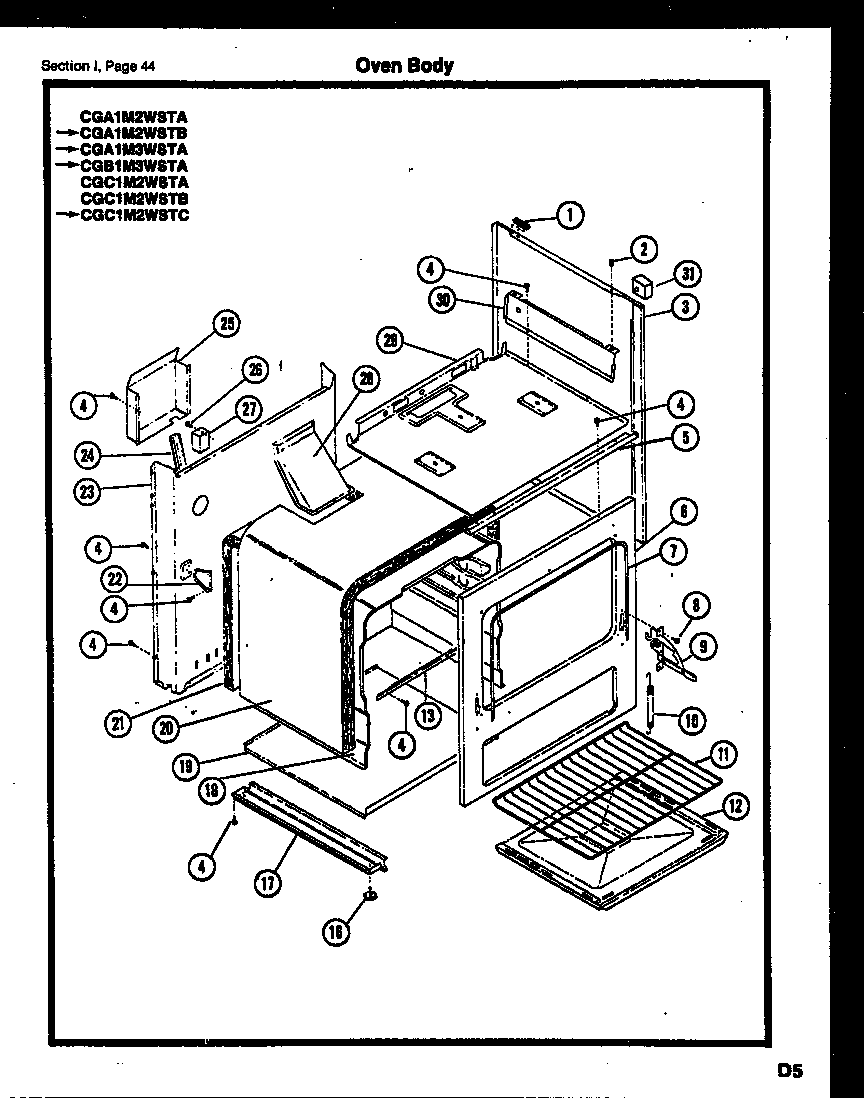

CGA1M3WSTA 30 – OVEN BODY

Products

Position	Product
*21463	OWNERS USE AND CARE BOOK
1	WCI AP172004
2	WCI AP172002
3	WCI A64013000
4	WCI AP051056
5	SUPPORT-CONTROL PNL
6	WCI A98386001
7	WCI AP326050
8	5304500008 Frigidaire Oven Screw
9	WCI A96068000
9A	318348801 Frigidaire Oven Left Side Door Hinge
10	WCI AP339053
11	WCI AP301042
12	WCI A51105002
13	SUPPORT, BTM
14	WCI AP051045
15	WCI AP391021
16	WCI AP059016
17	WCI A55005000
18B	WCI A51147002
18A	WCI A51131002
18	WCI A51130002
18C	WCI A51142002
19	PANEL, BOTTOM
20	WCI AP207063
21	WCI AP207066
22	WCI A74060000
23	WCI A05085000
24	CHANNEL – MAIN BACK WIRE
25	WCI A32136000
27	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
28	WCI A92049000
29	WCI A11078000
30A	HEAT SHIELD, LH (NON-ILLUSTRATED)
30	HEAT SHIELD-RH
31	CORNER PAD – END PANELS (2)
