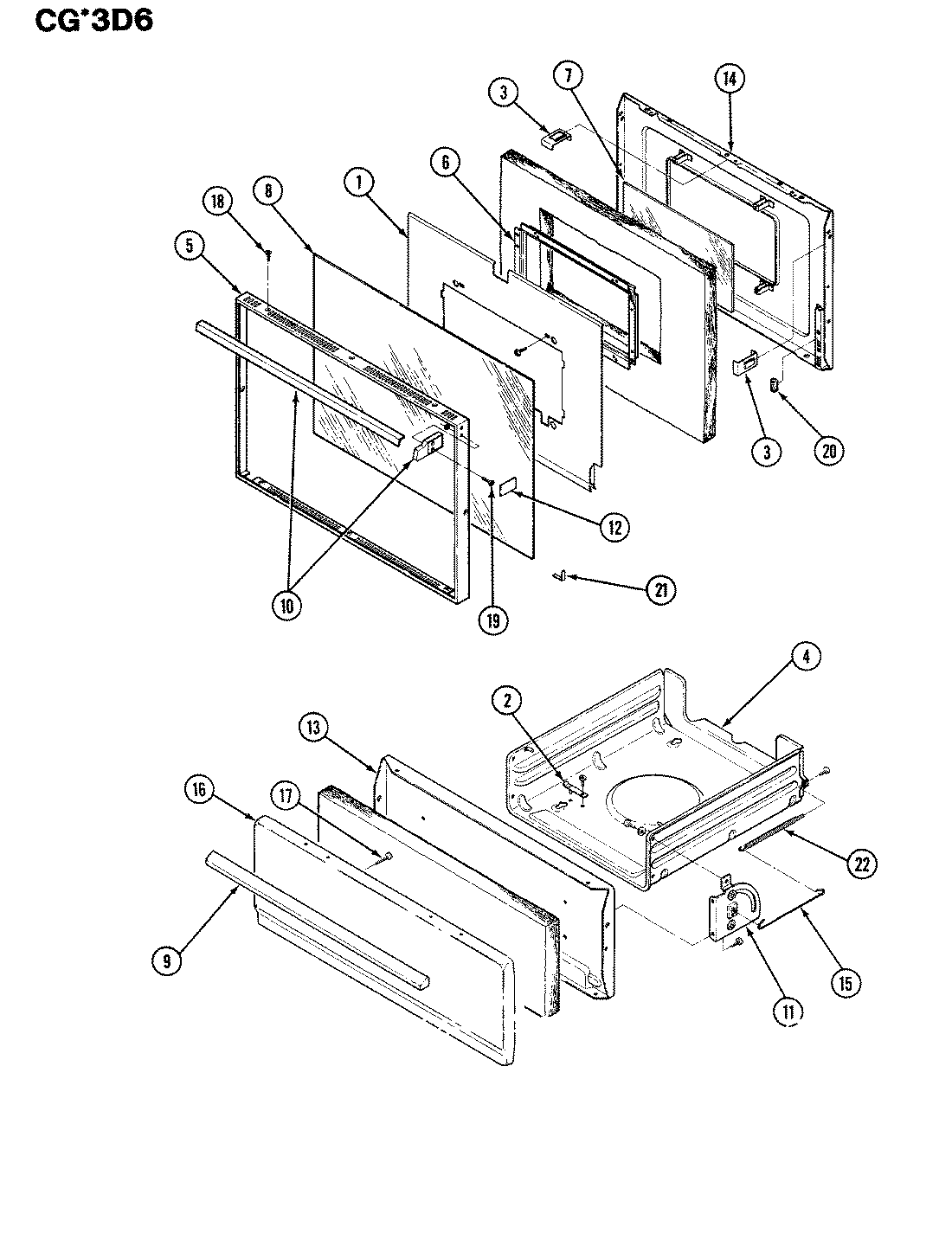

CGA3D6CLVK 04 – DOOR/DRAWER – Aparts

CGA3D6CLVK 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 3601F094-51
2	MAY 8002P001-60
3	CLIP, DOOR
4	MAY 3407W009-23
5	MAY 7706P243-60
6	MAY 3603F013-80
7	MAY 7902P035-60
8	MAY 7902P274-60
9	MAY 7701P030-60
10	MAY 7701P047-60
11	MAY 3418A063-34
11	MAY 3418A062-34
12	MAY 7728P012-60
13	MAY 2404F021-23
14	MAY 2402W091-23
14	MAY 2402W091-16
15	MAY 7807P001-60
16	MAY 2416F025-74
17	74002481 Whirlpool Screw
18	WP7101P126-60 Whirlpool Screw
19	MAY 7101P123-60
20	MAY 7208P011-60
21	MAY 8010P045-60
22	MAY 7803P014-60
