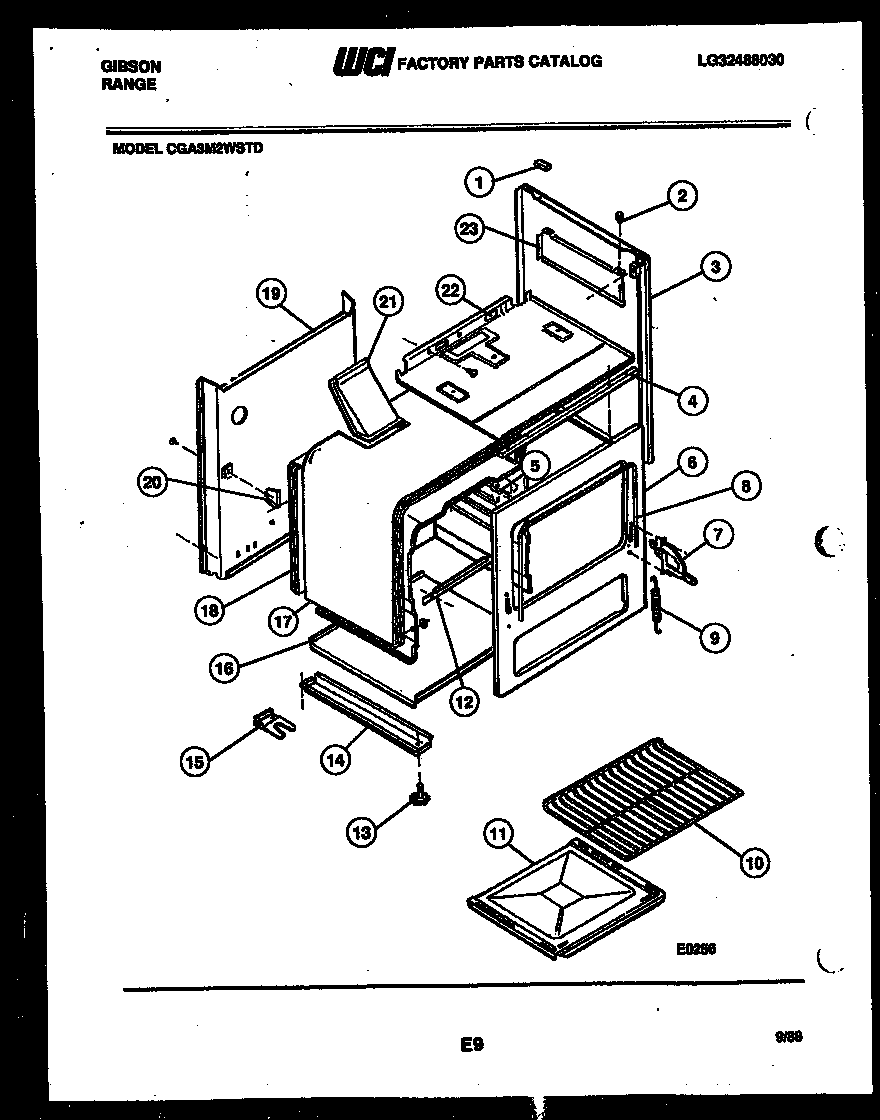

CGA3M2WSTD 06 – BODY PARTS

Products

Position	Product
*14138	CLIP,BODYSIDE
1	GROMMET MAIN TOP
2	WCI AP172002
3	WCI A64013000
4	SUPPORT-CONTROL PNL
5	OVEN LINER-SIDE RH
5C	OVEN LINER-BACK
5B	OVEN LINER-TOP
5A	OVEN LINER-SIDE LH
6	WCI 3017713
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	WCI A96068000
8	WCI AP326050
9	WCI AP339053
10	WCI 3016158
11	OVEN-BOTTOM
12	SUPPORT, BTM
13	WCI 3051080
14	BASE-RAIL (2)
15	BRACKET-INSTALLATION (2)
16	PANEL, BOTTOM
17	INSULATION WRAPPER
18	WCI 3131044
19	WCI A05085000
20	WCI A74060000
21	WCI 3017173
22	BURNER BOX
23	HEAT SHIELD-RH
23A	HEAT SHIELD, LH (NON-ILLUSTRATED)
