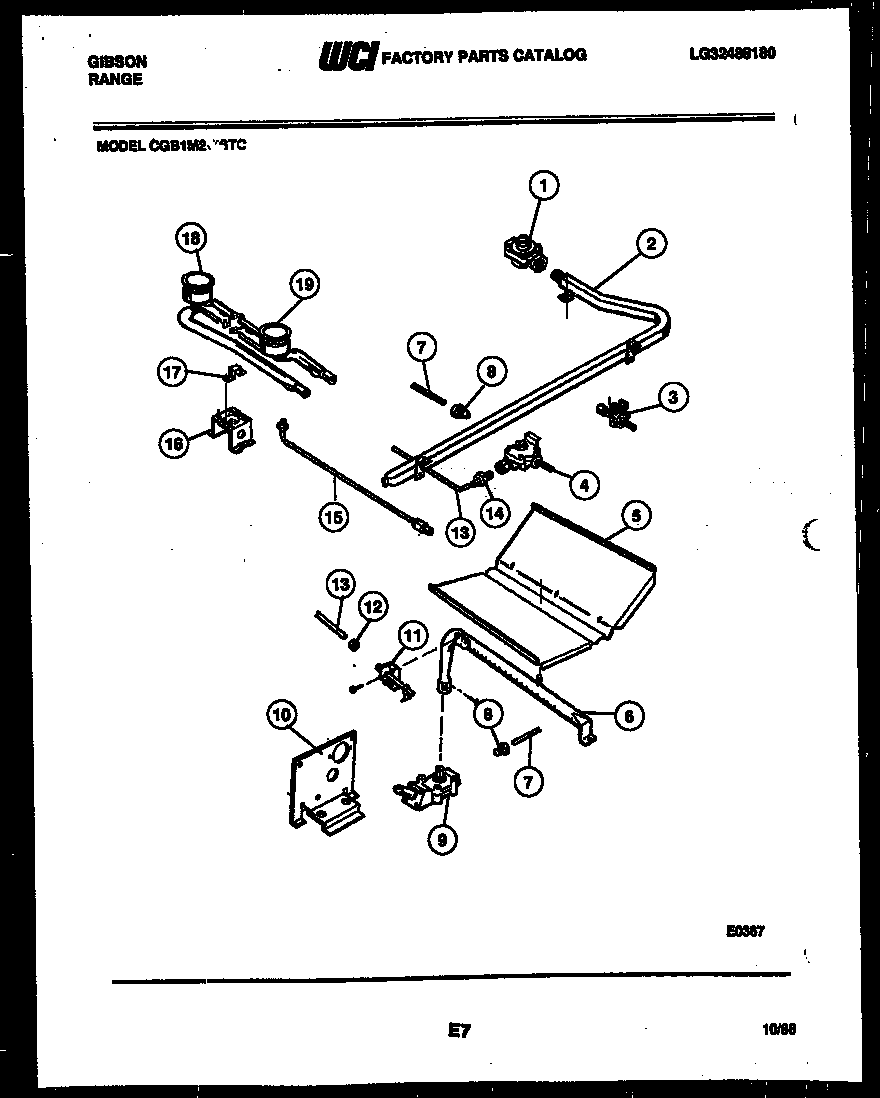

CGB1M2WSTC 04 – BURNER PARTS

Products

Position	Product
*13336	CLIP CAPILLARY (2)
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08014560
3	WCI 3131057
4	WCI 08013927
5	BAFFLE-OVEN BURNER
6	WCI 3131062
7	TUBE-FEED OVEN
8	WCI 3131064
9	VALVE SAFETY
10	SUPPORT-OVEN SAFETY VALVE
11	PILOT – OVEN
12	NUT & SLEEVE
13	TUBE OVEN PILOT
14	WCI 3131074
15	PILOT-TOP BURNER (RIGHT)
16	SUPPORT – TOP BURNER
17	STRAP – PILOT SHIELD
18	BURNER – TOP REAR
19	BURNER – TOP FRONT
