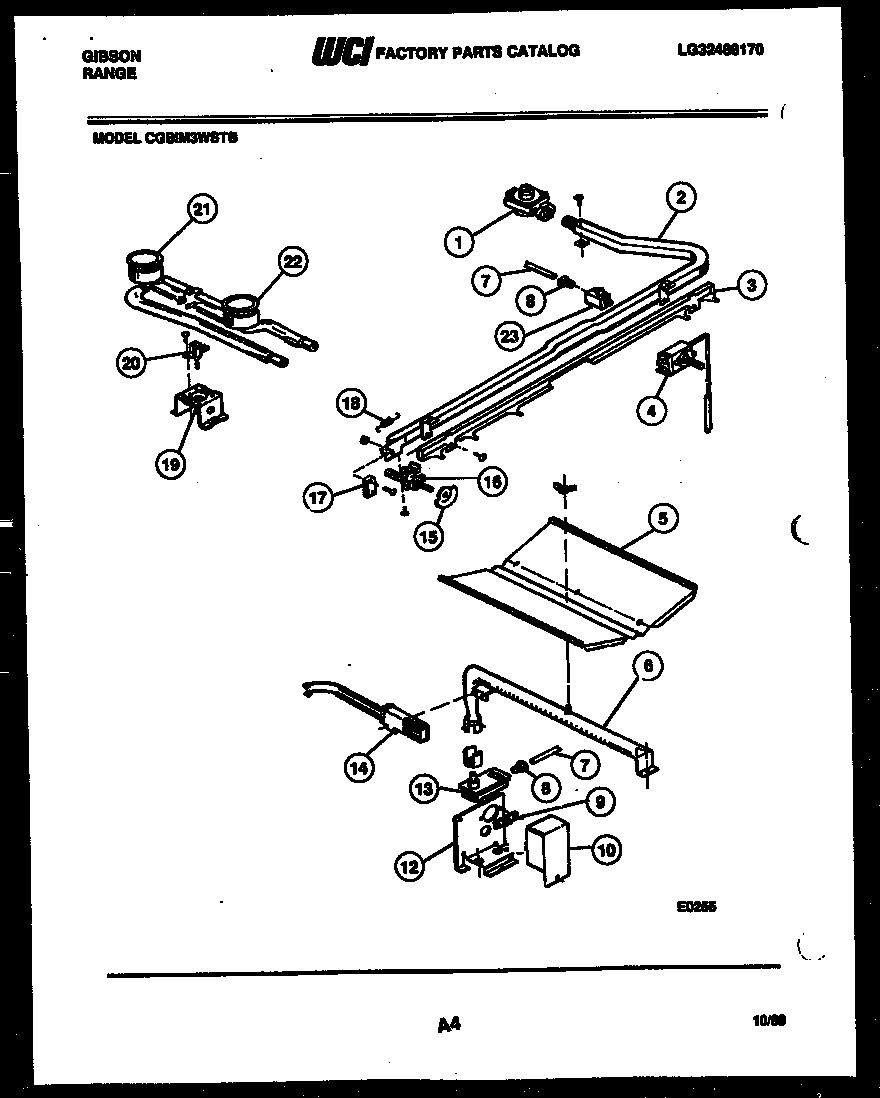

CGB1M3WSTB 04 – BURNER PARTS

Products

Position	Product
*12769	CLIP CAPILLARY (2)
1	5308007974 Frigidaire Pressure Regulator
2	WCI 3017725
3	WCI 3017726
4	THERMOSTAT
5	BAFFLE-OVEN BURNER
6	WCI 3131084
7	TUBING-OVEN SPLY 3/8
8	LOXIT NUT
9	TERMINAL BLOCK
10	COVER – OVEN SAFETY VALVE
12	SUPPORT-OVEN SAFETY VALVE
13	WCI AP385181
14	5303935066 Frigidaire Oven Flat Igniter 17" Leads
15	CAM TOP BURNER VALVE
16	WCI 3131057
17	MICRO – SWITCH
18	WCI 3131096
19	SUPPORT – TOP BURNER
20	IGNITER 36“
21	BURNER – TOP REAR
22	BURNER – TOP FRONT
23	WCI 3131099
