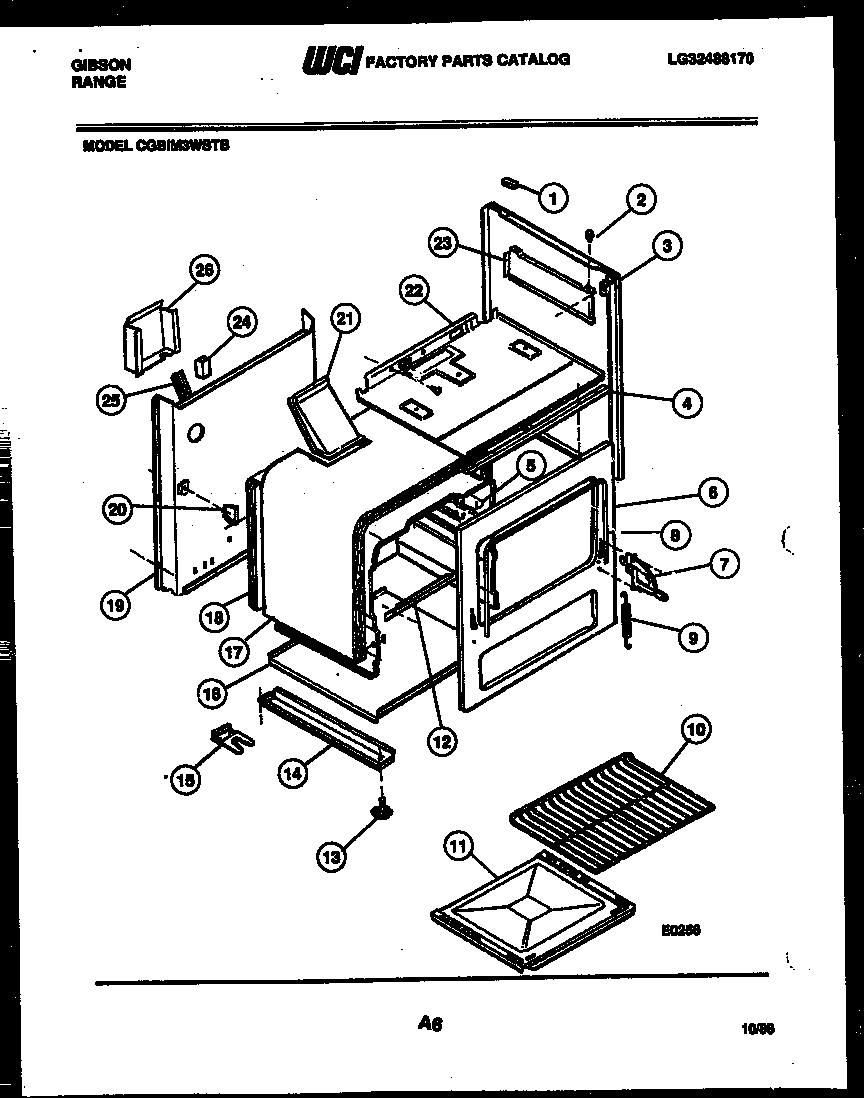

CGB1M3WSTB 05 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	WCI 08014019
3	PANEL-BODYSIDE (WHITE) (2)
4	SUPPORT-CONTROL PANEL
5B	OVEN LINER TOP
5C	OVEN LINER BACK
5A	OVEN LINER-SIDE LH
5	OVEN LINER-SIDE RH
6	WCI 3017601
7	318348801 Frigidaire Oven Left Side Door Hinge
7A	CAM-DOOR RIGHT HAND
8	SEAL OVEN DOOR
9	SPRING DOOR (2)
10	WCI 3016128
11	OVEN BOTTOM
12	SUPPORT-OVEN BOTTOM
13	WCI 3051080
14	BASE-RAIL (2)
15	BRACKET-INSTALLATION (2)
16	MAIN BOTTOM
17	WCI 3017171
18	WCI 3017172
19	COVER – SPARK MODULE
20	SUPPORT-REAR OVN (2)
21	WCI 3017173
22	WCI 3017450
23A	WCI 3131054
23	WCI 3131053
23B	CLIP BACKSPLASH CORNER
24	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
25	CHANNEL – MAIN WIRE
25A	CORD – POWER
26	WCI 3131047
