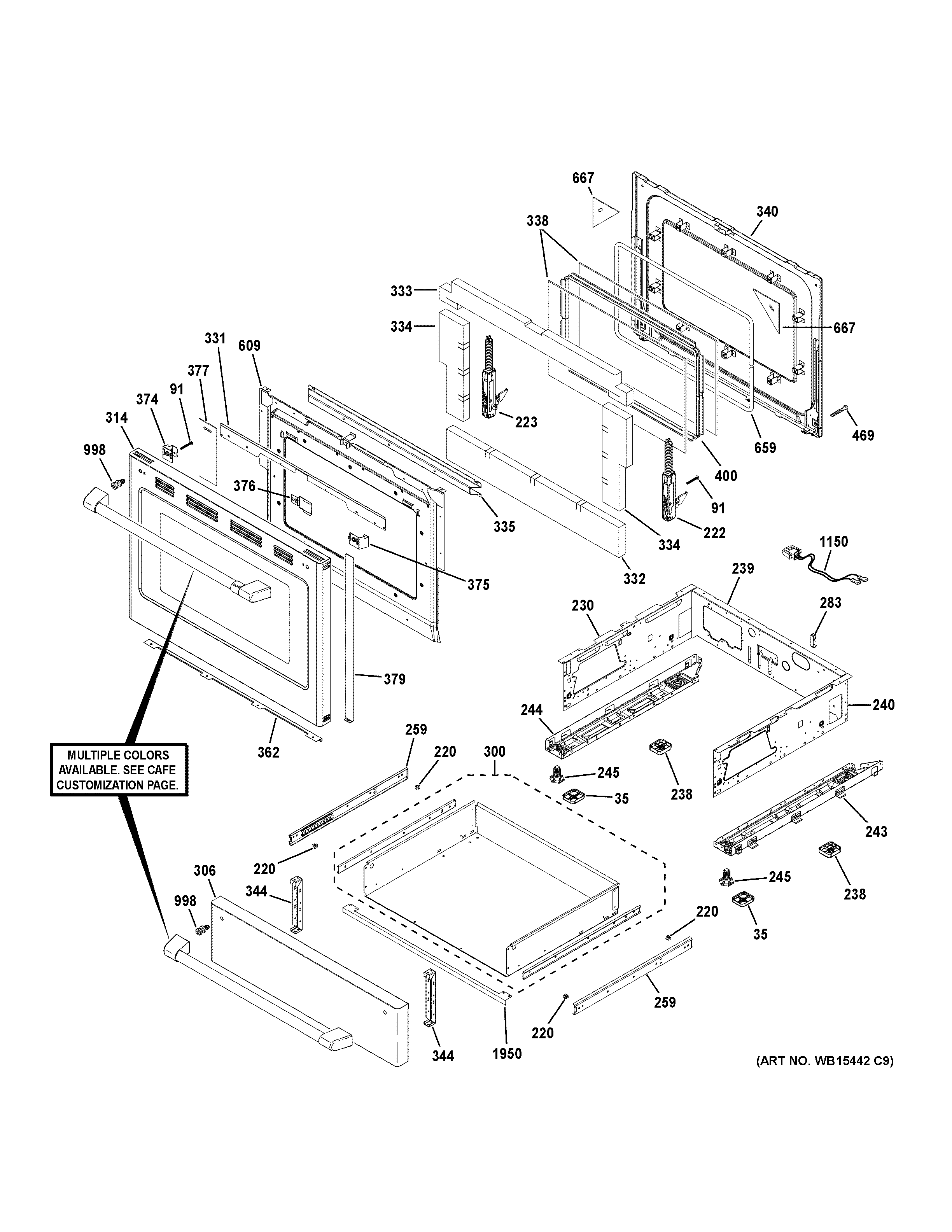

CGB500P2M1S1 DOOR & DRAWER PARTS

CGB500P2M1S1 DOOR & DRAWER PARTS

Written by

in

CGB500P2M1S1 DOOR & DRAWER PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
91WB01T10008 GE Oven Screw 10-32
220GEN WB02K0008
222WB10X24777 GE Oven Door Hinge
223WB10X26464 GE Oven Left Door Hinge
230GEN WB63K0002
238WB16X20449 GE Oven Base Spacer
239WB63K10203 GE Oven Rear Broil Panel
240WB63K3 GE Oven Panel Side Broil
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
259WB39K10020 GE Oven Right Drawer Slide Assembly
259WB39K10021 GE Oven Left Drawer Slide Assembly
283WB02X21679 GE Oven Wire Clip
300WB49X26562 GE Oven Drawer Body Assembly Kit
306WB56X31644 GE Oven Stainless Steel Drawer Panel
314WB56X31638 GE Stainless Steel Glass Pane
331INNER DOOR DEFLECTOR
332WB35X21566 GE Door Insulation
333INSULATION DOOR
334WB35X21567 GE Door Insulation
335WB34X21570 GE Door Stiffener
338WB57K10174 GE Range Crystal Window Door
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
362WB07X28885 GE Range Barrier Door
374WB34X31703 GE Bracket Fastener
375WB34X31701 GE Fastener Bracket
376KNOB BLOCKER
377WB34X31737 GE Insulation Bracket
379HEAT SINK DOOR
400WB34X28742 GE Window Frame Assembly
469GEN WB01K0078
609WB34X24749 GE Door Guard
659WB35X21685 GE Oven Cord Fiberglass
667WB35X21691 GE Oven Door Insulation
998WR01X11007 GE Refrigerator Fastener Door Handle
1150WB18X28724 GE Drawer Harness
1950WB01K10072 GE Oven Front Bottom Trim
