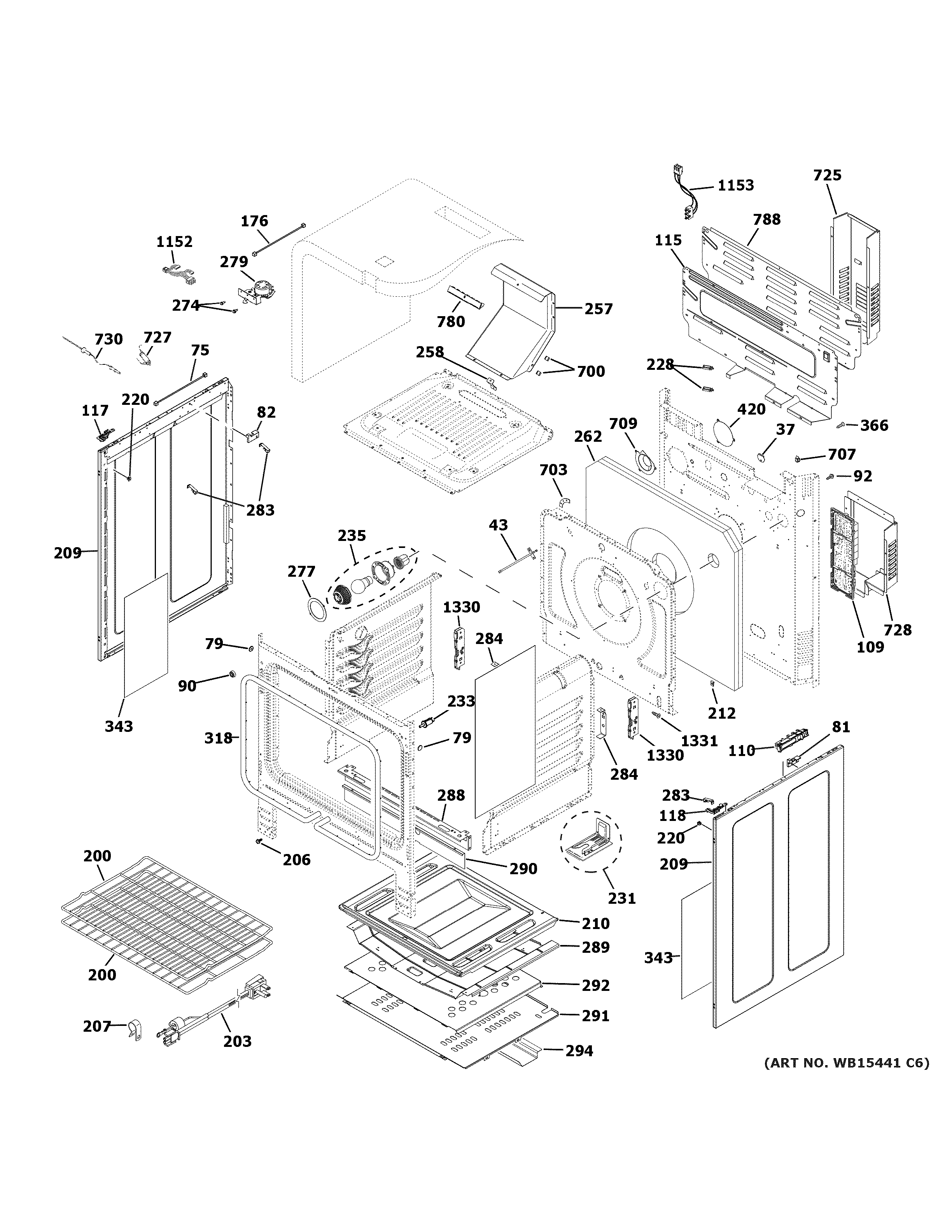

CGB500P3M1D1 BODY PARTS

CGB500P3M1D1 BODY PARTS

Written by

in

CGB500P3M1D1 BODY PARTS

Products

PositionProduct
37WB34X24753 GE Igniter Cover
43WB24X25557 GE Oven Sensor Assembly
75WB18X25597 GE Ground Harness
79SPACER SIDE
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
109WB27X32185 GE Machine Board with Frame
110WB13X24741 GE Oven Spark Module
115WB34X28955 GE Back Cover
117WB02X24939 GE Range Side Manifold Bracket
118WB02X24940 GE Range Side Bracket Manifold
176WB18X27594 GE Ground Harness
200OVEN RACK
203WB18X28855 GE Oven Power Cord
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
209WB56X29670 GE Oven Side Panel
210WB35X37968 GE Heat Shield
212WB1K2 GE Oven Speednut
220GEN WB02K0008
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
257WB34X20294 GE Vent Assembly
258BRACE VENT
262WB35X28786 GE Oven Back Insulation
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279WB10X24780 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
284WB2K32 GE Oven Support Bracket
288BRACE
289WB34K10086 GE Oven Lower Heat Shield
290GEN WB34K0012
291WB63K16 GE Oven Bottom Guard
292WB63K10187 GE Bottom Inner Guard
294GEN WB63K10040
318WB32X29539 GE Oven Gasket Assembly
343WB35X26892 GE Oven Side Panel Foil
366WB1X536 GE Oven Screw
420GEN WB34K0016
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
707WB02K10267 GE Wire Clip
709WB08K10018 GE Range Light Cover
725WB34K10097 GE Oven Motor Cover
727WB34K10121 GE Oven Probe Receptacle & Harness
728CONTROL COVER
730WB20T10024 GE Oven Thermistor Probe
730WB44X10051 GE Oven Convection Element
780WB38K10022 GE Oven Diffuser Vent
788WB34X21575 GE Oven Back Cover
1152WB18X31614 GE Latch Harness
1153WB18X28690 GE Oven Direct Connect Harness
1330WB10X28563 GE Oven Receiver Hinge
1331WR01X10065 GE Screw
