CGB500P3M1D1 CONTROL PANEL & COOKTOP

CGB500P3M1D1 CONTROL PANEL & COOKTOP

Written by

in

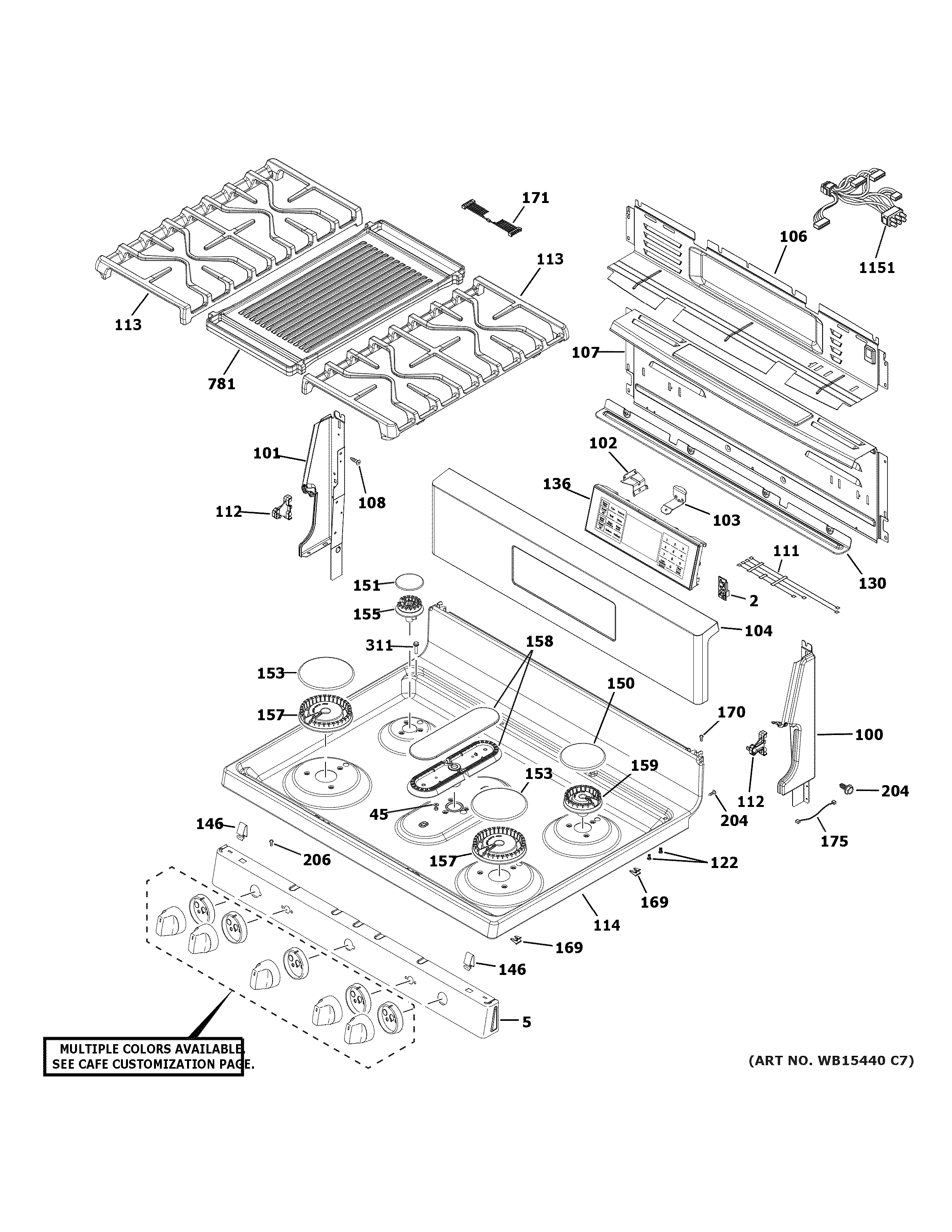

CGB500P3M1D1 CONTROL PANEL & COOKTOP

Products

PositionProduct
2WB27X33353 GE Wi-Fi Module Kit
5DARK SLATE MANIFOLD PANEL
45GEN WB01X1378
100WB07X29143 GE Oven End Support
101WB07X29144 GE Oven End Support
102BRACKET CONTROL
103BRACKET CONTROL
104WB36X31706 GE Dark Slate Backguard
106WB34X31704 GE Black Upper Back Cover
107WB34X24746 GE Oven Back Cover Lower
108WB1X5364 GE Oven Mounting Screw
111WB18X26980 GE Oven Range Electrode and Harness
112WB14K10003 GE Range Top Hinge
113WB31X28755 GE Oven Grate Assembly
114WB62X24887 GE Range Bracket and Top Assembly
122WB01X24735 GE Oven CKT Screw
130WB34X31700 GE Backguard for Dark Dorian Gray Oven
136WB27X31750 GE Washing Machine Glass Touch Board Assembly
146WB02X26569 GE Range Top Clip
150WB29K10023 GE Oven Burner Cap Assembly
151WB16X28654 GE Oven Burner Cap Cover
153CAP BURNER ASM (15K)
155WB16X24721 GE Oven Range Small Cooktop Burner V2
157WB16X24722 GE Oven Gas Range XL Surface Burner
158WB16K10076 GE Oven Oval Burner Assembly
159WB16X24724 GE Oven Medium Burner
169WB02X24976 GE Oven Igniter Clip V2
170SCREW MTG END CAP
171HARNESS INTERFACE
175WB18X24748 GE Oven Ground Harness
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
311BUMPER
781WB31X24998 GE Oven Reversible Grille
1151WB18X31620 GE Main Harness
