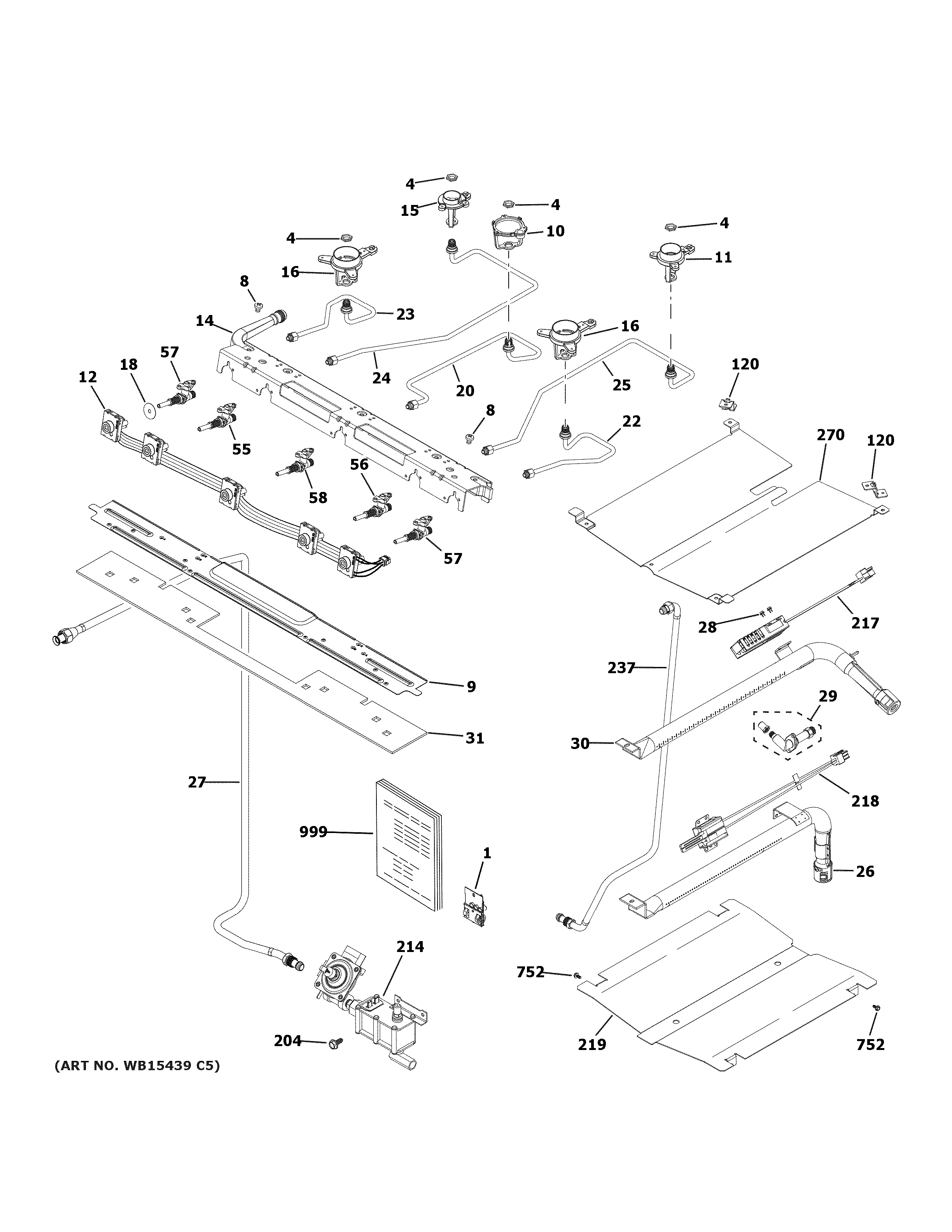

CGB500P3M1D1 GAS & BURNER PARTS

Products

Position	Product
1	WB28X29254 GE Range Natural Gas High Altitude Kit
1	WB28X29255 GE Range LP High Altitude Kit
1	WB28X39148 GE LP Conversion Kit
4	WB01K10037 GE Oven Economic Nut
8	WB01K10067 GE Oven Screw 1/4" HD 20
9	WB34X20680 GE Support Manifold
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02X24727 GE Oven Right Front Burner Jet with Electrode
12	WB18X31618 GE Switch Harness
14	MANIFOLD PIPE
15	WB02X24728 GE Range Small Injector
16	WB02X24725 GE Oven Inlet XLV2
18	WB35X21708 GE Valve Seal
20	WB28X24762 GE Oven Surface Burner Orifice Holder
22	WB28X25593 GE Oven Orifice Holder
23	WB28X24761 GE Oven Surface Burner Orifice Holder
24	WB28X24763 GE Oven Right Rear Orifice Holder
25	WB28X31697 GE Orifice Holder
26	WB16X28250 GE Oven Bake Burner
27	WB28X24772 GE Oven Gas Tube Connector
28	WB1X1293 GE Oven Screw
29	WB28X28697 GE Oven 90-Degree Elbow Assembly
30	WB16X28251 GE Range Broil Burner
31	WB35X24985 GE Burner Box Insulation
55	WB21X25979 GE Oven Burner Valve 270
56	VALVE BURNER 270
57	VALVE BURNER 270
58	WB21X20471 GE Oven Burner Valve
120	WB02X20735 GE Top Rear Support
204	WB1K5062 GE Oven Screw
214	VALVE CONTROL ASM
217	WB13X24755 GE Broil Igniter Glow Bar
218	IGNITER GLOWBAR
219	OVEN DEFLECTOR
237	WB28X24773 GE Oven Burner Supply Tube
270	WB34X28689 GE Deflector
752	WZ4X345D GE Screw Package 12 C92
999	PM INSTALL INSTRUCTIONS
999	PM QUICK GUIDE
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
