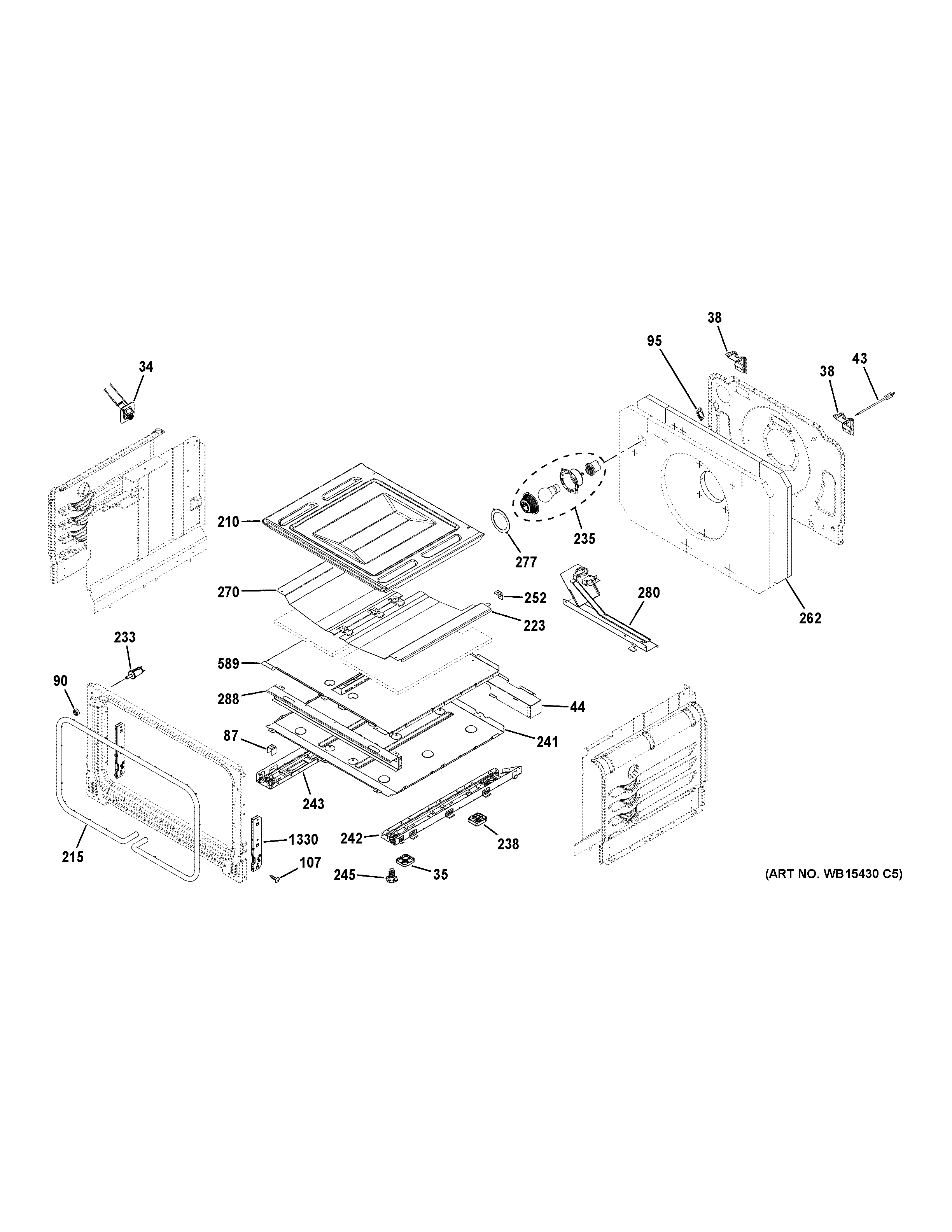

CGB550P3M1D1 LOWER OVEN

CGB550P3M1D1 LOWER OVEN

Written by

in

CGB550P3M1D1 LOWER OVEN

Products

PositionProduct
34WB34K10134 GE Oven Receptacle Assembly
35WB16X20448 GE Oven Spacer Base
38BRACKET CAVITY
43WB24X25557 GE Oven Sensor Assembly
44WB34X20526 GE Oven Cover Shutter
87WB56X20457 GE Bottom Floor Barrier
90WB02X28738 GE Oven Front Frame Bumper
95WB02K10337 GE Cover Cap
107WB01K10030 GE Screw Assembly
210WB34X24912 GE Oven Bottom
215WB32X29538 GE Oven Gasket Assembly
223WB34X20444 GE Oven Deflector
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20449 GE Oven Base Spacer
241WB63X20441 GE Bottom
242WB63X25481 GE Oven Support Base Right
243WB63X25480 GE Oven Support Base Left
245WB02K10182 GE Oven Leveling Leg
252WB2K3 GE Angle Support
262WB35X28789 GE Oven Back Insulation
270WB34X20443 GE Oven Deflector
277WB32K10044 GE Oven Light Gasket
280WB10X28795 GE Automatic Latch
288WB02X20414 GE Brace
589WB63X21725 GE Bottom Duct
1330WB10X28563 GE Oven Receiver Hinge
