CGB550P3M1D1 UPPER OVEN

CGB550P3M1D1 UPPER OVEN

Written by

in

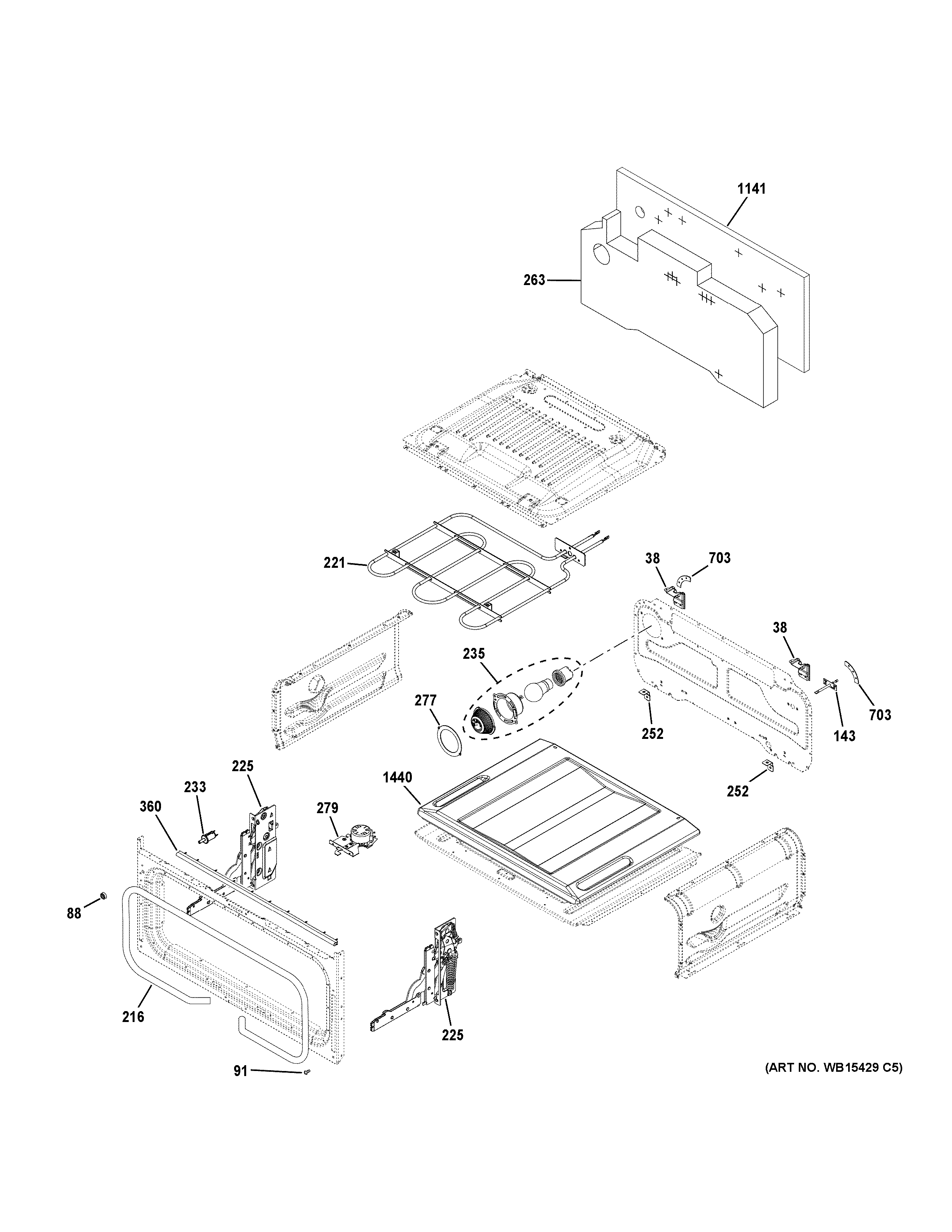

CGB550P3M1D1 UPPER OVEN

Products

PositionProduct
38BRACKET CAVITY
88WB02X28737 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
143SENSOR ASM
216WB32K10047 GE Oven Gasket
221BROIL ELEMENT
225WB10X28782 GE Oven Right-Hand Hinge Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
252WB2K3 GE Angle Support
263WB35X28788 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X24930 GE Oven Automatic Latch
360WB35X25645 GE Drawer Gasket Assembly
703BRACKET OVEN
1141WB35X28790 GE Oven Back Insulation
1440WB63X24934 GE Oven Bottom
