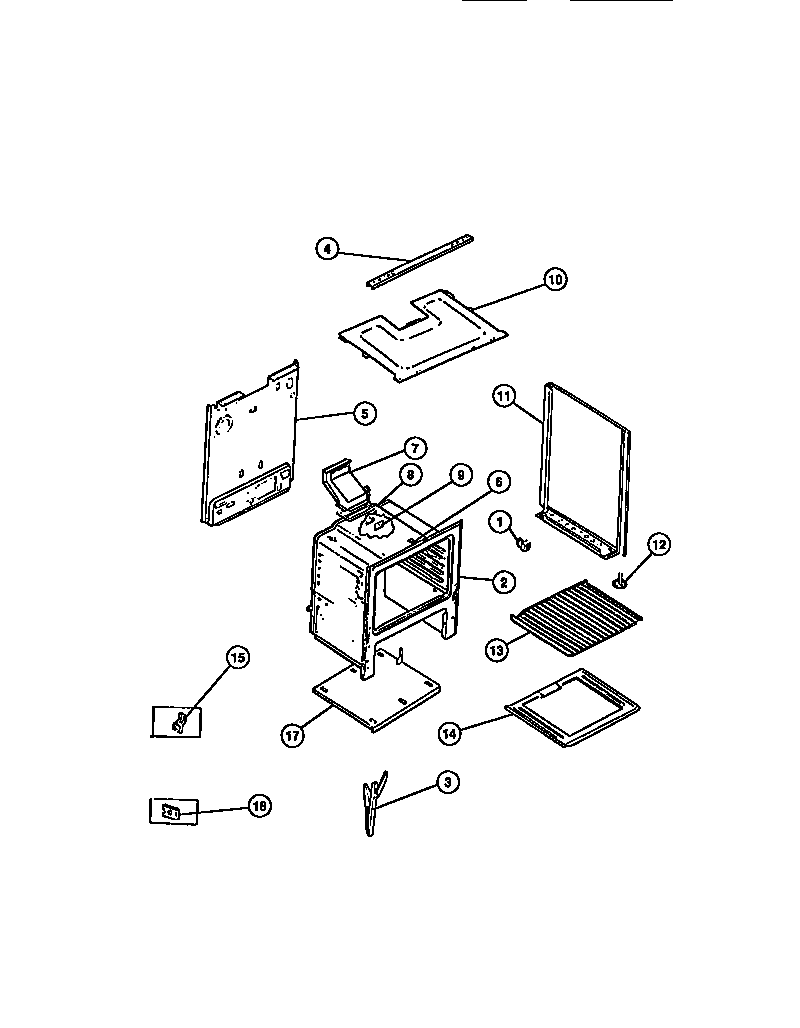

CGC1M1DXC 07 – BODY

CGC1M1DXC 07 – BODY

Written by

in

CGC1M1DXC 07 – BODY

Products

PositionProduct
*85885SHIELD-FLUE, (NON-ILLUSTRATED)
*85890316064600 Frigidaire Oven Support
*85889COVER-VENT
*858863051218 Frigidaire Oven Plate
*85887ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3WCI 316007002
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11WCI 5303269543
11WCI 5303269545
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14INSULATION, OVEN WRAPPER
14INSUL – OVEN BACK (NON-ILLUSTRATED)
14BTTM-OVEN
155303284616 Frigidaire Range Bulb Clip Thermostat
17WCI 5303270160
183203010 Frigidaire Clip
