CGC1M1DXD 07 – BODY

CGC1M1DXD 07 – BODY

Written by

in

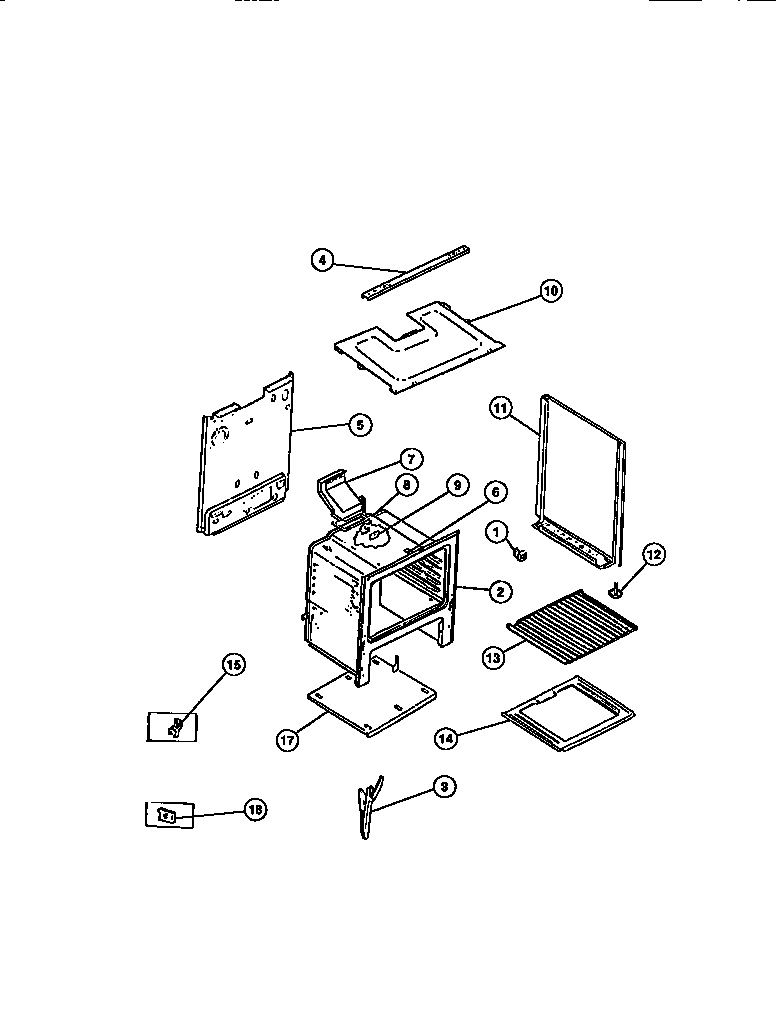

CGC1M1DXD 07 – BODY

Products

PositionProduct
*30411INSULATION, OVEN WRAPPER
*30410INSUL – OVEN BACK (NON-ILLUSTRATED)
*30413316064600 Frigidaire Oven Support
*30409SHIELD-FLUE, (NON-ILLUSTRATED)
*30408ANTI-TIP KIT (NOT ILLUSTRATED)
*304073051218 Frigidaire Oven Plate
*30412COVER-VENT
1SPACER-BODYSIDE, (8)
3WCI 316007002
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11WCI 5303269545
11WCI 5303269543
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14BTTM-OVEN
15WCI 5303280586
17WCI 5303270160
183203010 Frigidaire Clip
