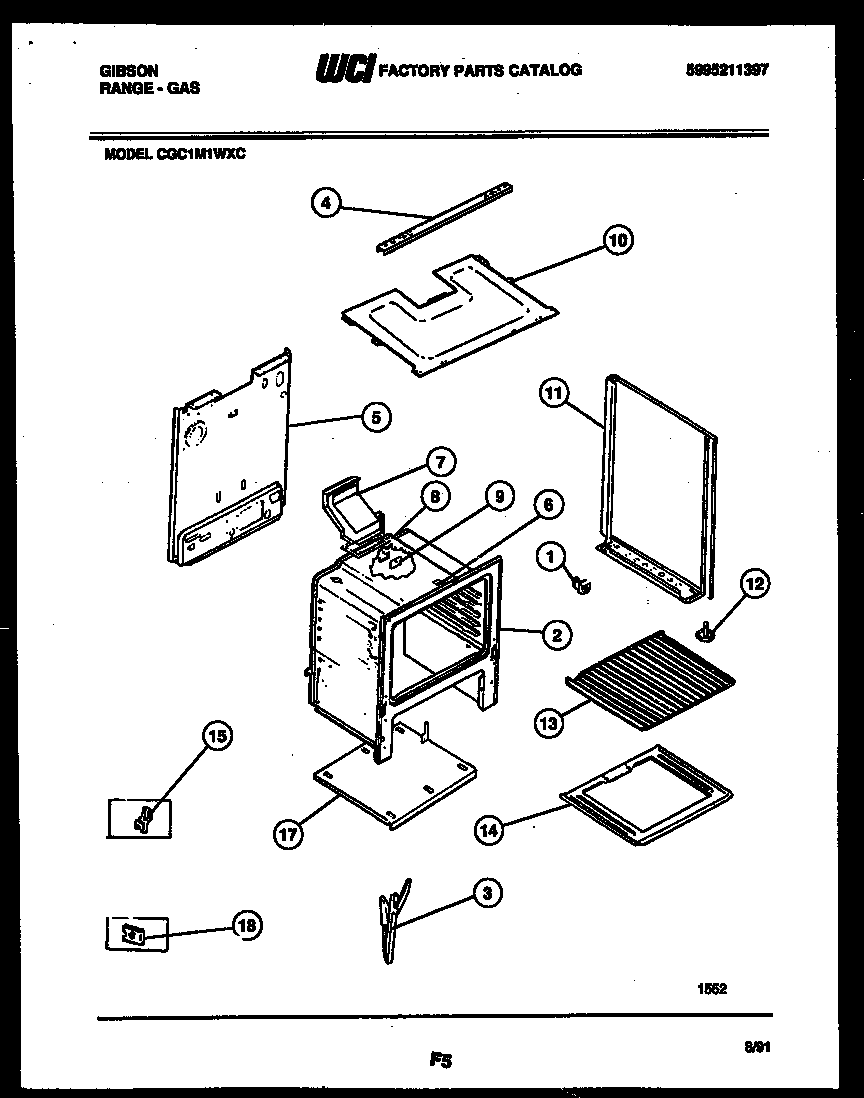

CGC1M1WXC 07 – BODY PARTS

CGC1M1WXC 07 – BODY PARTS

Written by

in

CGC1M1WXC 07 – BODY PARTS

Products

PositionProduct
*45547SHIELD-FLUE, (NON-ILLUSTRATED)
*45547ANTI-TIP KIT (NOT ILLUSTRATED)
*455473051218 Frigidaire Oven Plate
1SPACER-BODYSIDE, (8)
3WCI 316007002
4WCI 3203394
5WCI 3203082
6COVER-OVEN FRONT
7316204402 Frigidaire Oven Flue
8316542102 Frigidaire Flue Gasket
9COVER-IGNITOR
10BURNER BOX BOTTOM
11PNL-B/S-LH-WHITE
11WCI 5303269543
11WCI 5303269545
11PNL-B/S-RH-WHITE
12SCREW-LEVELING
13316067902 Frigidaire Oven Rack
14AINSUL – OVEN BACK (NON-ILLUSTRATED)
14BINSULATION, OVEN WRAPPER
14BTTM-OVEN
15B316064600 Frigidaire Oven Support
15ACOVER-VENT
155303284616 Frigidaire Range Bulb Clip Thermostat
17WCI 5303270160
183203010 Frigidaire Clip
