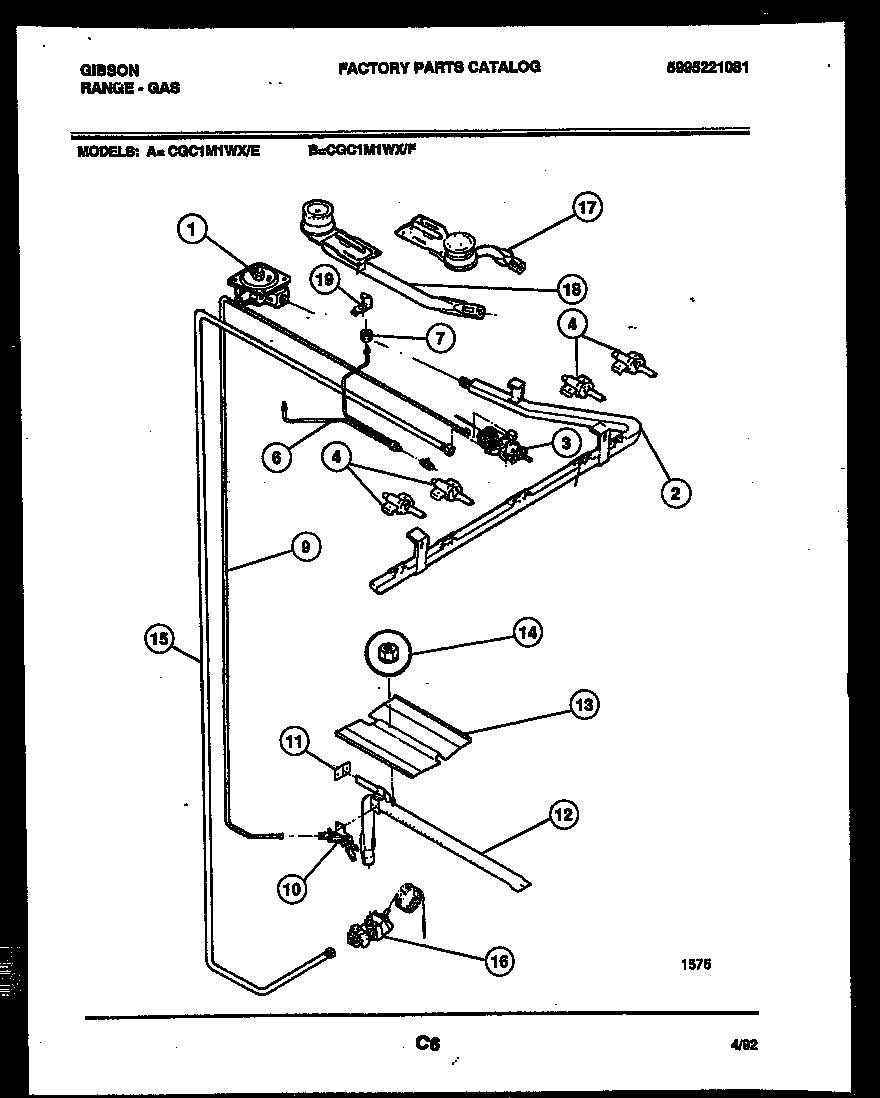

CGC1M1WXE 06 – BURNER PARTS

Products

PositionProduct
*57228SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED)
1WCI 5303016997
2WCI 5303280588
3THERMOSTAT
4A316048200 Frigidaire Oven Screw
4WCI 5303280578
6TUBING-TOP PILOT, DUAL
7CAP-TOP PILOT, (2)
9Tubing`thermo/pilot `3/16 ,alum
10WCI 5303280589
11WCI 3018603
12WCI 5303280585
13WCI 3203265
145303013272 Frigidaire Oven Nut
15TUBE - ALUM THERMO/SAFETY W/ FIT
16WCI 5303280593
175304506427 Frigidaire Oven Range Surface Burner (White)
185304506426 Frigidaire Oven Top Rear Burner
19SHIELD-PILOT, STAINLESS STEEL, (2)
