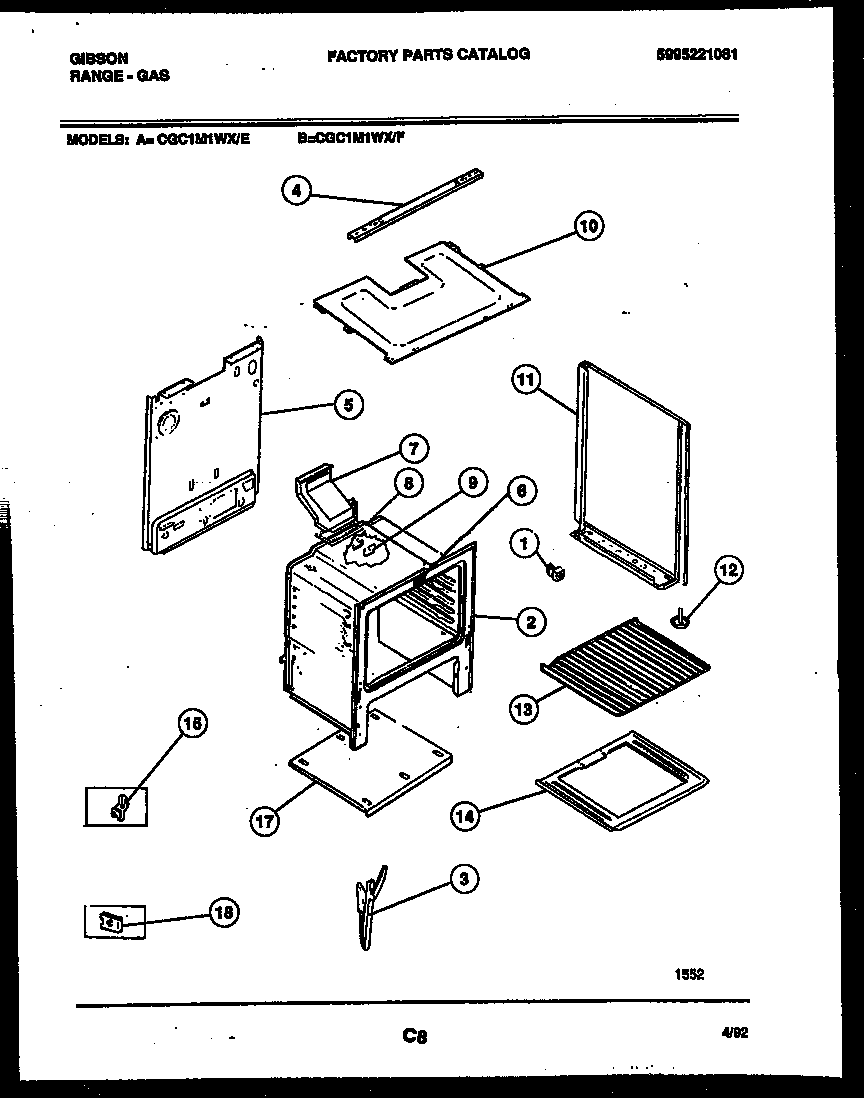

CGC1M1WXF 07 – BODY PARTS

Products

Position	Product
*57233	3051218 Frigidaire Oven Plate
*57233	SHIELD-FLUE, (NON-ILLUSTRATED)
*57233	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	Hinge,oven door ,(2)
4	WCI 3203394
5	WCI 3203082
6	COVER-OVEN FRONT
7	316204402 Frigidaire Oven Flue
8	316542102 Frigidaire Flue Gasket
9	COVER-IGNITOR
10	BURNER BOX BOTTOM
11	WCI 5303269545
11	WCI 5303269543
11	PNL-B/S-RH-WHITE
11	PNL-B/S-LH-WHITE
12	SCREW-LEVELING
13	316067902 Frigidaire Oven Rack
14B	INSULATION, OVEN WRAPPER
14A	INSUL - OVEN BACK (NON-ILLUSTRATED)
14	BTTM-OVEN
15A	COVER-VENT
15B	316064600 Frigidaire Oven Support
15	WCI 5303280586
17	WCI 5303270160
18	3203010 Frigidaire Clip
