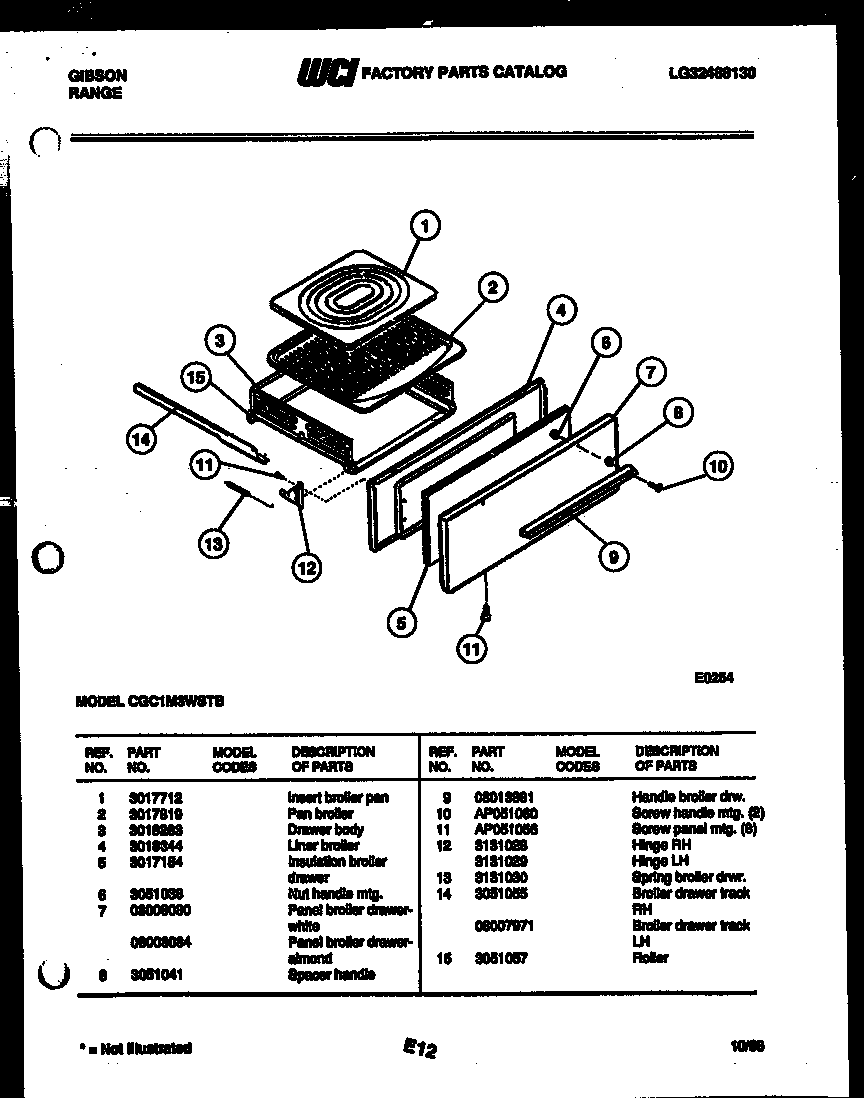

CGC1M3WSTB 03 – BROILER DRAWER PARTS

CGC1M3WSTB 03 – BROILER DRAWER PARTS

Written by

in

CGC1M3WSTB 03 – BROILER DRAWER PARTS

Products

PositionProduct
1BROILER GRID
2WCI 3017819
35304504568 Frigidaire Drawer Assembly
4WCI 3018344
5WCI 3017184
65303013272 Frigidaire Oven Nut
7WCI 08008084
7WCI 08008080
8SPACER HANDLE (2)
9WCI 08013881
105303292012 Frigidaire Oven Screw
11WCI AP051056
12HINGE – RH
12AHINGE – LH
13SPRING (2)
14TRACK RIGHT HAND
14ATRACK – BROILER LH
15WCI 3051057
