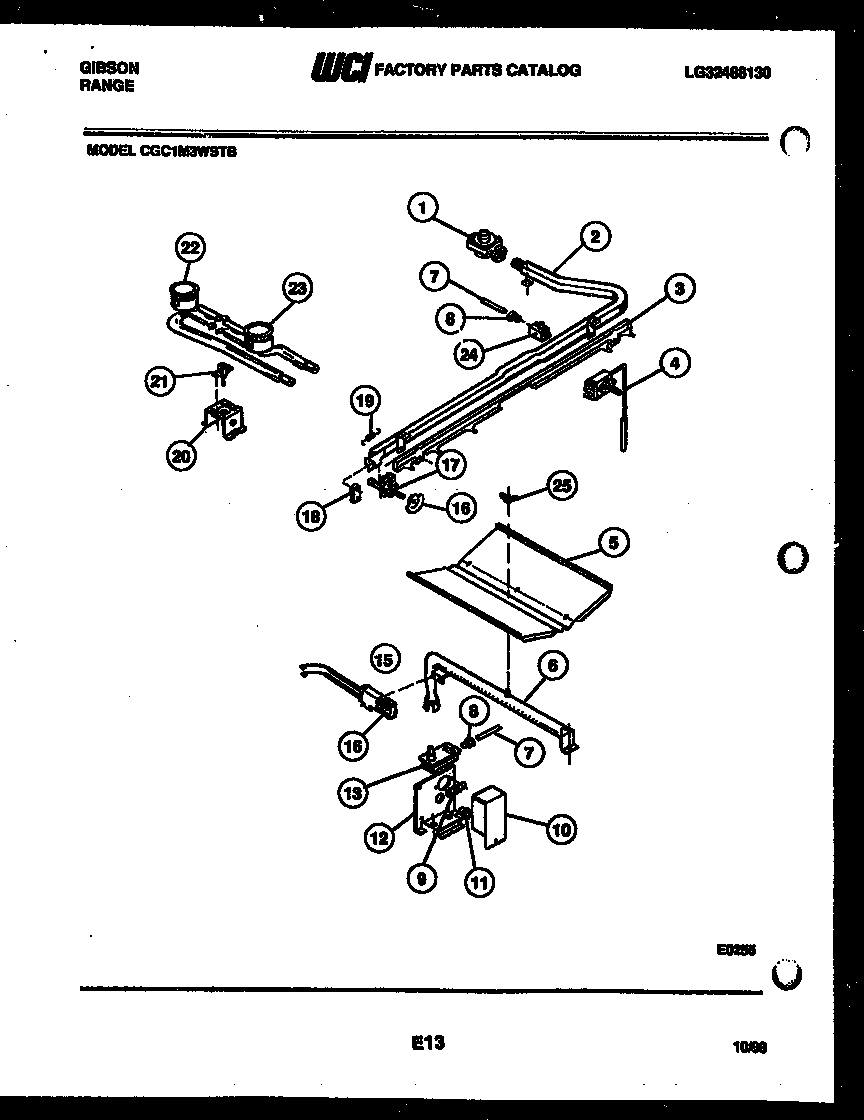

CGC1M3WSTB 04 – BURNER PARTS

Products

Position	Product
1	5308007974 Frigidaire Pressure Regulator
2	WCI 08013906
3	SLIDE BAR
4A	CLIP CAPILLARY (2)
4	WCI AP367066
5	BAFFLE-OVEN BURNER
6	BURNER
7	TUBING-OVEN SPLY 3/8
8	BUT – 3/8 LOXIT
9	TERMINAL BLOCK
10	WCI A3213000
11	WCI AP074001
12	SUPPORT-OVEN SAFETY VALVE
13	WCI AP385181
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	CAM TOP BURNER VALVE
17	VALVE – TOP BURNER (4)
18	WCI AP351123
19	WCI 3131096
20	SUPPORT – TOP BURNER
21	IGNITER 36“
22	BURNER-REAR TOP
23	BURNER-FRONT TOP
24	WCI 3131099
25	WING NUT
