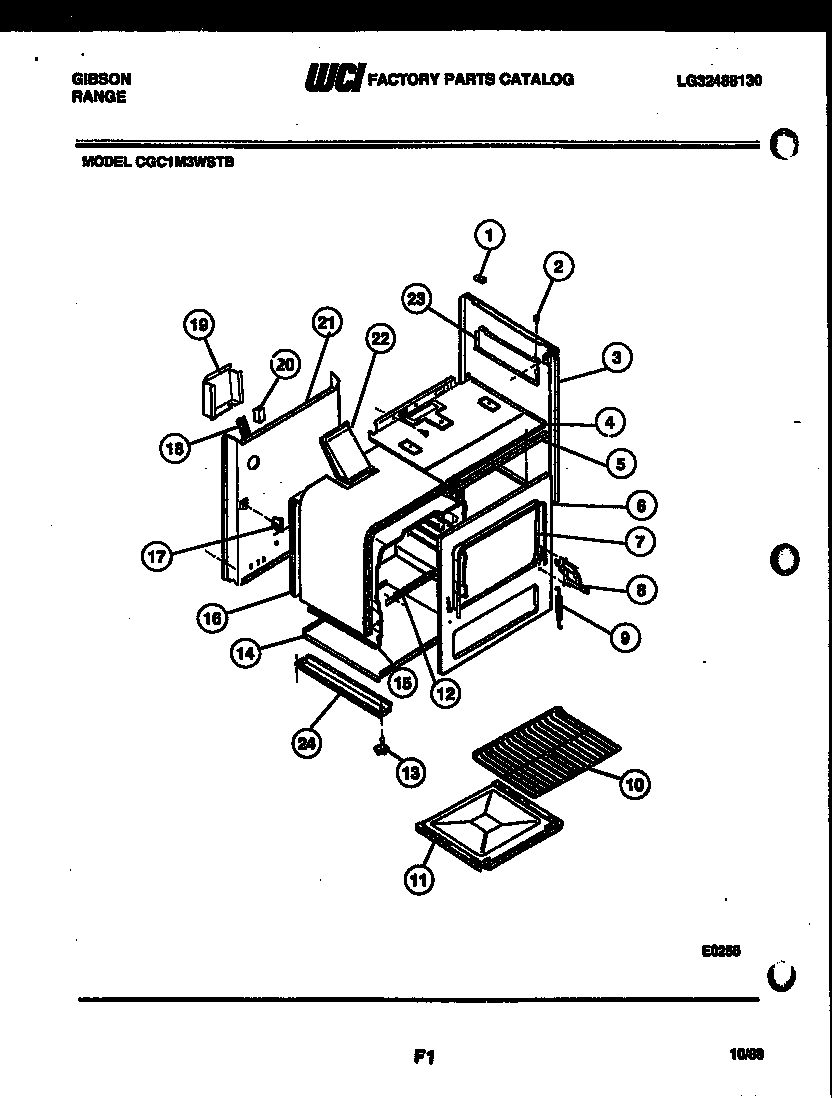

CGC1M3WSTB 05 – BODY PARTS

CGC1M3WSTB 05 – BODY PARTS

Written by

in

CGC1M3WSTB 05 – BODY PARTS

Products

PositionProduct
*11648BRACKET-INSTALLATION (2)
*11648CLIP BACKSPLASH CORNER
1GROMMET MAIN TOP
2WCI AP172002
3PNL. BODYSIDE-ALMOND
3PANEL-BODYSIDE (WHITE) (2)
4WCI 3017174
5SUPPORT CONTROL PNL
6WCI 3017790
7WCI AP326052
8318348801 Frigidaire Oven Left Side Door Hinge
8ACAM-DOOR RIGHT HAND
9SPRING (2)
10RACK-OVEN
11WCI 3018282
12SUPPORT-OVEN BOTTOM
13WCI 3051080
14BOTTOM – OVEN
15OVEN LINER-SIDE LH
15LINER – TOP
15AWCI 3018995
15AOVEN LINER-SIDE RH
16WCI AP207065
16AWCI AP207068
17SUPPORT-REAR OVN (2)
18CHANNEL – MAIN BACK WIRE
19COVER, MODULE
205303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
21VENT BOX
22WCI 3017173
23WCI 3131053
23AWCI 3131054
24BASE RAIL
