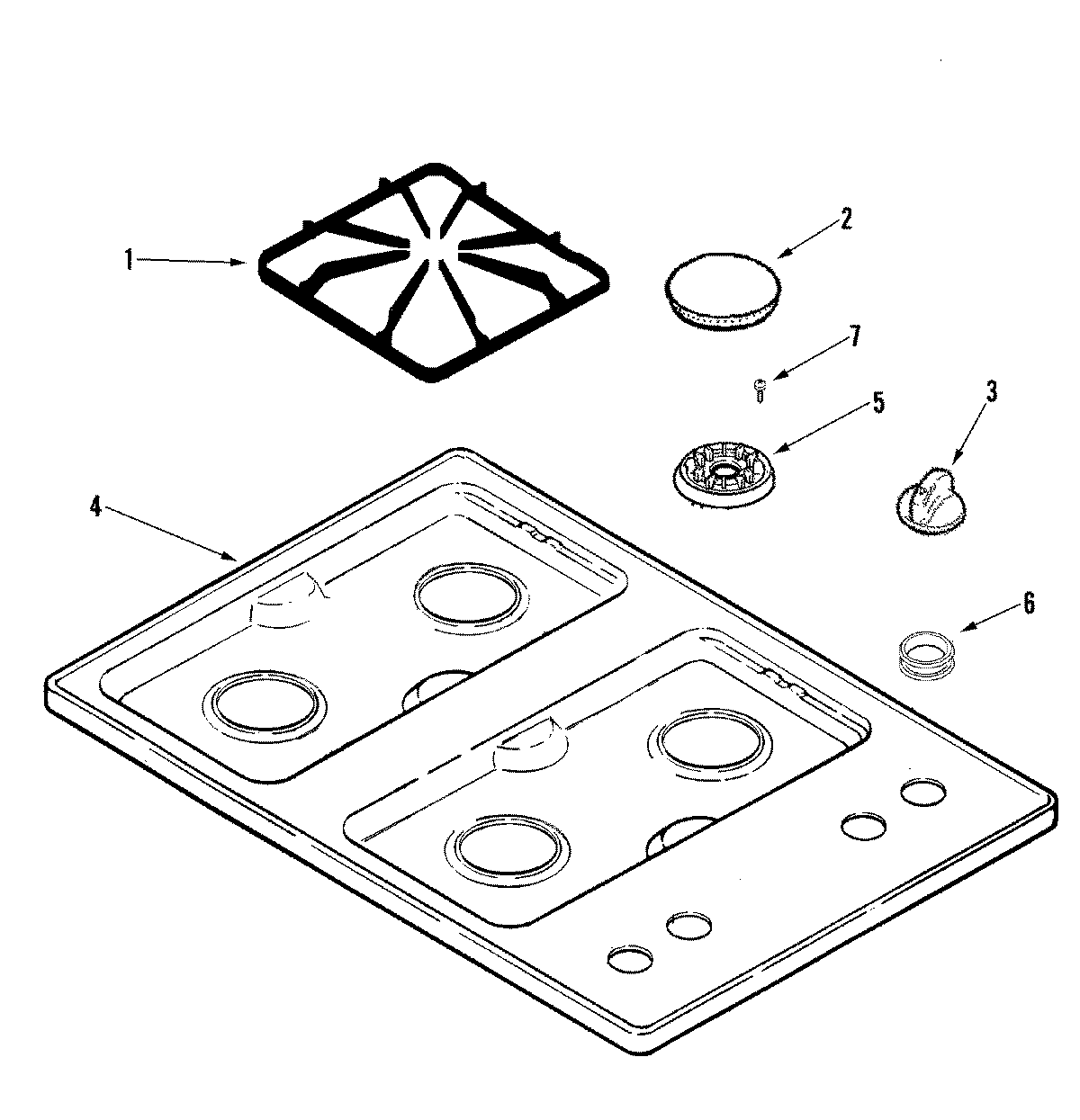

CGC2430ADB 03 – TOP ASSEMBLY

Written by

Products

Position	Product
NI	MAY 8111P472-60
NI	MAY 74007599
1	WP7518P464-60 Whirlpool Burner Grate
2	MAY 74007706
3	WP7733P381-60 Whirlpool Knob
4	Cover, Plunger
5	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
6	WP74007705 Whirlpool Grommet
7	WP3368921 Whirlpool Screw
