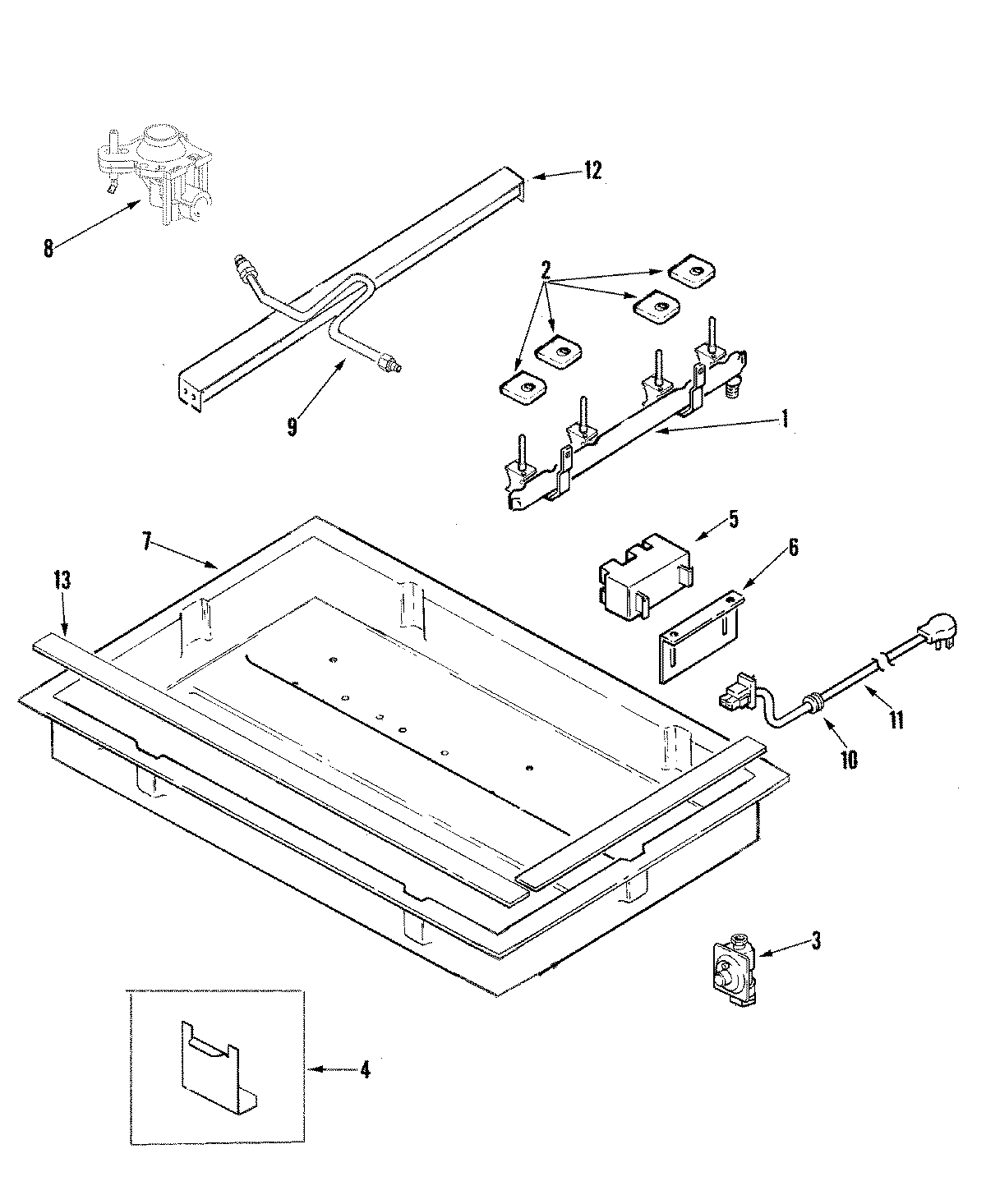

CGC2430ADC 01 – BODY

CGC2430ADC 01 – BODY

Written by

in

CGC2430ADC 01 – BODY

Products

PositionProduct
1MAY 74001380
1Pipe, Manifold (Includes Valves)
1MAY 74007963
2WP74007696 Whirlpool Switch
3W11170853 Whirlpool Regulator Assembly
4WP3801F935-51 Whirlpool Mounting Bracket
58215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
6MAY 74004501
6MAY 7101P059-60
7MAY 74009422
7MAY 74007685
8WP74007691 Whirlpool Holder
8WP74007692 Whirlpool Holder
8WP8523793 Whirlpool Oven Surface Igniter
9MAY 74007694
9MAY 74007695
10BUSHING, SNAP
11SCREW, GROUND (GRN)
11MAY 74007689
12SCREW No.10 X 2
12MAY 7118P018-60
12Bracket, Orifice Holder (2)
12MAY 74009251
13MAY 12400021
