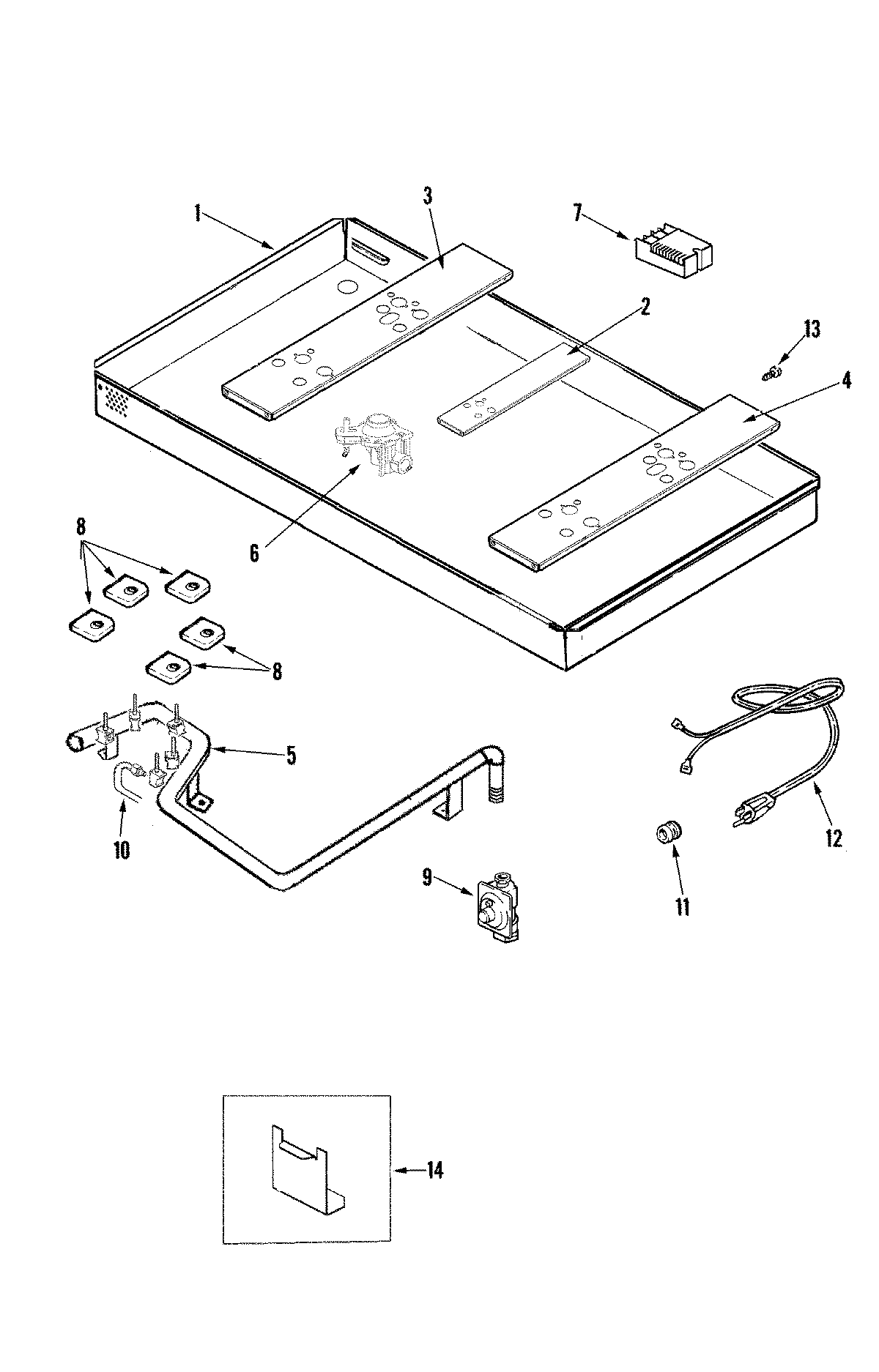

CGC2536ADC 01 – BODY

Products

PositionProduct
1MAY 74007919
2Bracket, Center Orifice Holder
4Bracket, Orifice Holder (2)
5MAY 74001380
5MAY 74007920
6WP74007691 Whirlpool Holder
6WP7527P028-60 Whirlpool Dishwasher Orifice Holder
6WP7527P026-60 Whirlpool Orifice Holder
6WP8523793 Whirlpool Oven Surface Igniter
78215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
7MAY 74004282
8WP74007806 Whirlpool Switch Wire
9W11087445 Whirlpool Pressure Regulator
10Tubing, Gas (Right Rear)
10Tubing, Gas (Right Front)
10Tubing, Gas (Center)
10Tubing, Gas (Left Rear)
10Tubing, Gas (Left Front)
11MAY 550707
12MAY 74007817
13WP90767 Whirlpool Screw
14SCREW No.10 X 2
14WP3801F935-51 Whirlpool Mounting Bracket
